Hot-selling and scarce SST25VF040B-50-4C-S2AF FLASH Memory IC 4Mbit SPI 50 MHz 8-SOIC spot stock

Product Descriptions

The 25 series Serial Flash family features a four-wire,SPI-compatible interface that allows for a low pin-countpackage which occupies less board space and ultimately lowers total system costs .The SST25VF040Bdevices are enhanced with improved operating frequency and even lower power consumption .SST25VF040B SPI serial Flash memories are manufactured with proprietary, high-performance CMOSSuperFlash®technology.The split-gate cell design andthick-oxide tunneling injector attain better reliability andmanufacturability compared with alternate approaches .

SST25VF040B devices significantly improve performance and reliability,while lowering power consumption .The devices write (Program or Erase)with a singlepower supply of 2 .7V-3 .6V for SST25VF040B .The totalenergy consumed is a function of the applied voltage,current,and time of application .Since for any givenvoltage range,the SuperFlash technology uses lesscurrent to program and has a shorter erase time,thetotal energy consumed during any erase or programoperation is less than alternative Flash memory technologies .

Product Features

• Single Voltage Read and Write Operations:

- 2.7V-3 .6V

• Serial Interface Architecture:

- SPI Compatible:Mode 0 and Mode 3

• High-Speed Clock Frequency:

- Up to 50 MHz

• Superior Reliability:

- Endurance:100,000 Cycles (typical)

- Greater than 100 years Data Retention

• Low-Power Consumption:

- Active Read Current:10 mA (typical)

- Standby Current:5 µA (typical)

• Flexible Erase Capability:

- Uniform 4-Kbyte sectors

- Uniform 32-Kbyte overlay blocks

- Uniform 64-Kbyte overlay blocks

• Fast Erase and Byte Program:

- Chip Erase Time:35 ms (typical)

- Sector/Block Erase Time:18 ms (typical)

- Byte Program Time:7 µs (typical)

•Auto Address Increment (AAI)Programming:

- Decrease total chip programming time over Byte Program operations

• End of Write Detection:

- Software polling the BUSY bit in STATUS Register

- Busy Status readout on SO pin in AAI Mode

• Hold Pin (HOLD#):

- Suspends a serial sequence to the memory without deselecting the device

•Write Protection (WP#):

- Enables/Disables the Lock-Down function of the STATUS register

• Software Write Protection:

- Write protection through Block Protection bits in STATUS register

• Temperature Range:

- Commercial:0°C to +70°C

- Industrial:-40°C to +85°C

•All devices are RoHS compliant

Product Specification

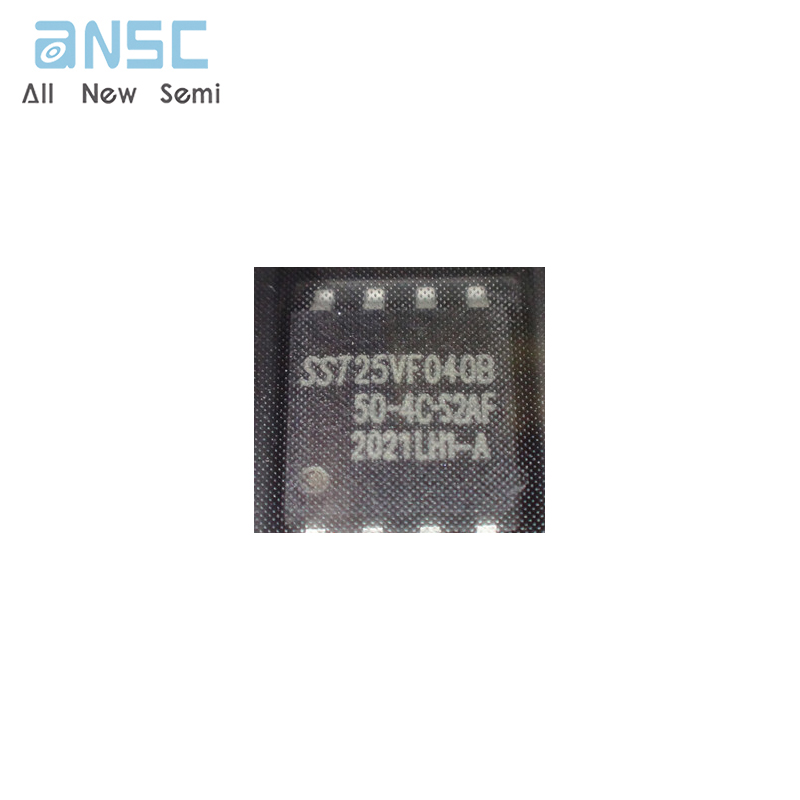

Product Photos

For more product information, please download the PDF
