Hot-selling and scarce AT45DB642D-TU FLASH Memory IC 64Mbit SPI 66 MHz 28-TSOP spot stock

Product Descriptions

AT45DB642D is a 2.7V, dual-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. AT45DB642D supports RapidS^™  serial interface and Rapid8^™  8-bit interface. RapidS serial interface is SPI compatible for frequencies up to 66MHz. The dual-interface allows a dedicated serial interface to be connected to a DSP and a dedicated 8-bit interface to be connected to a microcontroller or vice versa. However, the use of either interface is purely optional. Its 69,206,016-bits of memory are organized as 8,192 pages of 1,024-bytes (binary page size) or 1,056-bytes (standard DataFlash^® page size) each. In addition to the main memory, the AT45DB642D also contains two SRAM buffers of 1,024-(binary buffer size) bytes/1,056-bytes (standard DataFlash buffer size) each. The buffers allow receiving of data while a page in the main Memory is being reprogrammed, as well as writing a continuous data stream. EEPROM emulation (bit or byte alterability) is easily handled with a self-contained three step read-modify-write operation. Unlike conventional Flash memories that are accessed randomly with multiple address lines and a parallel interface, the DataFlash uses either a RapidS serial interface or a 8-bit Rapid8 interface to sequentially access its data. The simple sequential access dramatically reduces active pin count, facilitates hardware layout, increases system reliability, minimizes switching noise, and reduces package size. The device is optimized for use in many commercial and industrial applications where high-density, low-pin count, low-voltage and low-power are essential.

Product Features

•  Single 2.7V - 3.6V Supply

•  Dual-interface Architecture

– RapidS Serial Interface: 66MHz Maximum Clock Frequency

SPI Compatible Modes 0 and 3

– Rapid8 8-bit Interface: 50MHz Maximum Clock Frequency

•  User Configurable Page Size

– 1024-Bytes per Page

– 1056-Bytes per Page

– Page Size Can Be Factory Pre-configured for 1024-Bytes

•  Page Program Operation

– Intelligent Programming Operation

– 8192 Pages (1024-/1056-Bytes/Page) Main Memory

•  Flexible Erase Options

– Page Erase (1-Kbyte)

– Block Erase (8-Kbytes)

– Sector Erase (256-Kbytes)

– Chip Erase (64Mbits)

•  Two SRAM Data Buffers (1024-/1056-Bytes)

– Allows Receiving of Data while Reprogramming the Flash Array

•  Continuous Read Capability through Entire Array

– Ideal for Code Shadowing Applications

•  Low-power Dissipation

– 10mA Active Read Current Typical – Serial Interface

– 10mA Active Read Current Typical – 8-bit Interface

– 25µA Standby Current Typical

– 15µA Deep Power Down Typical

•  Hardware and Software Data Protection Features

– Individual Sector

•  Permanent Sector Lockdown for Secure Code and Data Storage

– Individual Sector

•  Security: 128-byte Security Register

– 64-byte User Programmable Space

– Unique 64-byte Device Identifier

•  JEDEC Standard Manufacturer and Device ID Read

•  100,000 Program/Erase Cycles Per Page Minimum

•  Data Retention – 20 Years

•  Green (Pb/Halide-free/RoHS Compliant) Packaging Options

•  Temperature Range

– Industrial: -40℃ to +85℃

Product Specifications

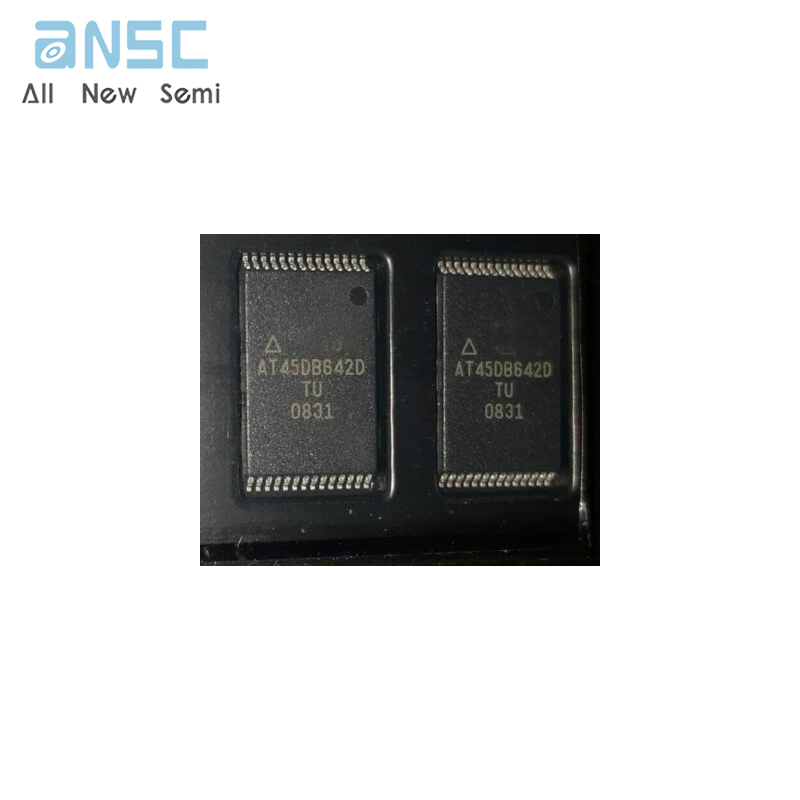

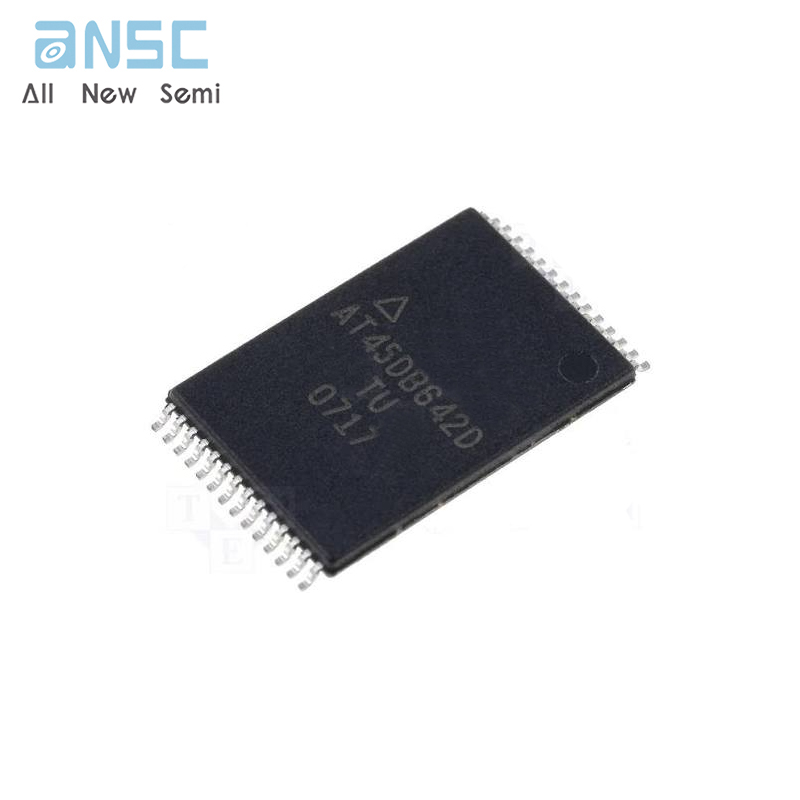

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
