Hot-selling and scarce K4T1G084QQ-HCF7 DDR2 SDRAM BGA spot stock

Manufacturer Product Number
K4T1G084QQ-HCF7
Description

K4T1G084QQ-HCF7 DDR2 SDRAM BGA spot stock

Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Descriptions

The 1Gb DDR2 SDRAM is organized as a 32Mbit x 4 I/Os x8banks,16Mbit x 8 I/Os x 8banks or 8Mbit x 16 I/Os x 8 banks device.This synchronous device achieves high speed doubledata-rate transfer rates of up to 800Mb/sec/pin (DDR2-800)for general applications.

The chip is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency,write latency = read latency - 1,Off-Chip Driver(OCD) impedance adjustment and On Die Termination.

All of the control and address inputs are synchronized with a pair of externally supplied differential clocks.Inputs are latched at the crosspoint of differential clocks (CK rising and CK falling).All I/Os are synchronized with a pair of bidirectional strobes (DQS and DQS)in a source synchronous fashion.The address bus is used to convey row,column,and bank address information in a RAS/ CAS multiplexing style.For example,1Gb(x8)device receive 14/10/3 addressing.

The 1Gb DDR2 device operates with a single 1.8V ±0 .1V power supply and 1.8V ±0 .1V VDDQ.

The 1Gb DDR2 device is available in 60ball FBGAs(x4/x8)and in84ball FBGAs(x16).

Product Features

• JEDEC standard 1.8V ±0 .1V Power Supply

• VDDQ =1.8V ±0.1V

• 333MHz fCK for 667Mb/sec/pin,400MHz fCK for 800Mb/sec/pin

• 8 Banks

• Posted CAS

• Programmable CAS Latency:3,4,5,6

• Programmable Additive Latency:0,1,2,3,4,5

• Write Latency(WL)=Read Latency(RL)-1

• Burst Length:4 ,8(Interleave/nibble sequential)

• Programmable Sequential /Interleave Burst Mode

• Bi-directional Differential Data-Strobe (Single-ended data strobe is an optional feature)

• Off-Chip Driver(OCD)Impedance Adjustment

• On Die Termination

• Special Function Support

-PASR(Partial Array Self Refresh)

-50ohm ODT

-High Temperature Self-Refresh rate enable

• Average Refresh Period 7.8us at lower than T CASE 85°C,3.9us at 85°C <T CASE <95 °C

• All of Lead-free products are compliant for RoHS

Product Photos

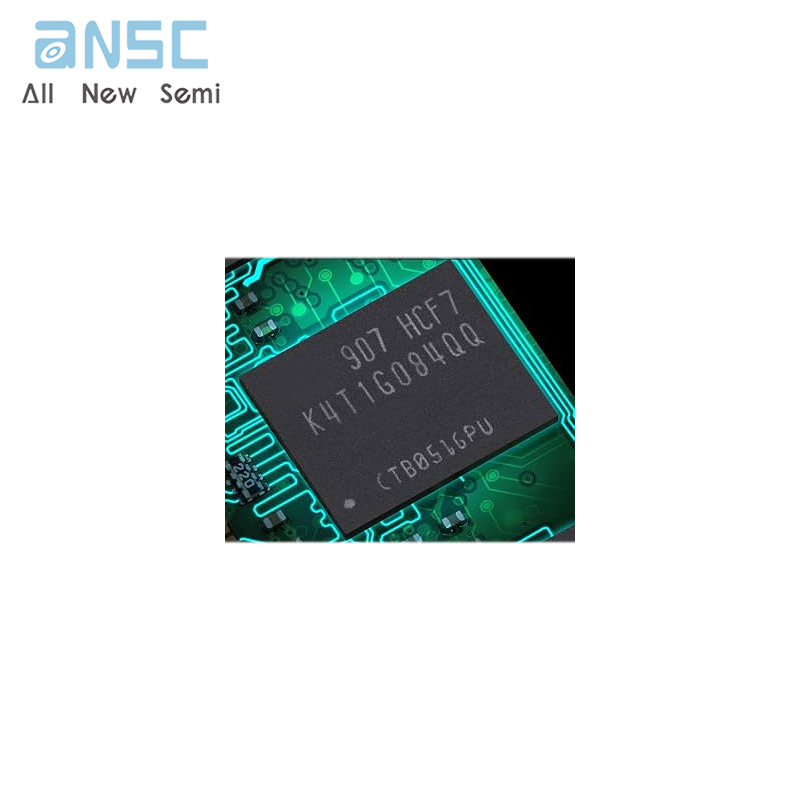

K4T1G084QQ-HCF7

For more product information, please download the PDF
