Hot-selling and scarce AT24C256C-SSHL-T I²C-Compatible (Two-Wire) Serial EEPROM 256‑Kbit SOP8 spot stock
Manufacturer Product Number
AT24C256C-SSHL-T
Description
AT24C256C-SSHL-T I²C-Compatible (Two-Wire) Serial EEPROM 256‑Kbit SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Low-Voltage and Standard-Voltage Operation:
– VCC = 1.7V to 5.5V
• Internally Organized as 32,768 x 8 (256K)
• Industrial Temperature Range: -40°C to +85°C
• I2C-Compatible (Two-Wire) Serial Interface:
– 100 kHz Standard mode, 1.7V to 5.5V
– 400 kHz Fast mode, 1.7V to 5.5V
– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
• Schmitt Triggers, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• Write-Protect Pin for Full Array Hardware Data Protection
• Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
• 64-Byte Page Write Mode:
– Partial page writes allowed
• Random and Sequential Read Modes
• Self-Timed Write Cycle within 5 ms Maximum
• ESD Protection >4,000V
• High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
• Green Package Options (Lead-free/Halide-free/RoHS compliant)
• Die Sale Options: Wafer Form and Bumped Wafers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AT24C256C-SSHL-T |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 256Kbit |
| Memory Organization | 32K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 1 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 550 ns |
| Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AT24C256C |

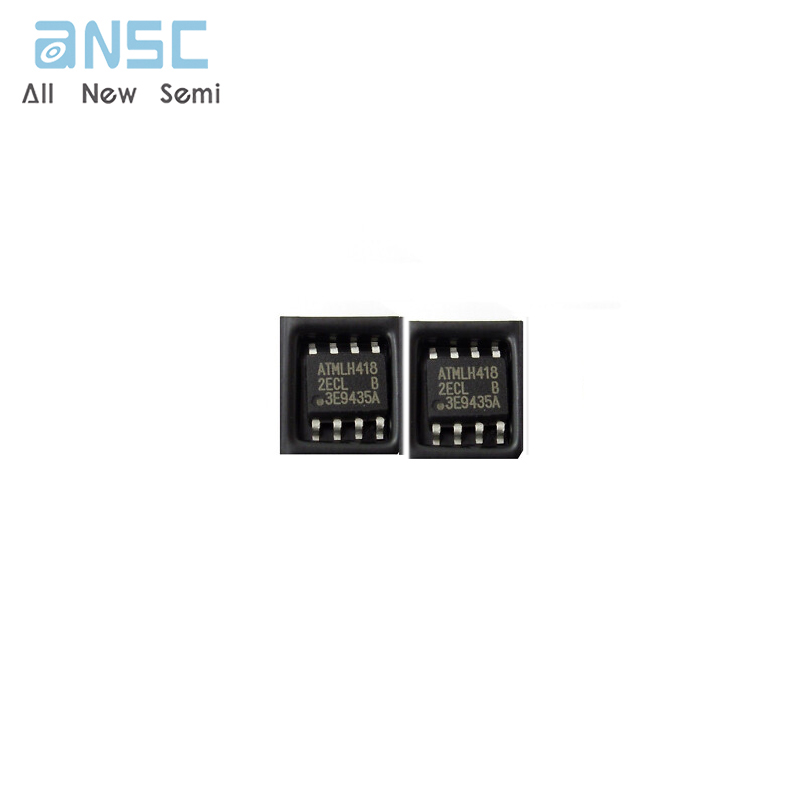

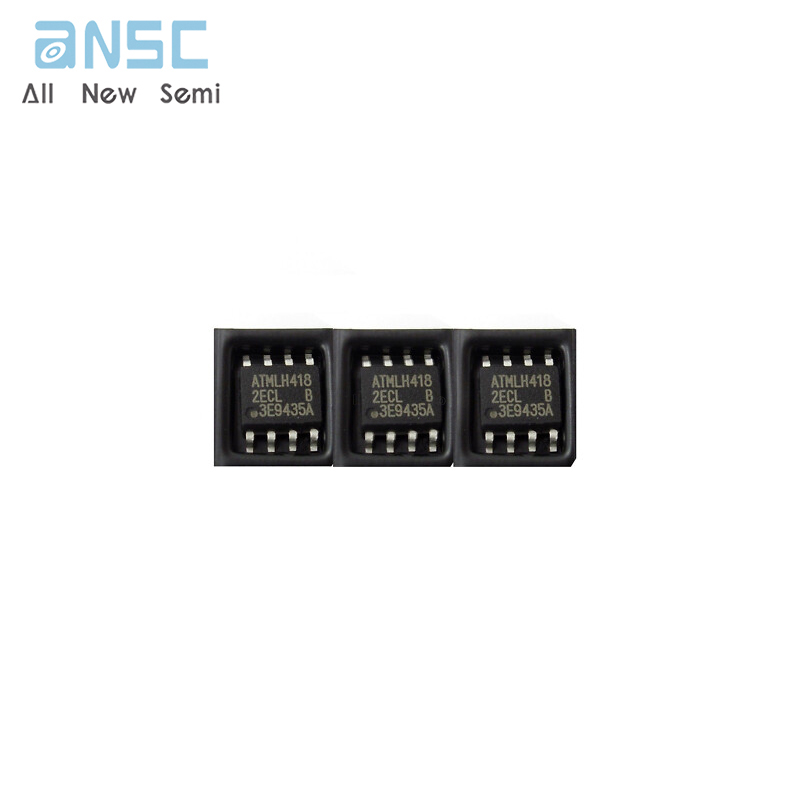

Product Photos
For more product information, please download the PDF
