Hot-selling and scarce AT24C01A-10TI-2.7 EEPROM Memory IC 1Kbit I2C 400 kHz 900 ns 8-TSSOP spot stock

Product Descriptions

The AT24C01A/02/04/08/16 provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as128/256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C01A/02/04/08/16 is available in space-saving 8-pin PDIP,(AT24C01A/02/04/08/16), 8-lead TSSOP (AT24C01A/02/04/08/16) and 8-lead JEDEC SOIC (AT24C01A/02/04/08/16) packages and is accessed via a 2-wire serial interface. In addition,the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to5.5V), 2.5V (2 .5V to 5 .5V) and 1.8V (1 .8V to 5 .5V) versions.

Product Features

•  Low-voltage and Standard-voltage Operation

– 5.0 (VCC = 4.5V to 5.5V)

– 2.7 (VCC = 2.7V to 5.5V)

– 2.5 (VCC = 2.5V to 5.5V)

– 1.8 (VCC = 1.8V to 5.5V)

•  Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K),1024 x 8 (8K) or 2048 x 8 (16K)

•  2-wire Serial Interface

•  Schmitt Trigger, Filtered Inputs for Noise Suppression

•  Bi-directional Data Transfer Protocol

•  100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility

•  Write Protect Pin for Hardware Data Protection

•  8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

•  Partial Page Writes are Allowed

•  Self-timed Write Cycle (10 ms max)

•  High-reliability

– Endurance: 1 Million Write Cycles

– Data Retention: 100 Years

•  Automotive Grade and Extended Temperature Devices Available

•  8-lead JEDEC SOIC, 8-pin PDIP and 8-lead TSSOP Packages

Product Specification

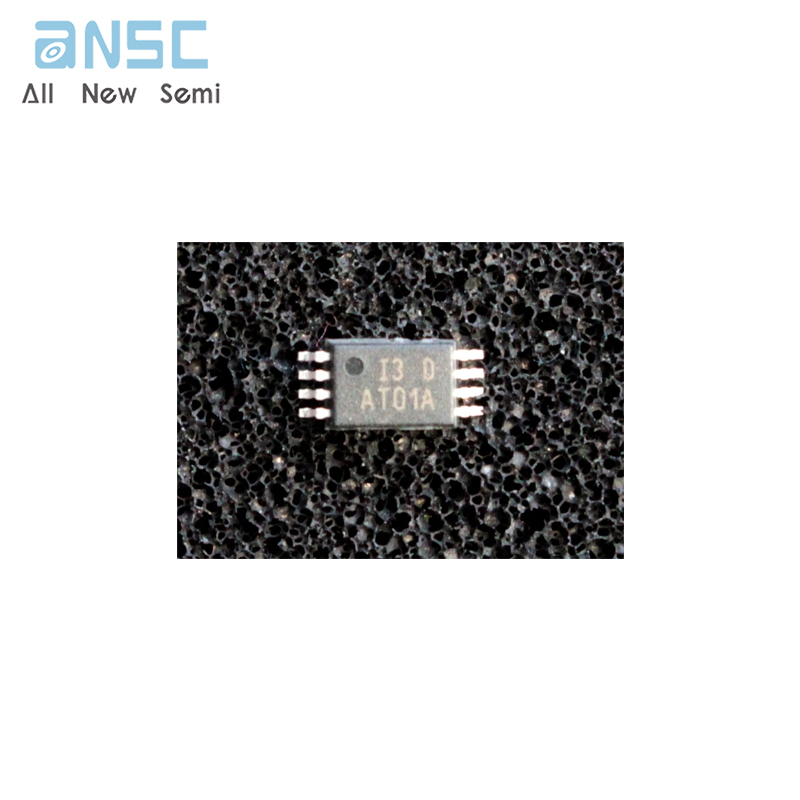

Product Photos

For more product information, please download the PDF
