Hot-selling and scarce CY62128EV30LL-45ZXI Asynchronous Memory IC 1Mbit Parallel 45 ns 32-TSOP I spot stock

Product Descriptions

The CY62128EV30 is a high performance CMOS static RAM module organized as 128K words by 8-bits.This device features advanced circuit design to provide ultra low active current.This is ideal for providing More Battery Life™(MoBL®)in portable applications such as cellular telephones.The device also has an automatic power-down feature that significantly reduces power consumption when addresses are not toggling.Placing the device in standby mode reduces power consumption by more than 99 percent when deselected (CE ₁ HIGH or CE 2 LOW).The eight input and output pins (I/O 0 through I/O 7)are placed in a high impedance state when the device is deselected (CE ₁ HIGH or CE 2 LOW),the outputs are disabled (OE HIGH),or a write operation is in progress (CE ₁ LOW and CE 2 HIGH and WE LOW).

To write to the device,take chip enable (CE ₁ LOW and CE 2 HIGH)and write enable (WE)inputs LOW.Data on the eight I/O pins is then written into the location specified on the address pin(A 0through A 16).

To read from the device,take chip enable (CE ₁ LOW and CE 2 HIGH)and output enable (OE)LOW while forcing write enable(WE)HIGH.Under these conditions,the contents of the memory location specified by the address pins appear on the I/O pins.

Product Features

■ Very high speed:45 ns

■ Temperature ranges:

❐ Industrial:–40 °C to +85 °C

■ Wide voltage range:2.2 V to 3.6 V

■ Pin compatible with CY62128DV30

■ Ultra low standby power

❐ Typical standby current:1 µA

❐ Maximum standby current:4 µA

■ Ultra low active power

❐ Typical active current:1.3 mA at f =1 MHz

■ Easy memory expansion with CE 1 ,CE2,and OE features

■ Automatic power-down when deselected

■ Complementary metal oxide semiconductor (CMOS) for optimum speed and power

■ Offered in Pb-free 32-pin small outline integrated circuit (SOIC),32-pin thin small outline package (TSOP)Type I,and 32-pin shrunk thin small outline package (STSOP)packages

Product Specification

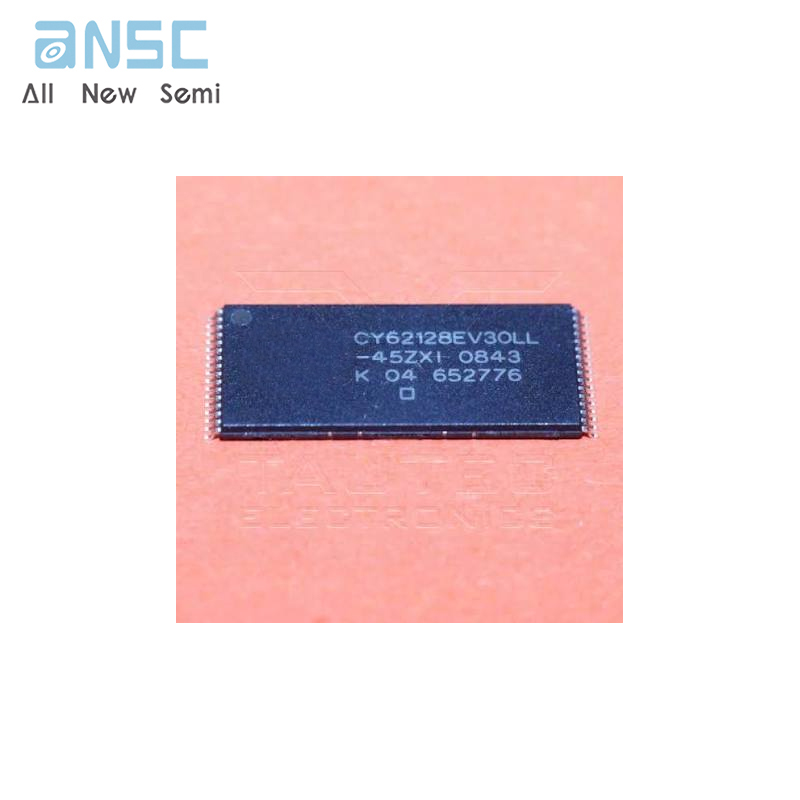

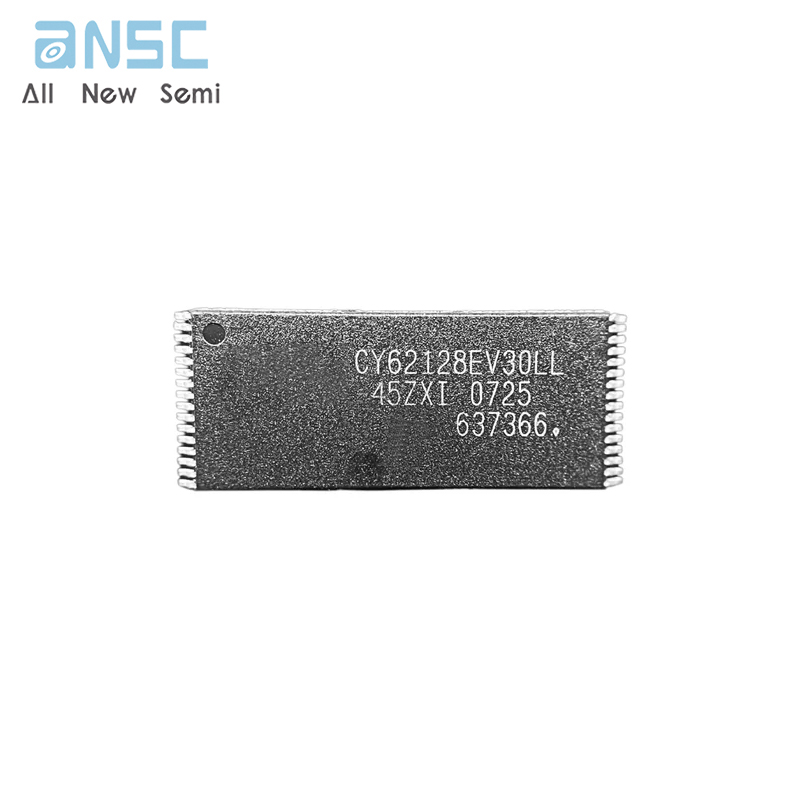

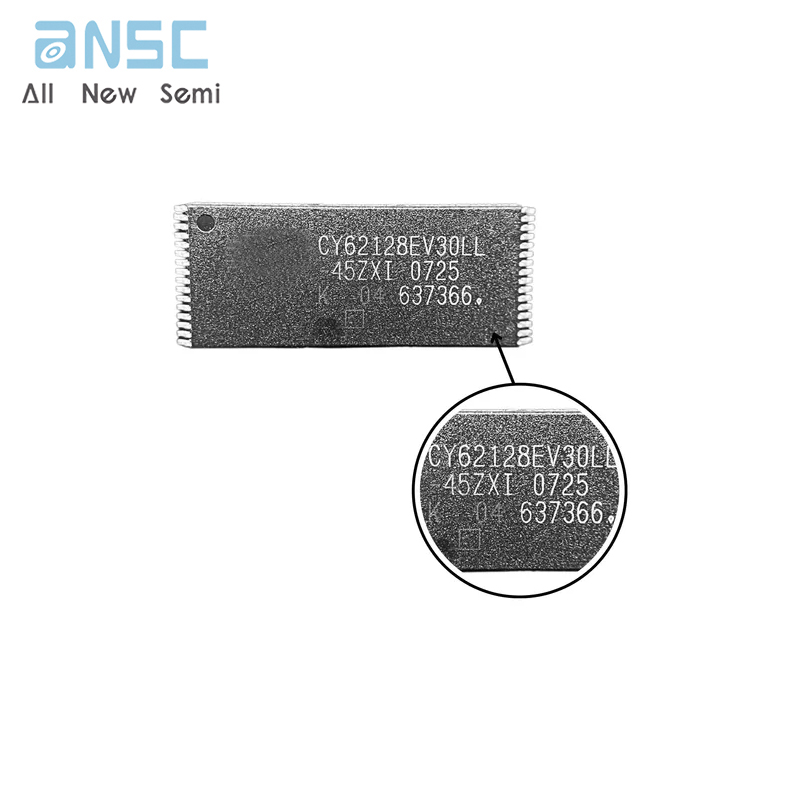

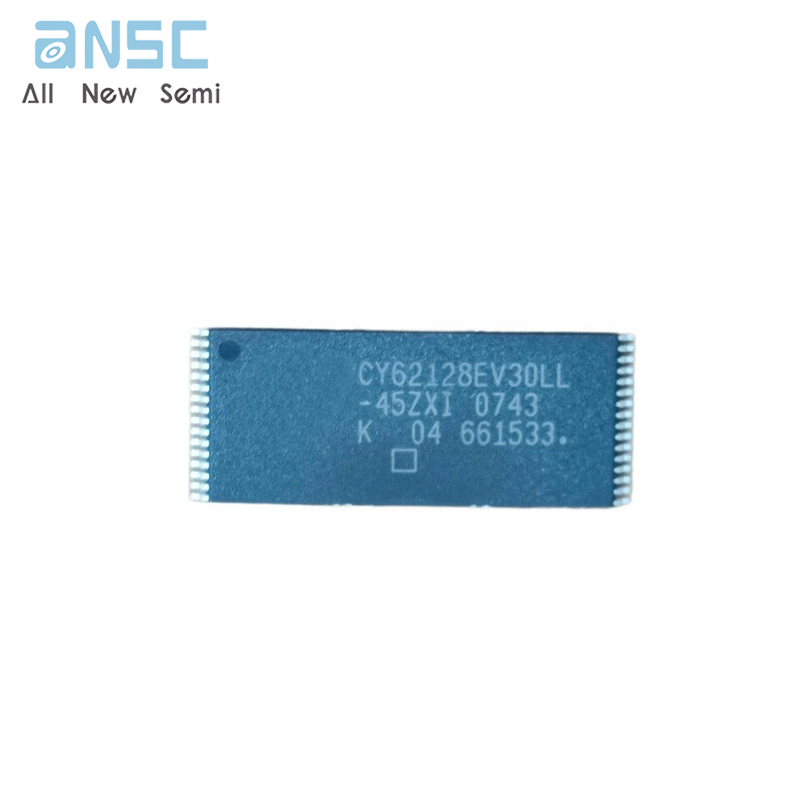

Product Photos

For more product information, please download the PDF
