Hot-selling and scarce PC28F128P33B85 Embedded Memory IC BGA64 spot stock

Product Features

 High performance:

— 85 ns initial access

— 52MHz with zero wait states, 17ns clock-to data output synchronous-burst read mode

— 25 ns asynchronous-page read mode

— 4-, 8 -, 16-, and continuous-word burst mode

— Buffered Enhanced Factory Programming (BEFP) at 5 µs/byte (Typ)

— 3.0 V buffered programming at 7 µs/byte (Typ)

Architecture:

— Multi-Level Cell Technology: Highest Density at Lowest Cost

— Asymmetrically-blocked architecture

— Four 32-KByte parameter blocks: top or bottom configuration

— 128-KByte main blocks

Voltage and Power:

— V CC (core) voltage: 2.3 V – 3.6 V

—— VSCtCaQnd(I/byOc)uvorrelatg::52µ.3A (VTy–p 3).frV64-Mbit

— 4-Word synchronous read current:

16 mA (Typ) at 52MHz

Quality and Reliability

— Operating temperature: –40 °C to +85 °C

— Minimum 100,000 erase cycles per block

— ETOX™ VIII process technology

Security:

— One-Time Programmable Registers:

— 64 unique factory device identifier bits

— 2112 user-programmable OTP bits

— Selectable OTP space in Main Array:

— Four pre-defined 128-KByte blocks (top or bottom configuration).

— Up to Full Array OTP Lockout

— Absolute write protection:VPP = VSS

— Power-transition erase/program lockout

— Individual zero-latency block locking

— Individual block lock-down capability

Software:

— 20 µs (Typ) program suspend

— 20 µs (Typ) erase suspend

— Intel® Flash Data Integrator optimized

— Basic Command Set and Extended Command Set compatible

— Common Flash Interface capable

Density and Packaging

— 56-Lead TSOP package (64, 128, 256, 512 -Mbit)

— 64-Ball Intel® Easy BGA package (64, 128, 256, 512-Mbit)

— Intel® QUAD+ SCSP (64, 128, 256, 512-Mbit)

— 16-bit wide data bus

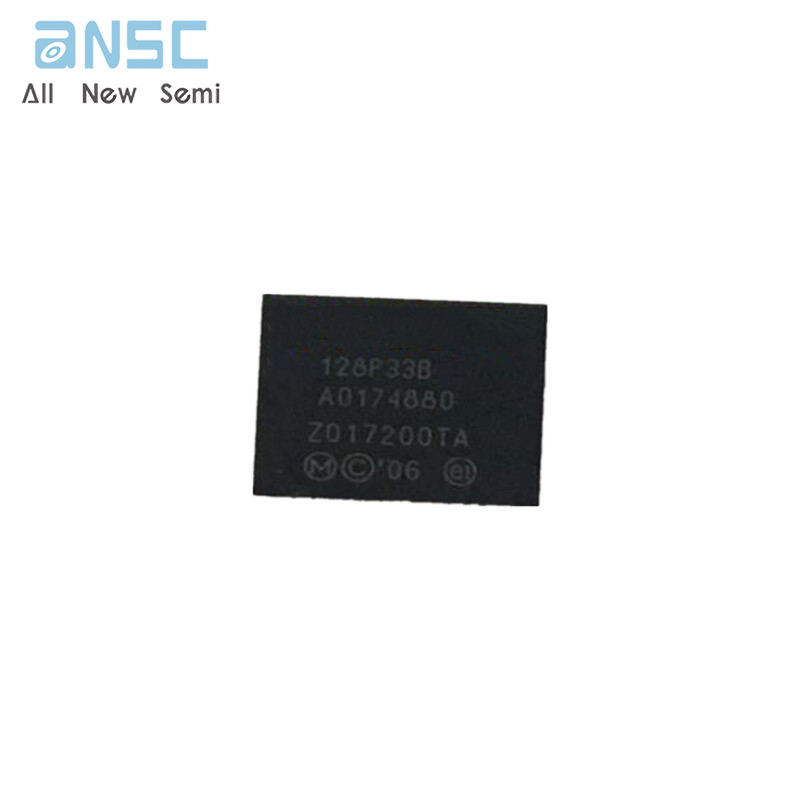

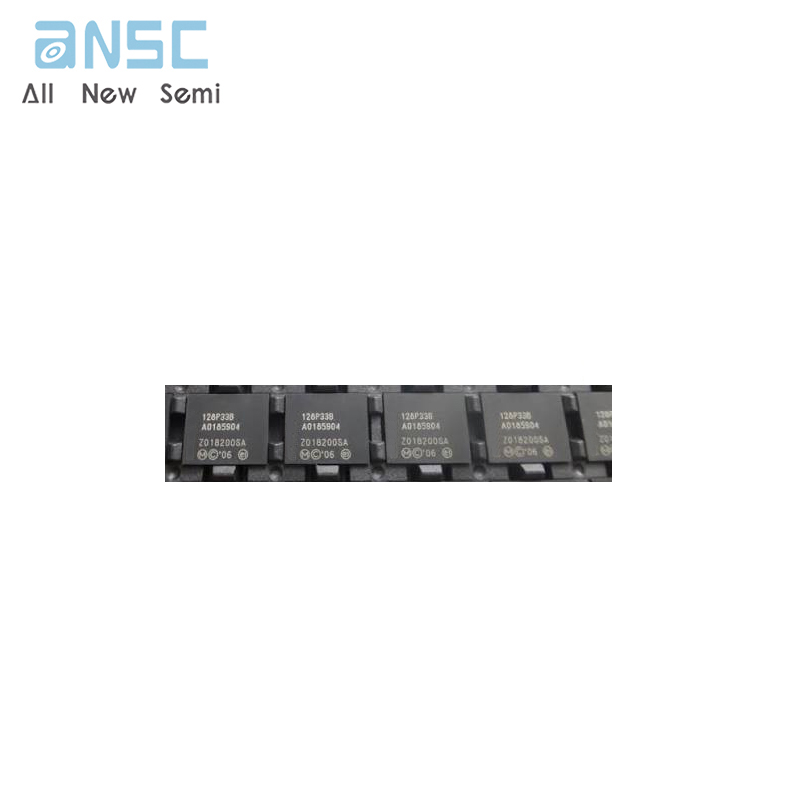

Product Photo

For more product information, please download the PDF
