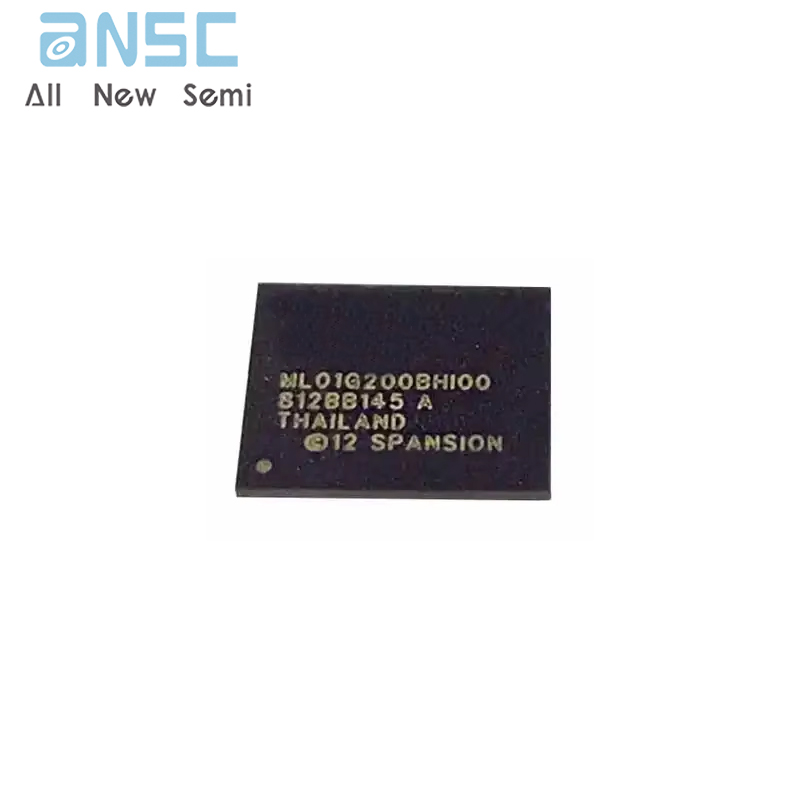

Hot-selling and scarce S34ML01G200BHI000 FLASH - NAND Memory IC 1Gbit Parallel 63-BGA
Manufacturer Product Number
S34ML01G200BHI000
Description
S34ML01G200BHI000 FLASH - NAND Memory IC 1Gbit Parallel 63-BGA
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Density
– 1 Gbit / 2 Gbit / 4 Gbit
Architecture
– Input / Output Bus Width: 8-bits / 16-bits
– Page Size:
– x8:
1 Gbit: (2048 + 64) bytes; 64-byte spare area
2 Gbit / 4 Gbit: (2048 + 128) bytes; 128-byte spare area
– x16:
1 Gbit: (1024 + 32) words; 32-word spare area
2 Gbit / 4 Gbit (1024 + 64) words; 64-word spare area
– Block Size: 64 Pages
– x8:
1 Gbit: 128k + 4k bytes
2 Gbit / 4 Gbit: 128k + 8k bytes
– x16
1 Gbit: 64k + 2k words
2 Gbit / 4 Gbit: 64k + 4k words
– Plane Size
– x8
1 Gbit: 1024 Blocks per Plane or (128M + 4M) bytes
2 Gbit: 1024 Blocks per Plane or (128M + 8M) bytes
4 Gbit: 2048 Blocks per Plane or (256M + 16M) bytes
– x16
1 Gbit: 1024 Blocks per Plane or (64M + 2M) words
2 Gbit: 1024 Blocks per Plane or (64M + 4M) words
4 Gbit: 2048 Blocks per Plane or (128M + 8M) words
– Device Size
– 1 Gbit: 1 Plane per Device or 128 Mbyte
– 2 Gbit: 2 Planes per Device or 256 Mbyte
– 4 Gbit: 2 Planes per Device or 512 Mbyte
NAND Flash Interface
– Open NAND Flash Interface (ONFI) 1.0 compliant
– Address, Data, and Commands multiplexed
Supply Voltage
– 3.3V device: VCC = 2.7V ~ 3.6V
Security
– One Time Programmable (OTP) area
– Serial number (unique ID) (Contact factory for support)
– Hardware program/erase disabled during power transition
Additional Features
– 2 Gb and 4 Gb parts support Multiplane Program and Erase commands
– Supports Copy Back Program
– 2 Gb and 4 Gb parts support Multiplane Copy Back Program
– Supports Read Cache
Electronic Signature
– Manufacturer ID: 01h
Operating Temperature
– Industrial: -40°C to 85°C
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-S34ML01G200BHI000 |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Series | ML-2 |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NAND |
| Memory Size | 1Gbit |
| Memory Organization | 128M x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 25ns |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 63-VFBGA |
| Supplier Device Package | 63-BGA (11x9) |
| Base Product Number | S34ML01 |
Product Photos
For more product information, please download the PDF
