Hot-selling and scarce SST25VF016B-75-4I-S2AF-T FLASH Memory IC 16Mbit SPI 80MHz 8-SOIC spot stock

Product Features

• Single Voltage Read and Write Operations

– 2.7-3.6V

• Serial Interface Architecture

– SPI Compatible: Mode 0 and Mode 3

• High Speed Clock Frequency

– Up to 80 MHz

• Superior Reliability

– Endurance: 100,000 Cycles (typical)

– Greater than 100 years Data Retention

• Low Power Consumption:

– Active Read Current: 10 mA (typical)

– Standby Current: 5 µA (typical)

• Flexible Erase Capability

– Uniform 4 KByte sectors

– Uniform 32 KByte overlay blocks

– Uniform 64 KByte overlay blocks

• Fast Erase and Byte-Program:

– Chip-Erase Time: 35 ms (typical)

– Sector-/Block-Erase Time: 18 ms (typical)

– Byte-Program Time: 7 µs (typical)

• Auto Address Increment (AAI) Programming

– Decrease total chip programming time over Byte-Program operations

• End-of-Write Detection

– Software polling the BUSY bit in Status Register

– Busy Status readout on SO pin in AAI Mode

• Hold Pin (HOLD#)

– Suspends a serial sequence to the memory without deselecting the device

• Write Protection (WP#)

– Enables/Disables the Lock-Down function of the status register

• Software Write Protection

– Write protection through Block-Protection bits in status register

• Temperature Range

– Commercial: 0°C to +70°C

– Industrial: -40°C to +85°C

• Packages Available

– 8-lead SOIC (200 mils)

– 8-contact WSON (6mm x 5mm)

• All devices are RoHS compliant

Product Specification

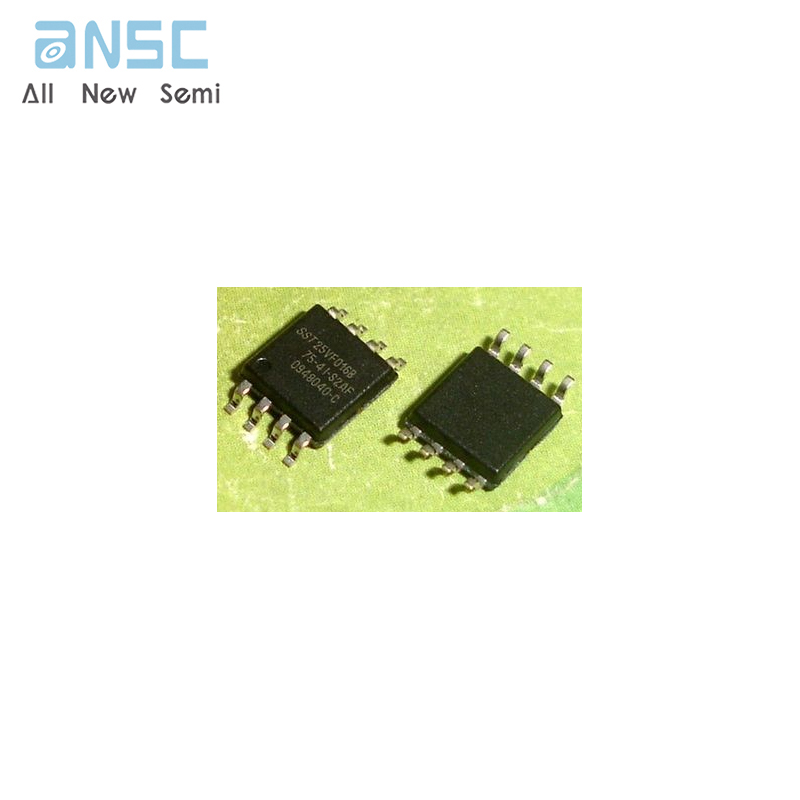

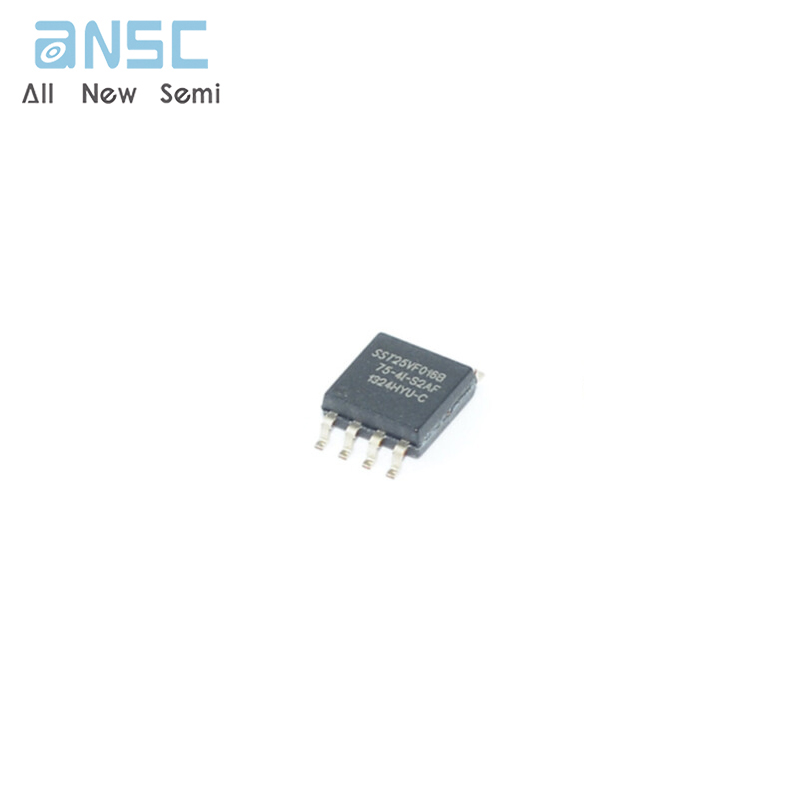

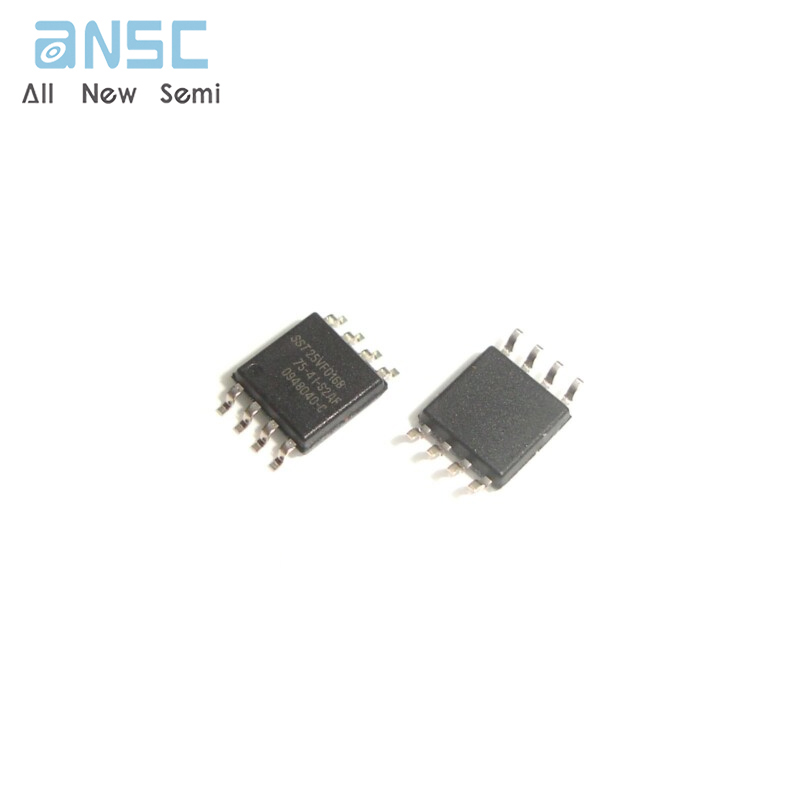

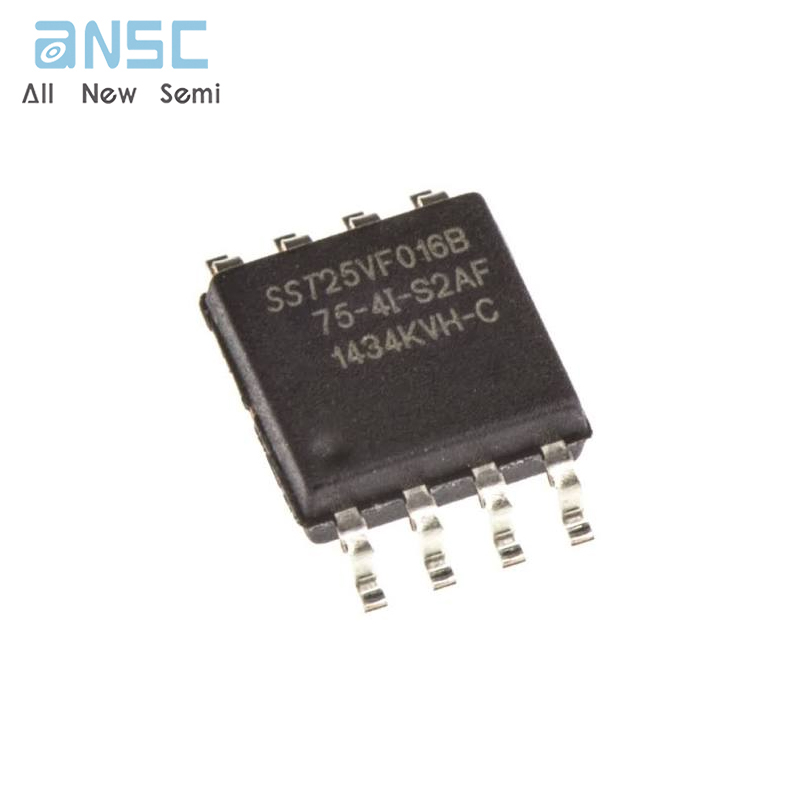

Product Photos

For more product information, please download the PDF
