Hot sale Original CY7C1049B-20VI Memory IC Standard SRAM 512KX8, 20ns CMOS PDSO36, 0.400 INCH, SOJ-36

Product Features

The CY7C1049B is a high-performance CMOS static RAM organized as 524,288 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers. Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O 0 through I/O 7) is then written into the location specified on the address pins (A0 through A18 ).

Reading from the device is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing Write Enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.

The eight input/output pins (I/O0 through I/O 7) are placed in a high-impedance state when the device is deselected (CE HIGH), the outputs are disabled (OE HIGH), or during a write operation (CE LOW, and WE LOW).

The CY7C1049B is available in a standard 400-mil-wide 36-pin SOJ package with center power and ground (revolu-tionary) pinout.

The CY7C1049B is a high-performance CMOS static RAM or-The CY7C1049B is a high-performance CMOS static RAM or-ganized as 524,288 words by 8 bits. Easy memory expansion

Product Applications

• High speed

— t AA = 12 ns

• Low active power

— 1320 mW (max.)

• Low CMOS standby power (Commercial L version)

— 2.75 mW (max.)

• 2.0V Data Retention (400 μW at 2.0V retention)

• Automatic power-down when deselected

• TTL-compatible inputs and outputs

• Easy memory expansion with CE and OE features

Specifications

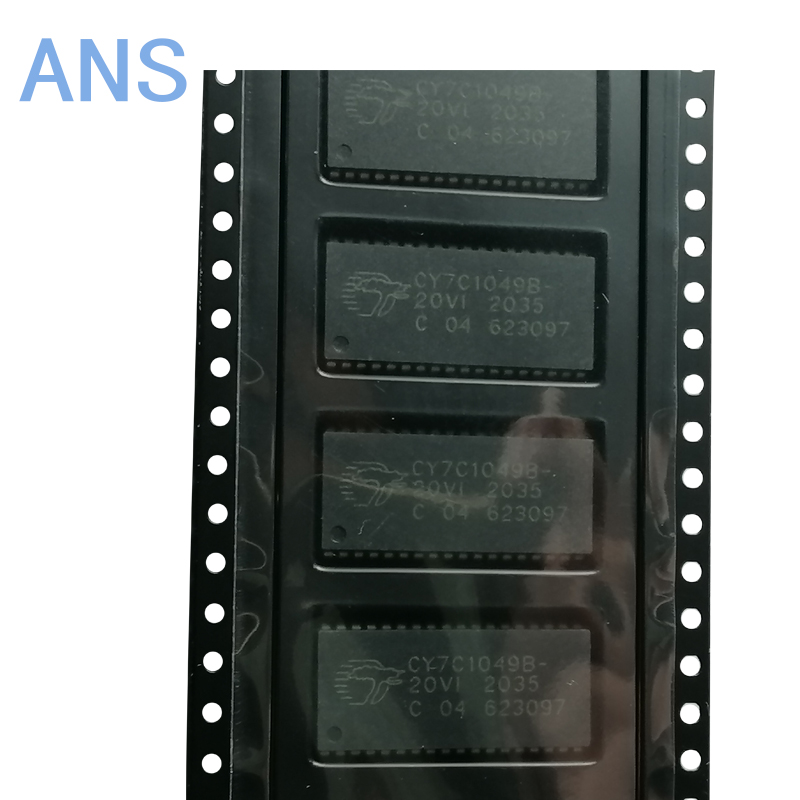

Actual product photos

​
