Hot-selling and scarce JS28F256P30TFE Micron Parallel NOR Flash Embedded Memory IC TSOP56 spot stock

​Product Features

• High performance

– 100ns initial access for Easy BGA

– 110ns initial access for TSOP

– 25ns 16-word asychronous page read mode

– 52 MHz (Easy BGA) with zero WAIT states and 17ns clock-to-data output synchronous burst read mode

– 4-, 8-, 16-, and continuous word options for burst mode

– Buffered enhanced factory programming (BEFP) at 2MB/s (TYP) using a 512 word buffer

– 1.8V buffered programming at 1.14MB/s (TYP) using a 512 word buffer

• Architecture

– MLC: highest density at lowest cost

– Asymmetrically blocked architecture

– Four 32-KB parameter blocks: top or bottom con figuration

– 128KB main blocks

– Blank check to verify an erased block

• Voltage and power

– VCC (core) voltage: 1.7V to 2.0V

– VCCQ (I/O) voltage: 1.7V to 3.6V

– Standy current: 65µA (TYP) for 256Mb

– 52 MHz continuous synchronous read current:

21mA (TYP), 24mA (MAX)

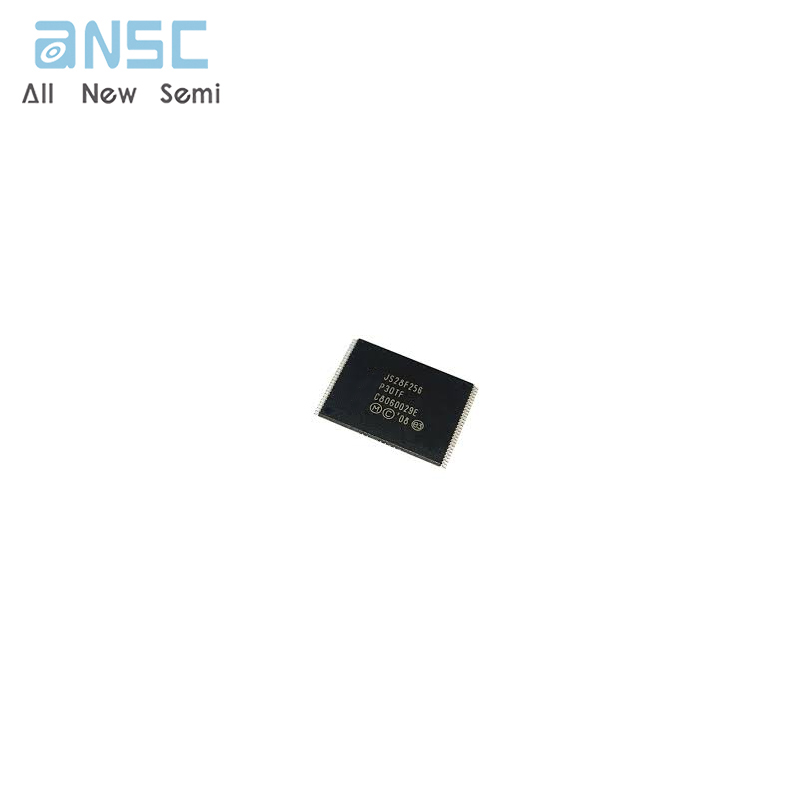

Product Photos

For more product information, please download the PDF
