Hot sale Original Am29F010-90JI Memory IC PLCC32 NOR Flash Parallel 5V 1M-bit 128K x 8 90ns 32-Pin PLCC
Manufacturer Product Number
Am29F010-90JI
Description
Original Am29F010-90JI Memory IC PLCC32 NOR Flash Parallel 5V 1M-bit 128K x 8 90ns 32-Pin PLCC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

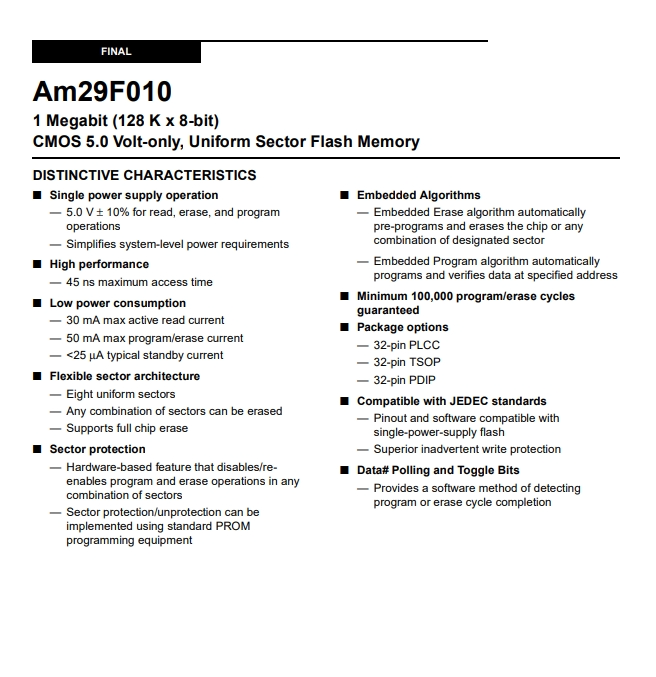

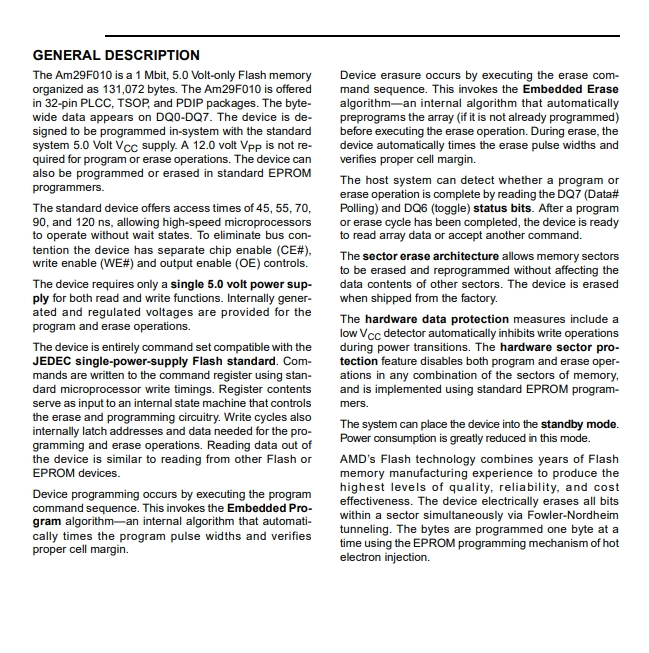

GENERAL DESCRIPTION The Am29F010 is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The Am29F010 is offered in 32-pin PLCC, TSOP, and PDIP packages. The bytewide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. DISTINCTIVE CHARACTERISTICS ■ Single power supply operation — 5.0 V ± 10% for read, erase, and program operations — Simplifies system-level power requirements ■ High performance — 45 ns maximum access time ■ Low power consumption — 30 mA max active read current — 50 mA max program/erase current — <25 µA typical standby current ■ Flexible sector architecture — Eight uniform sectors — Any combination of sectors can be erased — Supports full chip erase ■ Sector protection — Hardware-based feature that disables/reenables program and erase operations in any combination of sectors — Sector protection/unprotection can be implemented using standard PROM programming equipment ■ Embedded Algorithms — Embedded Erase algorithm automatically pre-programs and erases the chip or any combination of designated sector — Embedded Program algorithm automatically programs and verifies data at specified address ■ Minimum 100,000 program/erase cycles guaranteed ■ Package options — 32-pin PLCC — 32-pin TSOP — 32-pin PDIP ■ Compatible with JEDEC standards — Pinout and software compatible with single-power-supply flash — Superior inadvertent write protection ■ Data# Polling and Toggle Bits — Provides a software method of detecting program or erase cycle completion |

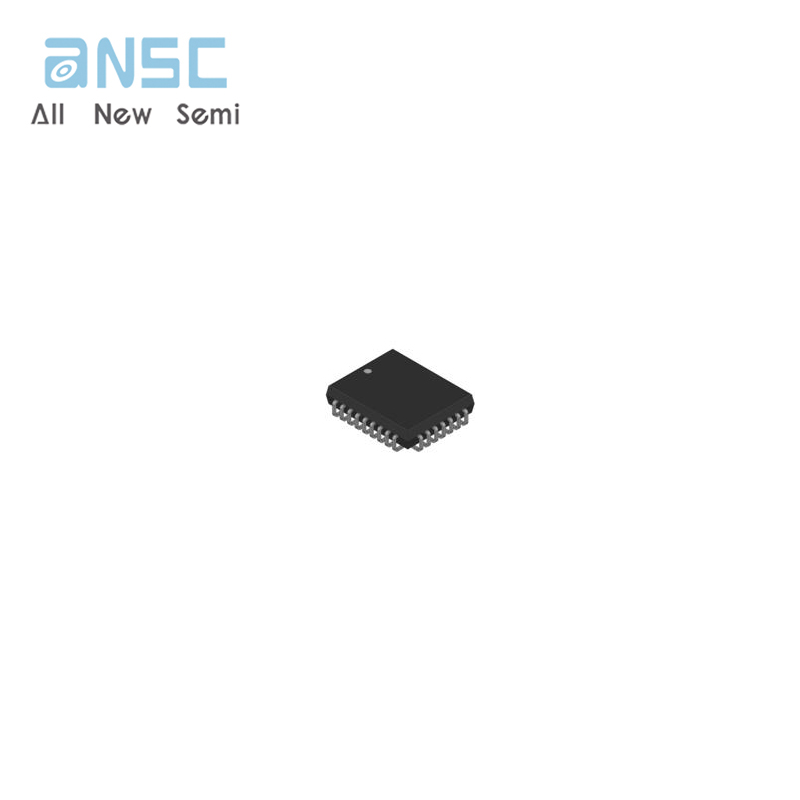

Actual image of the product

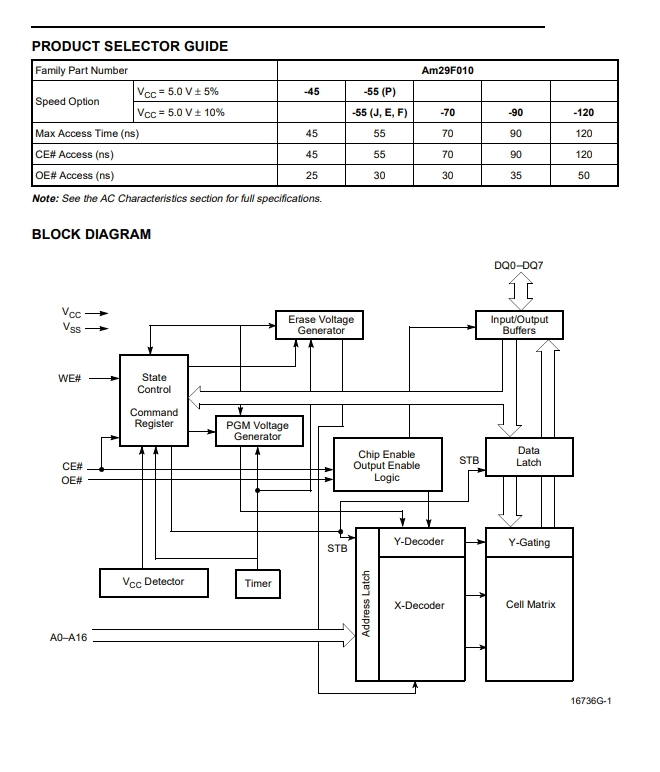

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
