Hot-selling and scarce AT24C08AN-10SU-1.8 2-Wire Serial EEPROM SOP8 spot stock

Product Descriptions

The AT24C01A/02/04/08A/16A provides 1024/2048/4096/8192/16384 bits of serialelectrically erasable and programmable read-only memory (EEPROM) organized as128/256/512/1024/2048 words of 8 bits each . The device is optimized for use in manyindustrial and commercial applications where low-power and low-voltage operationare essential .The AT24C01A/02/04/08A/16A is available in space-saving 8-lead PDIP,8-lead JEDEC SOIC, 8-lead MAP, 5-lead SOT23 (AT24C01A/AT24C02/AT24C04), 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial interface . In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1 .8V to

5.5V) versions.

Product Features

•  Low-voltage and Standard-voltage Operation

– 2.7 (VCC = 2.7V to 5.5V)

– 1.8 (VCC = 1.8V to 5.5V)

•  Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K),

1024 x 8 (8K) or 2048 x 8 (16K)

•  Two-wire Serial Interface

•  Schmitt Trigger, Filtered Inputs for Noise Suppression

•  Bidirectional Data Transfer Protocol

•  100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility

•  Write Protect Pin for Hardware Data Protection

•  8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

•  Partial Page Writes Allowed

•  Self-timed Write Cycle (5 ms max)

•  High-reliability

– Endurance: 1 Million Write Cycles

– Data Retention: 100 Years

•  Automotive Grade and Lead-free/Halogen-free Devices Available

•  8-lead PDIP, 8-lead JEDEC SOIC, 8-lead MAP, 5-lead SOT23,

8-lead TSSOP and 8-ball dBGA2 Packages

•  Die Sales: Wafer Form, Waffle Pack and Bumped Wafers

​

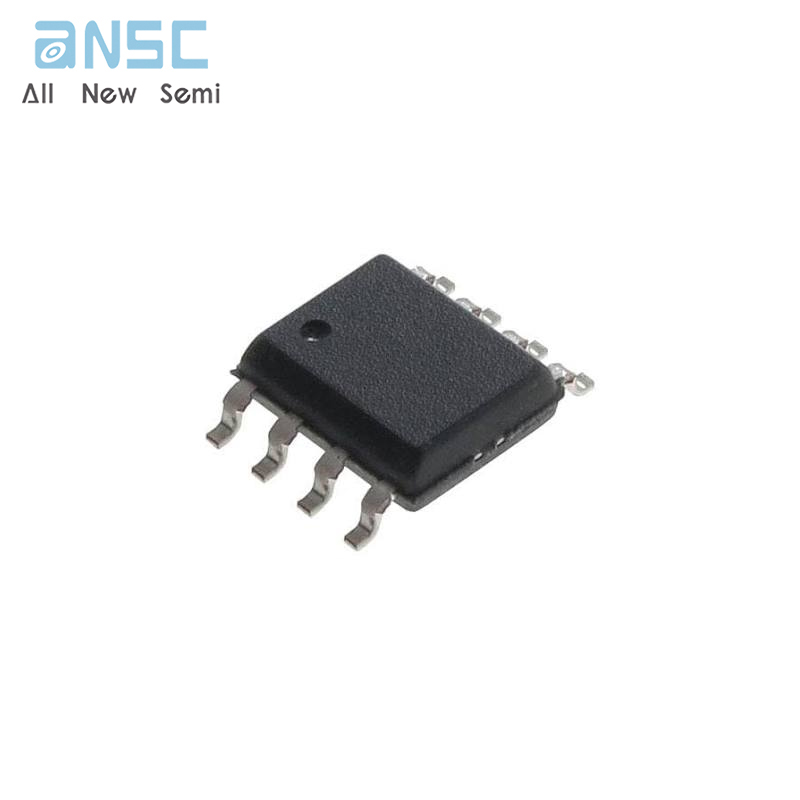

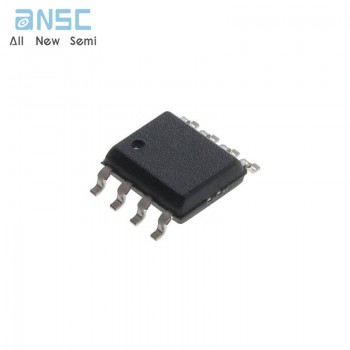

Product Photos

        For more product information, please download the PDF
