Product Descriptions

The EN25QH128A is a 128 Megabit (16,384 K-byte) Serial Flash memory, with enhanced write  protection mechanisms. The EN25QH128A supports the standard Serial Peripheral Interface (SPI), and  a high performance Dual/Quad output as well as Dual/Quad I/O using SPI pins: Serial Clock, Chip  Select, Serial DQ0(DI), DQ1(DO), DQ2(WP#) and DQ3(HOLD#). SPI clock frequencies of up to 104MHz  are supported allowing equivalent clock rates of 208MHz (104MHz x 2) for Dual Output and 320MHz  (80MHz x 4) for Quad Output when using the Dual/Quad I/O Fast Read instructions. The memory can  be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The EN25QH128A is designed to allow either single Sector/Block at a time or full chip erase operation.  The EN25QH128A can be configured to protect part of the memory as the software protected mode.  The device can sustain a minimum of 100K program/erase cycles on each sector or block.

Product Features

• Single power supply operation

- Full voltage range: 2.7-3.6 volt

• Serial Interface Architecture

- SPI Compatible: Mode 0 and Mode 3

• 128 M-bit Serial Flash

- 128 M-bit/16,384 K-byte/65,536 pages

- 256 bytes per programmable page

• Standard, Dual or Quad SPI

- Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#

- Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD#

- Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3

• High performance

- 104MHz clock rate for Standard SPI

- 104MHz clock rate for two data bits

- 80MHz clock rate for four data bits

• Burst Modes

- Continuous linear burst

- 8/16/32/64/128/256 linear burst with wrap around

• Low power consumption

- 12 mA typical active current

- 1 μA typical power down current

• Uniform Sector Architecture:

- 4096 sectors of 4-Kbyte

- 512 blocks of 32-Kbyte

- 256 blocks of 64-Kbyte

- Any sector or block can be erased individually

• Software and Hardware Write Protection:

- Write Protect all or portion of memory via software

- Enable/Disable protection with WP# pin

• High performance program/erase speed

- Page program time: 0.8ms typical

- Sector erase time: 50ms typical

- 32KB Block erase time 100ms typical

- 64KB Block erase time 200ms typical

- Chip erase time: 45 seconds typical

• Write Suspend and Write Resume

• Lockable 512 byte OTP security sector

• Support Serial Flash Discoverable Parameters (SFDP) signature

• Read Unique ID Number

• Minimum 100K endurance cycle

• Package Options

- 8 pins SOP 200mil body width

- 8 pins VSOP 200mil body width

- 8 contact VDFN (5x6mm)

- 8 contact VDFN (6x8mm)

- 8 pins PDIP

- 16 pins SOP 300mil body width

- 24 balls TFBGA (6x8mm)

- All Pb-free packages are compliant RoHS,Halogen-Free and REACH.

• Industrial temperature Range

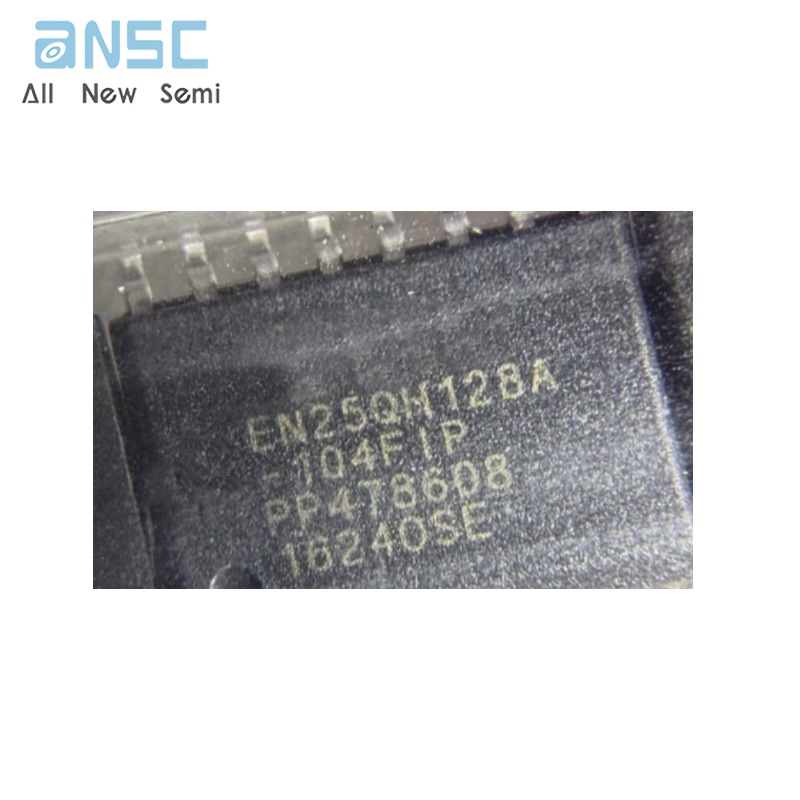

Product Photos
