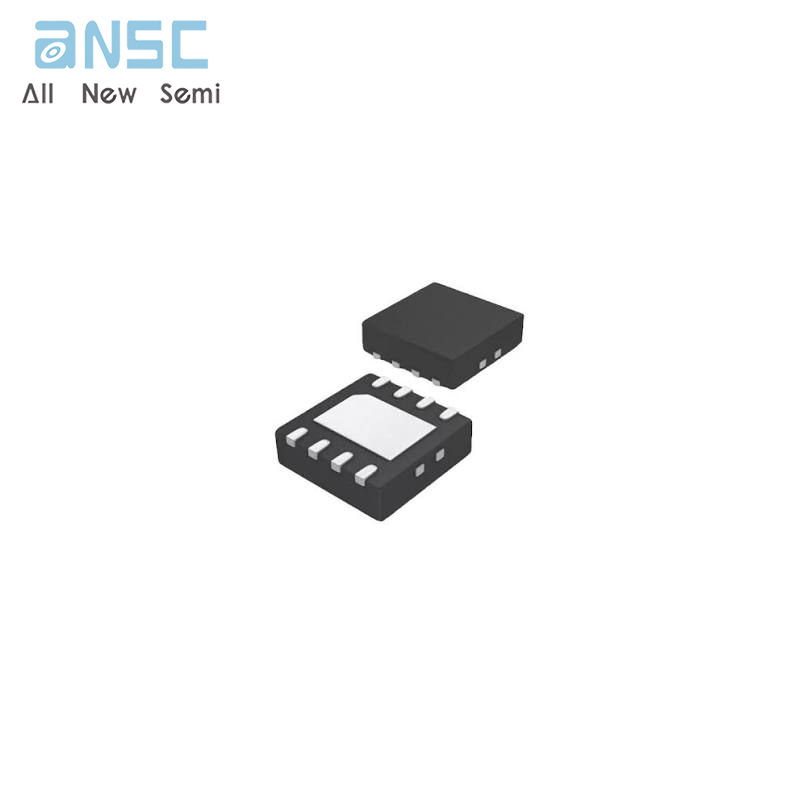

Hot-selling and scarce CY14B256Q2-LHXI Memory IC 256Kbit 40MHz 9ns 8-DFN spot stock

Product Descriptions

The  CY14B256Q1/CY14B256Q2/CY14B256Q3combines a 256-Kbit nvSRAM[1]with a nonvolatile element ineach memory cell with serial SPI interface .The memory isorganized as 32 K words of 8 bits each .The embeddednonvolatile elements incorporate the QuantumTrap technology,creating the world’s most reliable nonvolatile memory.TheSRAM provides infinite read and write cycles, while theQuantumTrap cell provides highly reliable nonvolatile storage ofdata .Data transfers from SRAM to the nonvolatile elements(STORE operation)takes place automatically at power-down(except for CY14B256Q1).On power-up,data is restored to theSRAM from the nonvolatile memory (RECALL operation).TheSTORE and RECALL operations can also be initiated by the userthrough SPI instruction .

Product Features

■ 256-Kbit nonvolatile static random access memory (nvSRAM)

❐ Internally organized as 32 K ×8

❐ STORE to QuantumTrap nonvolatile elements initiated automatically on power-down (AutoStore)or by user using HSB pin (Hardware STORE)or SPI instruction (Software STORE)

❐ RECALL to SRAM initiated on power-up (Power-Up RECALL)or by SPI instruction (Software RECALL)

❐ Automatic STORE on power-down with a small capacitor (except for CY14B256Q1)

■ High reliability

❐ Infinite read,write,and RECALL cycles

❐ 1 million STORE cycles to QuantumTrap

❐ Data retention:20 years

■ High-speed serial peripheral interface (SPI)

❐ 40-MHz clock rate

❐ Supports SPI mode 0 (0,0)and mode 3 (1,1)

■ Write protection

❐ Hardware protection using Write Protect (WP)pin

❐ Software protection using Write Disable instruction

❐ Software block protection for 1/4,1/2,or entire array

■ Low power consumption

❐ Single 3 V +20%,–10%operation

❐ Average active current of 10 mA at 40-MHz operation

■ Industry standard configurations

❐ Industrial temperature

❐ CY14B256Q1 has identical pin configuration to industry standard 8-pin NV memory

❐ 8-pin dual flat no-lead (DFN)package and 16-pin small outline integrated circuit (SOIC)package

❐ Restriction of hazardous substances (RoHS)compliant
