Hot-selling and scarce M29W256GH70N6E Parallel NOR Flash Embedded Memory TSSOP56 spot stock
Manufacturer Product Number
M29W256GH70N6E
Description
M29W256GH70N6E Parallel NOR Flash Embedded Memory TSSOP56 spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Supply voltage
– VCC = 2.7–3.6V (program, erase, read)
– VCCQ = 1.65–3.6V (I/O buffers)
– VPPH = 12V for fast program (optional)
• Asynchronous random/page read
– Page size: 8 words or 16 bytes
– Page access: 25ns, 30ns
– Random access: 60ns1, 70ns, 80ns
• Fast program commands: 32-word (64-byte) write buffer
• Enhanced buffered program commands: 256-word
• Program time
– 16µs per byte/word (TYP)
– Chip program time: 10s with VPPH and 16s without VPPH
• Memory organization
– Uniform blocks: 256 main blocks, 128KB, or 64-Kwords each
• Program/erase controller
– Embedded byte/word program algorithms
• Program/erase suspend and resume capability
– Read from any block during a PROGRAM SUSPEND operation
– Read or program another block during an ERASE SUSPEND operation
• Unlock bypass, block erase, chip erase, write to buffer and program
– Fast buffered/batch programming
– Fast block/chip erase
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-M29W256GH70N6E |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 256Mbit |
| Memory Organization | 32M x 8, 16M x 16 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 70ns |
| Access Time | 70 ns |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.724", 18.40mm Width) |
| Supplier Device Package | 56-TSOP |
| Base Product Number | M29W256 |

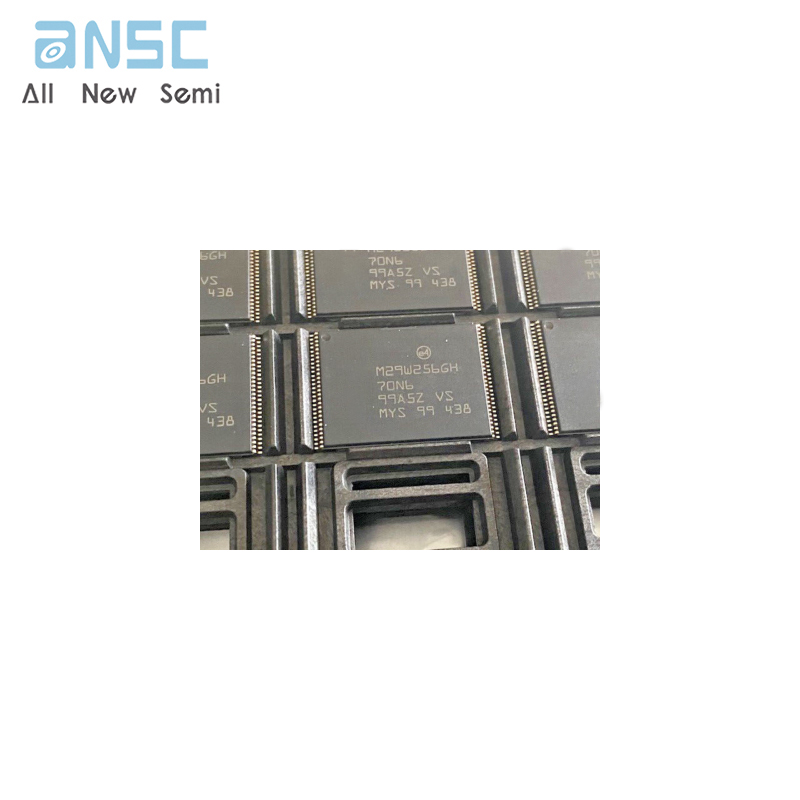

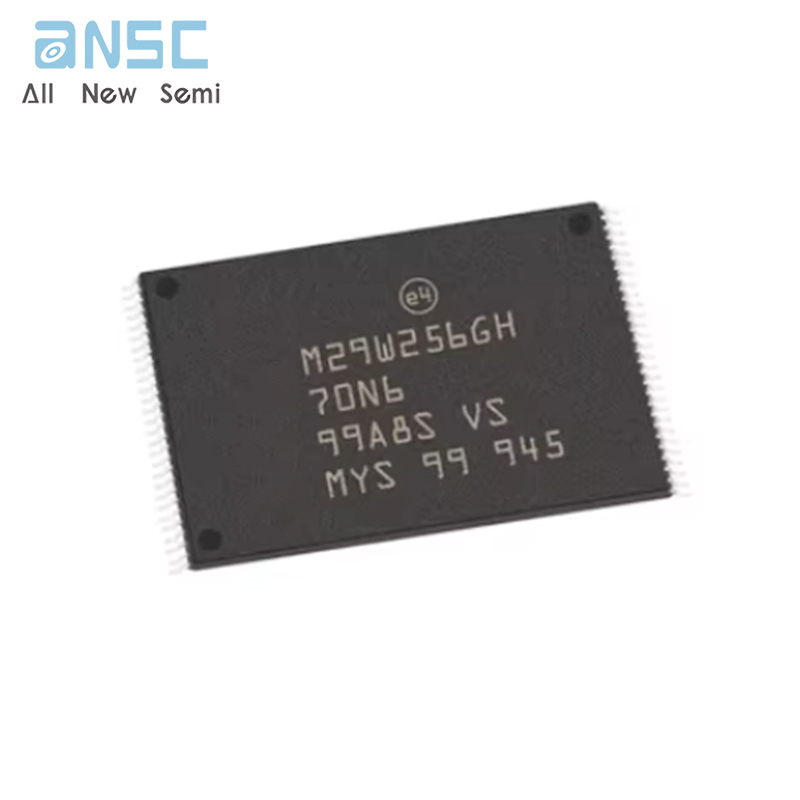

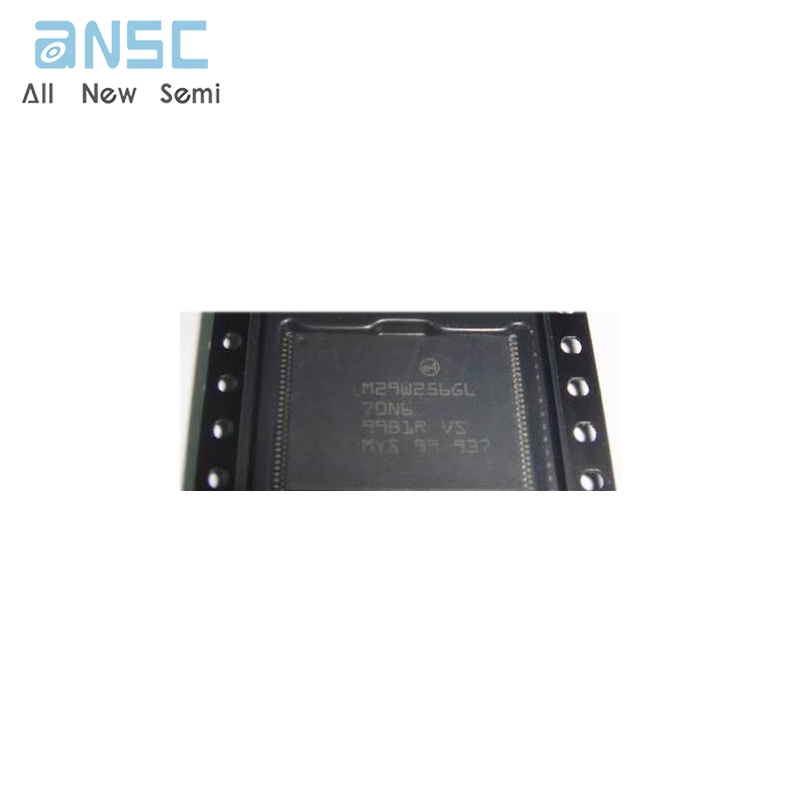

Product Photos
For more product information, please download the PDF
