Hot sale Original M27C256B-15F1 EPROM - UV Memory IC 256Kbit Parallel 150 ns 28-CDIP Frit Seal with Window IC
Manufacturer Product Number
M27C256B-15F1
Description
M27C256B-15F1 EPROM - UV Memory IC 256Kbit Parallel 150 ns 28-CDIP Frit Seal with Window IC EPROM 256KBIT PARALLEL 28CDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

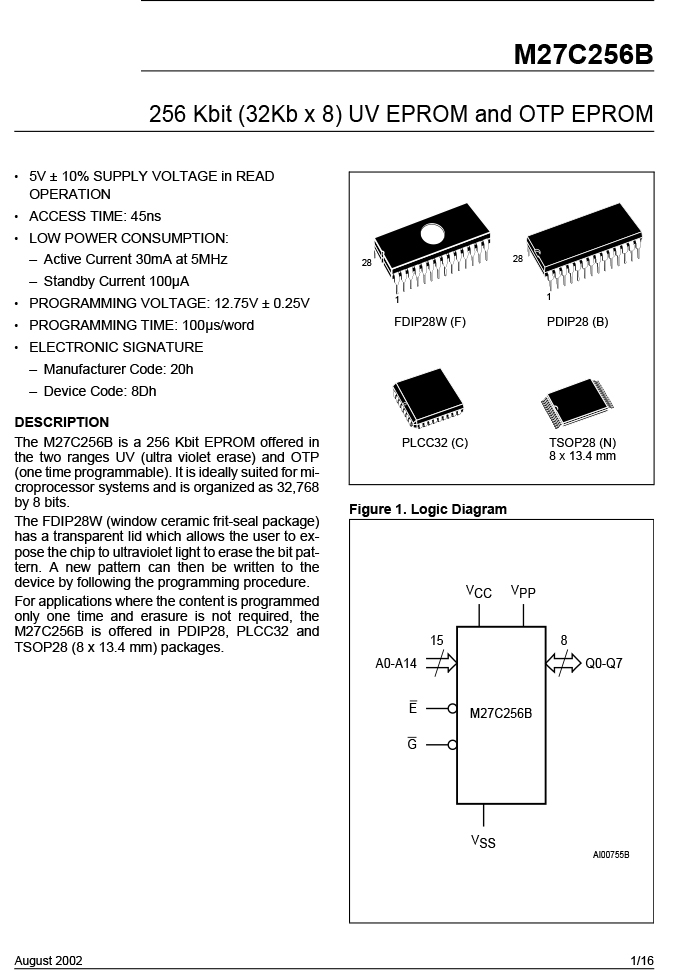

| Summary description The M27C256B is a 256 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems and is organized as 32,768 by 8 bits. The FDIP28W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C256B is offered in PDIP28 and PLCC32 packages. LButtonIn order to meet environmental requirements, ST offers the M27C256B in ECOPACK® packages. ECOPACK packages are Lead-free. The category of second Level Interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com. Feature summary ■ 5V ± 10% supply voltage in Read operation ■ Access time: 45ns ■ Low power consumption: – Active Current 30mA at 5MHz – Standby Current 100µA ■ Programming voltage: 12.75V ± 0.25V ■ Programming time: 100µs/Word ■ Electronic signature – Manufacturer Code: 20h – Device Code: 8Dh ■ ECOPACK® packages available |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - M27C256B-15F1 |
|
Category |
Integrated Circuits (ICs) Memory Memory |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Obsolete |
|
DigiKey Programmable |
Not Verified |
|
Memory Type |
Non-Volatile |
|
Memory Format |
EPROM |
|
Technology |
EPROM - UV |
|
Memory Size |
256Kbit |
|
Memory Organization |
32K x 8 |
|
Memory Interface |
Parallel |
|
Write Cycle Time - Word, Page |
- |
|
Access Time |
150 ns |
|
Voltage - Supply |
4.5V ~ 5.5V |
|
Operating Temperature |
0°C ~ 70°C (TA) |
|
Mounting Type |
Through Hole |
|
Package / Case |
28-CDIP (0.600", 15.24mm) Window |
|
Supplier Device Package |
28-CDIP Frit Seal with Window |
|
Base Product Number |
M27C256 |

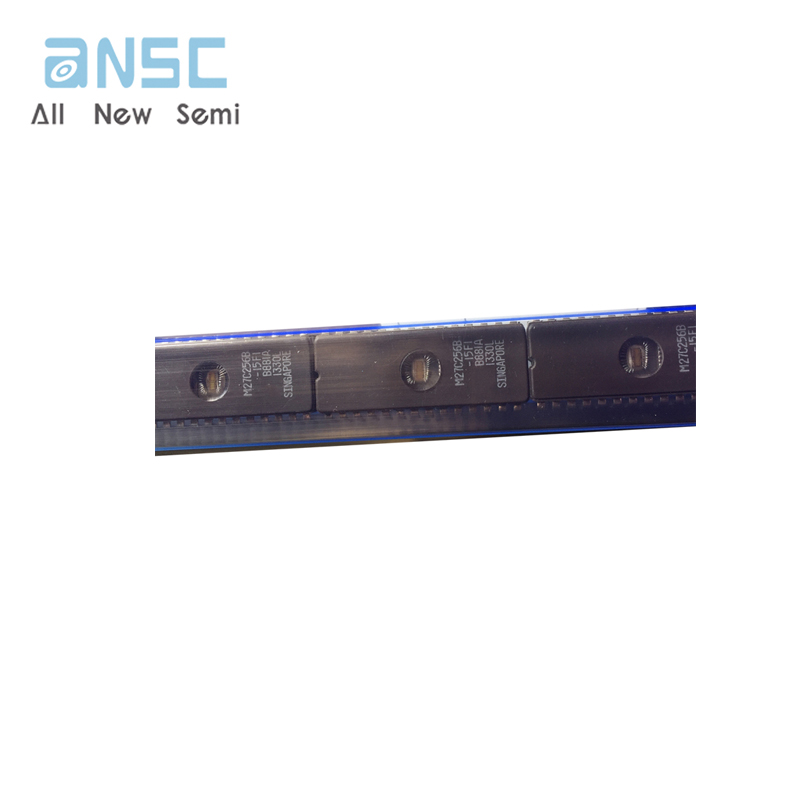

Actual image of the product

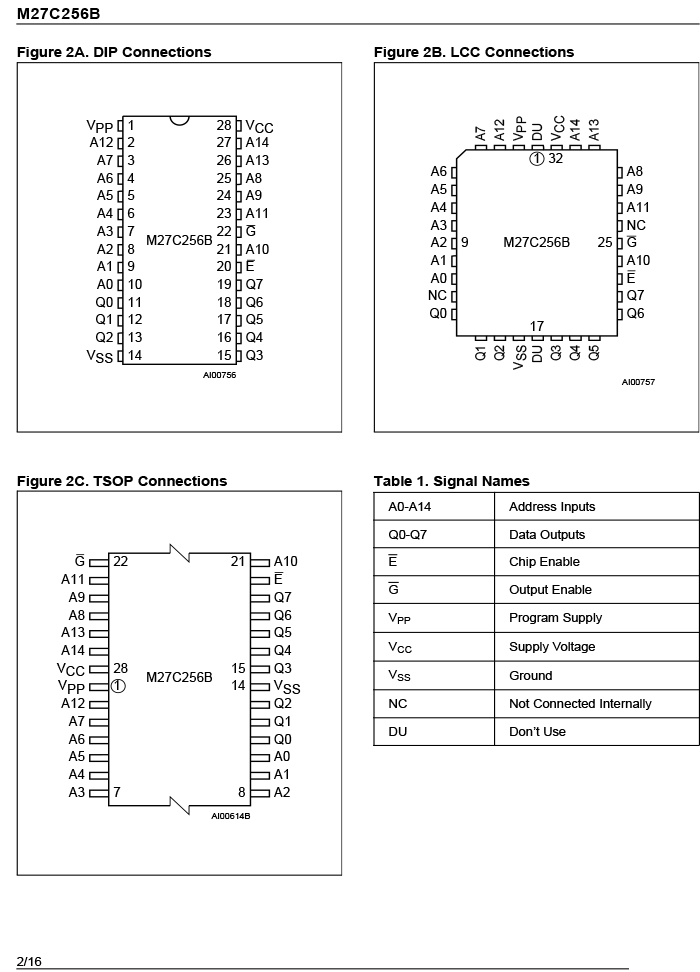

Product datasheet
For more information, please download
