Hot-selling and scarce 24LC16B-I/SN EEPROM Memory IC 16Kbit I2C 400 kHz 900 ns 8-SOIC spot stock

Product Descriptions

The Microchip Technology Inc.24XX16 is a 16-Kbit Electrically Erasable PROM.The device is organized as eight blocks of 256 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA,respectively.The24XX16 also has a page write capability for up to16 bytes of data.

Product Features

• Single Supply with Operation down to 1.7V for24AA16 and 24FC16 Devices,2.5V for 24LC16B Devices

• Low-Power CMOS Technology:

- Read current 1 mA,maximum

- Standby current 1 μA,maximum (I-temp.)

•Two-Wire Serial Interface,I 2 C Compatible

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz,400 kHz and 1 MHz Compatibility

• Page Write Time:5 ms,Maximum

• Self-Timed Erase/Write Cycle

• 16-Byte Page Write Buffer

• Hardware Write-Protect

• ESD Protection >4,000V

• More than 1 Million Erase/Write Cycles

• Data Retention >200 Years

• Factory Programming Available

• RoHS Compliant

•Temperature Ranges:

- Industrial (I):-40°C to +85°C

- Extended (E):-40°C to +125°C

•Automotive AEC-Q100 Qualified

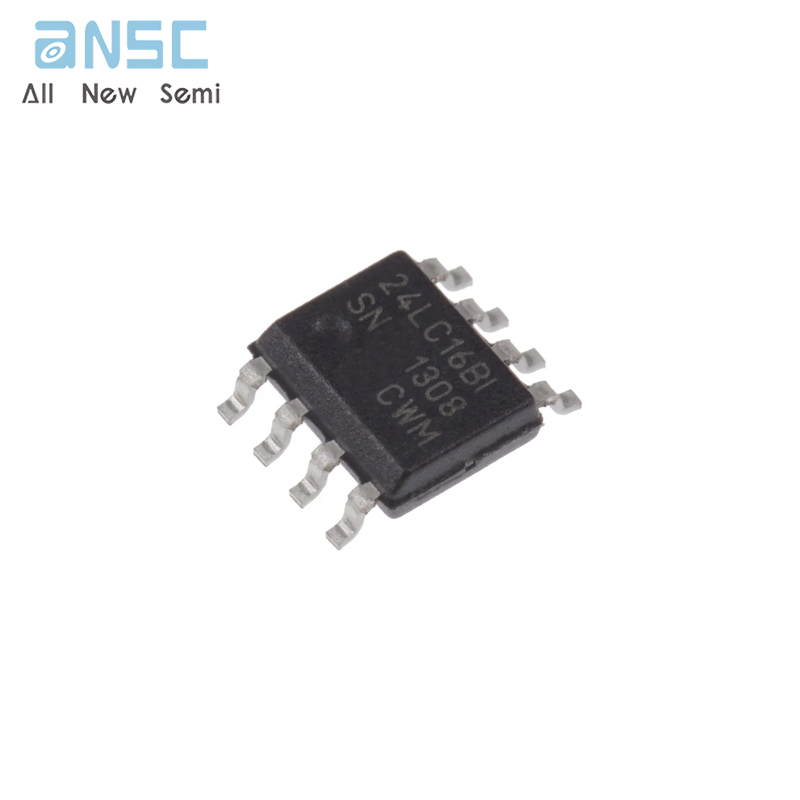

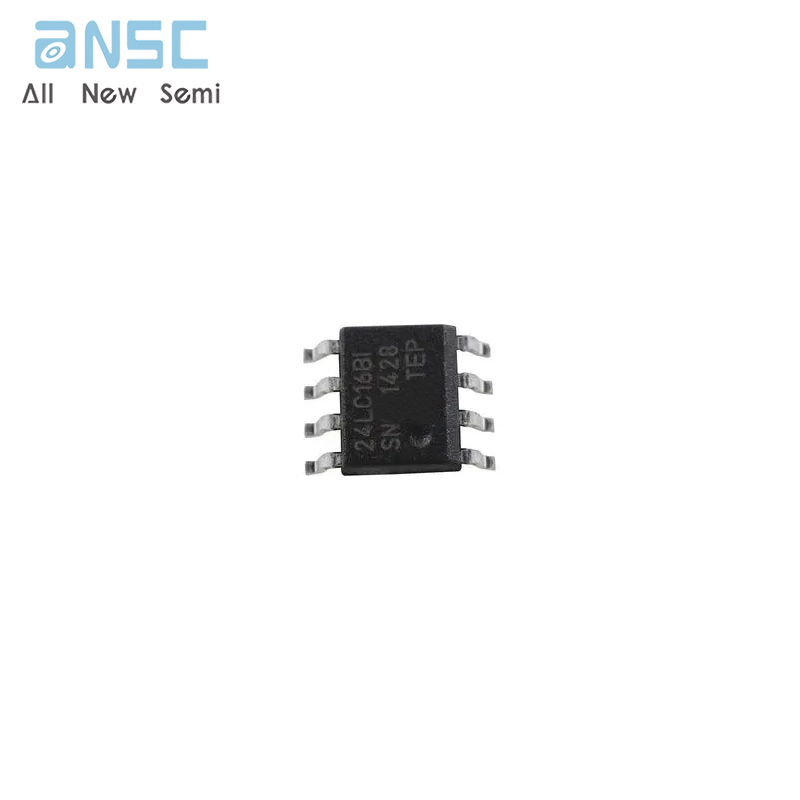

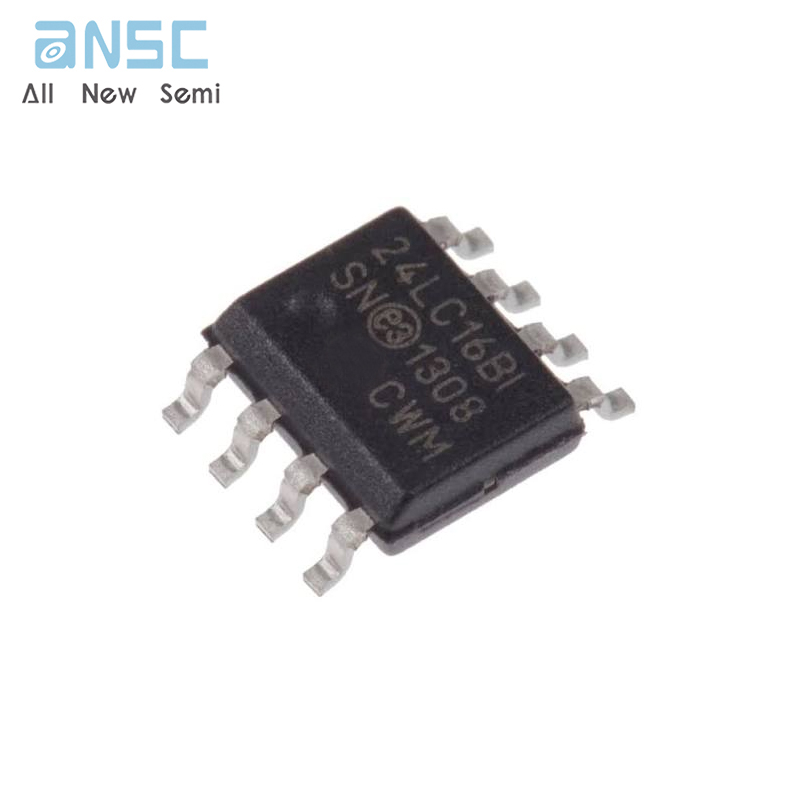

Product Photos

For more product information, please download the PDF
