Hot sale Original 24LC256-E/SN Memory IC EEPROM 256KBIT I2C 8SOIC EEPROM Memory IC 256Kbit I2C 400 kHz 900 ns 8-SOIC

Product Overview

You can get memory ics in a Tube case. 8-SOIC (0.154, 3.90mm Width) case encloses it. There is 256Kb 32K x 8 of memory on the chip. The device uses a mainstream EEPROM-format memory. Suitable for use in a wide range of demanding applications, this device offers an extended operating temperature range of -40°C~125°C TA. There is a voltage range of 2.5V~5.5V for the supply voltage. It is recommended that the mounting type be Surface Mount. There are 8 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. It has a clock frequency of 400kHz. When choosing similar parts, 24LC256 is frequently referred to as the device's base part number. In this ic memory chip, there is an 8-pin package that encloses the device. It is worth noting that this memory device has 8 pins, which indicates it has 8 memory locations. As a result of the Surface Mount mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. As far as the nominal supply current of this memory component is concerned, it is rated at 3mA. As for the power supply, this memory chip only needs 3/5V . Integrated into this memory is a I2C-type serial bus that facilitates data transmission to the CPU.

Product Features

Package / Case: 8-SOIC (0.154, 3.90mm Width)
8 Pins

Product Applications

24LC256-E/SN Memory applications.

· multimedia computers

· networking

· personal computers

· servers

· supercomputers

· telecommunications

· workstations,

· DVD disk buffer

· data buffer

· nonvolatile BIOS memory

Product Description

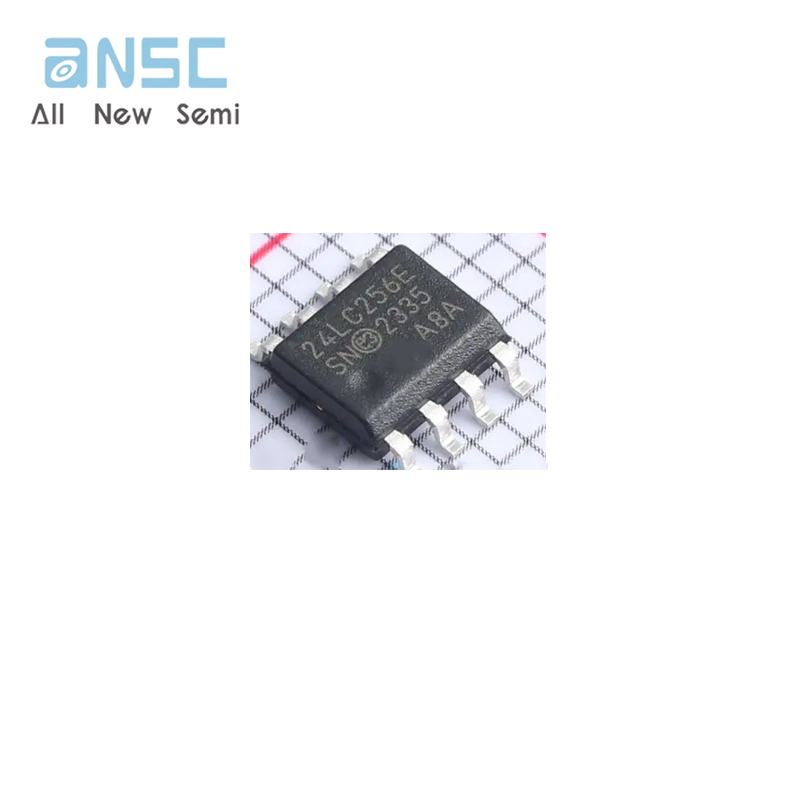

Actual image of the product

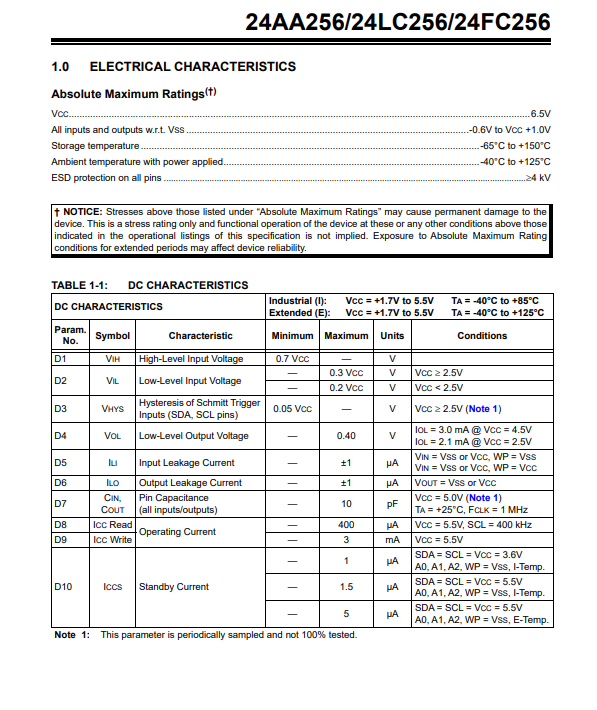

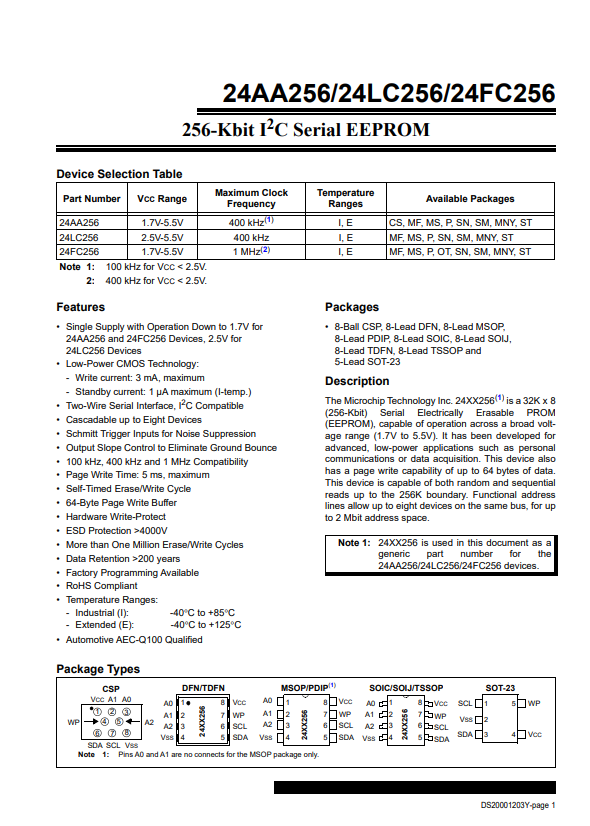

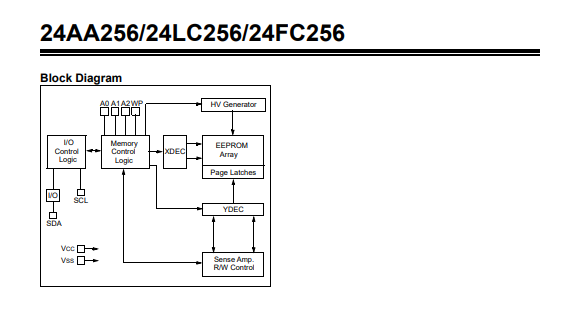

Product datasheet
