Hot sale original AM29F040B-70JI Memory ICs 4 Megabit (512 K x 8-Bit) CMOS 5.0 Volt-only, Uniform Sector Flash Memory
Manufacturer Product Number
AM29F040B-70JI
Description
AM29F040B-70JI Memory ICs 4 Megabit (512 K x 8-Bit) CMOS 5.0 Volt-only, Uniform Sector Flash Memory
Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

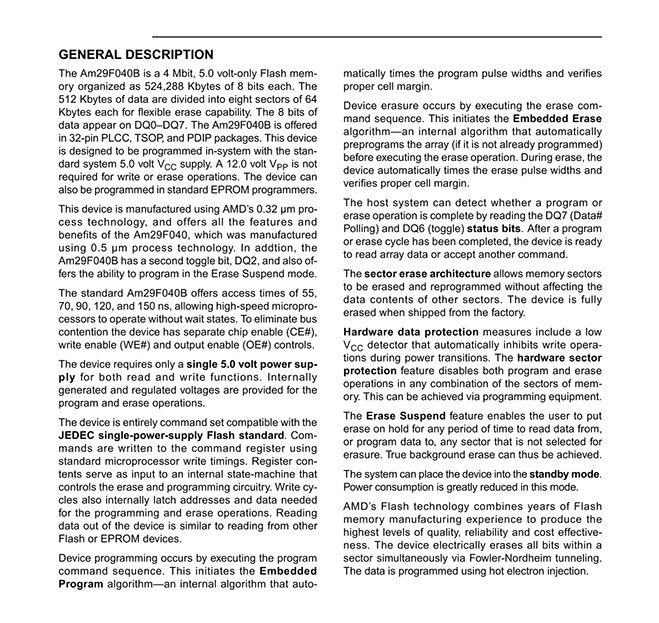

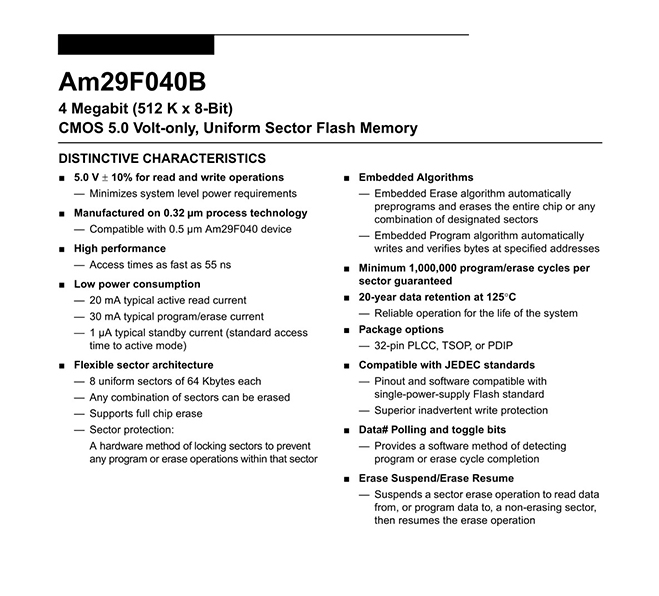

GENERAL DESCRIPTION The Am29F040B is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7. The Am29F040B is offered in 32-pin PLCC, TSOP, and PDIP packages. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for write or erase operations. The device can also be programmed in standard EPROM programmers. DISTINCTIVE CHARACTERISTICS ■ 5.0 V ± 10% for read and write operations — Minimizes system level power requirements ■ Manufactured on 0.32 µm process technology — Compatible with 0.5 µm Am29F040 device ■ High performance — Access times as fast as 55 ns ■ Low power consumption — 20 mA typical active read current — 30 mA typical program/erase current — 1 µA typical standby current (standard access time to active mode) ■ Flexible sector architecture — 8 uniform sectors of 64 Kbytes each — Any combination of sectors can be erased — Supports full chip erase — Sector protection: A hardware method of locking sectors to prevent any program or erase operations within that sector ■ Embedded Algorithms — Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors — Embedded Program algorithm automatically writes and verifies bytes at specified addresses ■ Minimum 1,000,000 program/erase cycles per sector guaranteed ■ 20-year data retention at 125°C — Reliable operation for the life of the system ■ Package options — 32-pin PLCC, TSOP, or PDIP ■ Compatible with JEDEC standards — Pinout and software compatible with single-power-supply Flash standard — Superior inadvertent write protection ■ Data# Polling and toggle bits — Provides a software method of detecting program or erase cycle completion ■ Erase Suspend/Erase Resume — Suspends a sector erase operation to read data from, or program data to, a non-erasing sector, then resumes the erase operation |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- AM29F040B-70JI |
| Ihs Manufacturer | Original |
| Part Package Code | LCC |
| Package Description | QCCJ, LDCC32,.5X.6 |
| Pin Count | 32 |
| Access Time-Max | 70 ns |
| Additional Feature | MINIMUM 1000K PROGRAM/ERASE CYCLE ;20 YEAR DATA RETENTION |
| Command User Interface | YES |
| Data Polling | YES |
| Data Retention Time-Min | 20 |
| Endurance | 1000000 Write/Erase Cycles |
| Length | 13.97 mm |
| Memory Density | 4194304 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Sectors/Size | 8 |
| Number of Terminals | 32 |
| Number of Words | 524288 words |
| Number of Words Code | 512000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Organization | 512KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC32,.5X.6 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER |
| Parallel/Serial | PARALLEL |
| Programming Voltage | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.556 mm |
| Sector Size | 64K |
| Standby Current-Max | 0.000005 A |
| Supply Current-Max | 0.04 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Toggle Bit | YES |
| Type | NOR TYPE |
| Width | 11.43 mm |

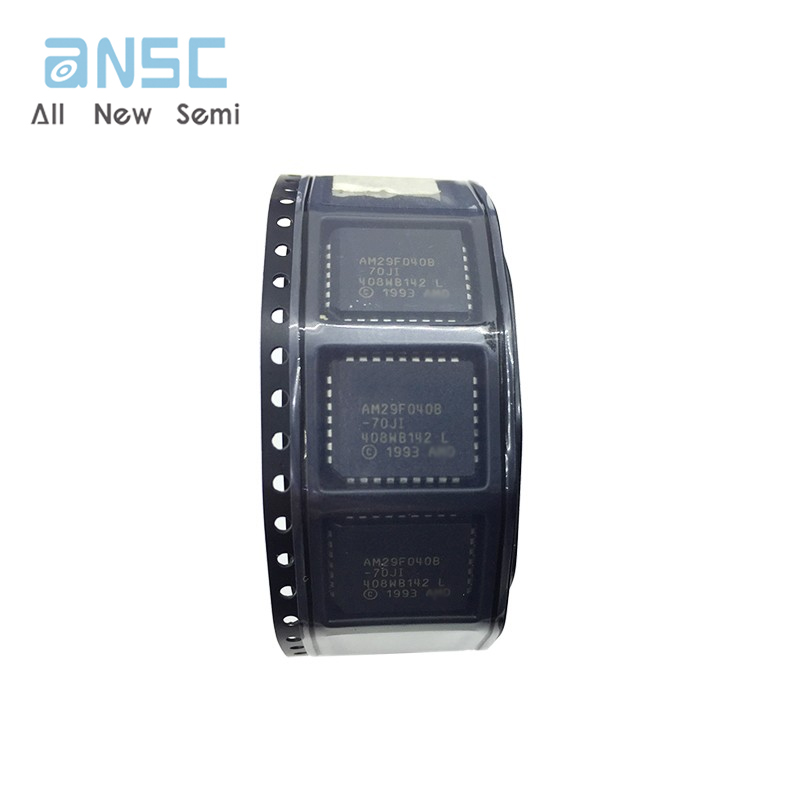

Product Photos

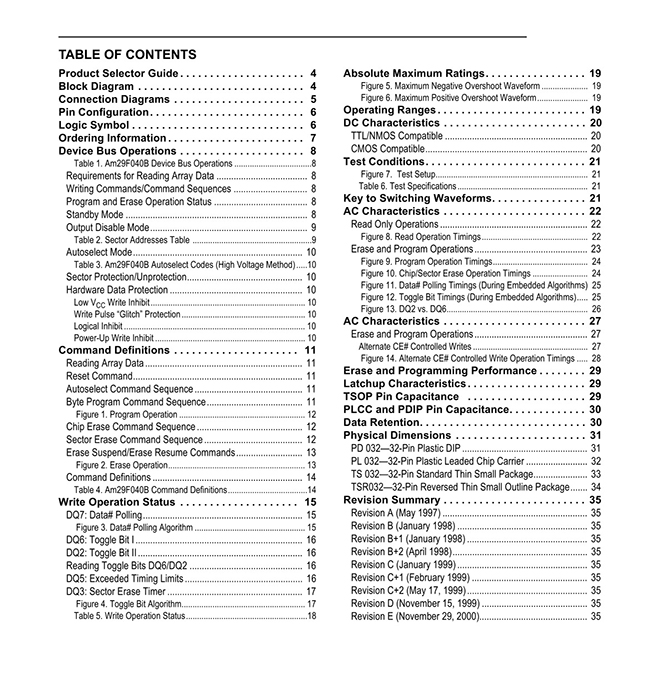

Product datasheet
For more information, please download
