Hot-selling and scarce MT46V32M16P-6T:F SDRAM - DDR Memory IC 512Mbit Parallel 167 MHz 700 ps 66-TSOP spot stock
Manufacturer Product Number
MT46V32M16P-6T:F
Description
MT46V32M16P-6T:F SDRAM - DDR Memory IC 512Mbit Parallel 167 MHz 700 ps 66-TSOP spot stock
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• VDD = +2.5V ±0.2V, VDDQ = +2.5V ±0.2V
• VDD = +2.6V ±0.1V, VDDQ = +2.6V ±0.1V (DDR400)
• Bidirectional data strobe (DQS) transmitted/ received with data, i.e., source-synchronous data capture (x16 has two – one per byte)
• Internal, pipelined double-data-rate (DDR) architecture; two data accesses per clock cycle
• Differential clock inputs (CK and CK#)
• Commands entered on each positive CK edge
• DQS edge-aligned with data for READs; center aligned with data for WRITEs
• DLL to align DQ and DQS transitions with CK
• Four internal banks for concurrent operation
• Data mask (DM) for masking write data (x16 has two – one per byte)
• Programmable burst lengths: 2, 4, or 8
• Auto refresh
– 64ms, 8192-cycle(Commercial and industrial)
– 16ms, 8192-cycle (Automotive)
• Self refresh (not available on AT devices)
• Longer-lead TSOP for improved reliability (OCPL)
• 2.5VI/O (SSTL_2 compatible)
• Concurrent auto precharge option is supported
• tRAS lockout supported (tRAP =tRCD)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MT46V32M16P-6T:F |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM - DDR |
| Memory Size | 512Mbit |
| Memory Organization | 32M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 167 MHz |
| Write Cycle Time - Word, Page | 15ns |
| Access Time | 700 ps |
| Voltage - Supply | 2.3V ~ 2.7V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 66-TSSOP (0.400", 10.16mm Width) |
| Supplier Device Package | 66-TSOP |
| Base Product Number | MT46V32M16 |

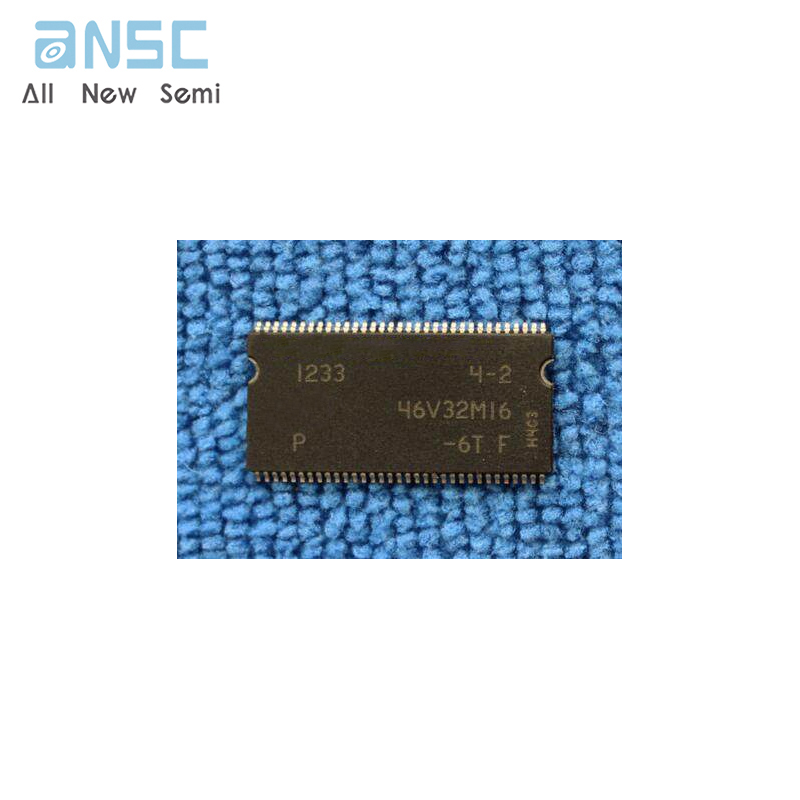

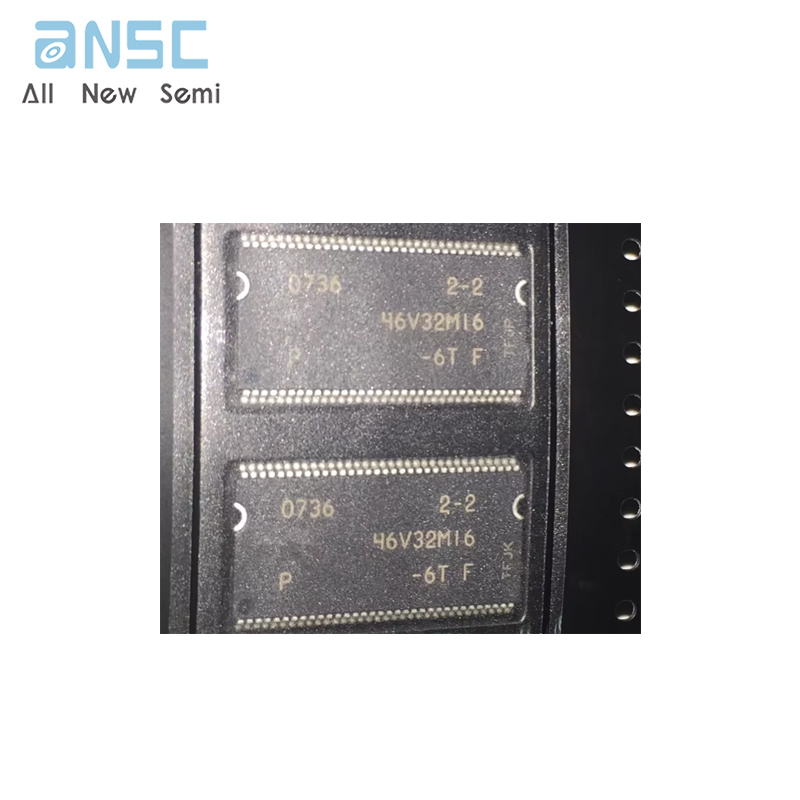

Product Photos
