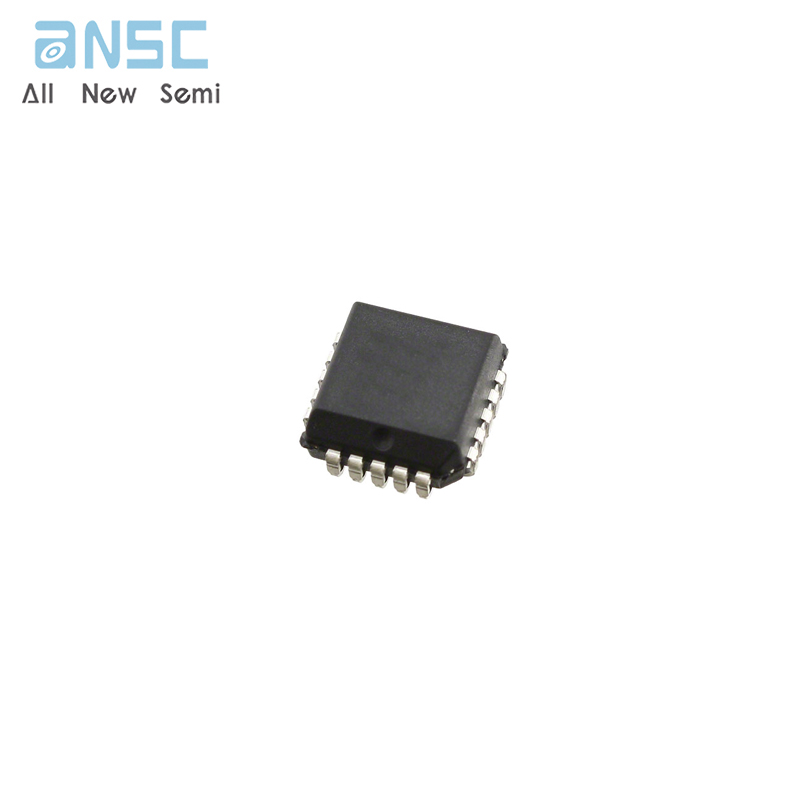

Hot-selling and scarce XC17512LPC20I OTP Configuration PROM for FPGAs 512kb 20-PLCC spot stock

Product Descriptions

The XC1700 family of configuration PROMs provides an  easy-to-use, cost-effective method for storing large Xilinx  FPGA configuration bitstreams.

​

When the FPGA is in Master Serial mode, it generates a  configuration clock that drives the PROM. A short access  time after the rising clock edge, data appears on the PROM  DATA output pin that is connected to the FPGA DIN pin. The  FPGA generates the appropriate number of clock pulses to  complete the configuration. After configured, it disables the  PROM. When the FPGA is in Slave Serial mode, the PROM  and the FPGA must both be clocked by an incoming signal.

Multiple devices can be concatenated by using the CEO output to drive the CE input of the following device. The  clock inputs and the DATA outputs of all PROMs in this  chain are interconnected. All devices are compatible and  can be cascaded with other members of the family.

For device programming, either the Xilinx Alliance or  Foundation software compiles the FPGA design file into a  standard Hex format, which is then transferred to most  commercial PROM programmers.

Product Features

• One-time programmable (OTP) read-only memory designed to store configuration bitstreams of Xilinx® FPGAs

• Simple interface to the FPGA; requires only one user I/O pin

• Cascadable for storing longer or multiple bitstreams

• Programmable reset polarity (active High or active Low) for compatibility with different FPGA solutions

• XC17128E/EL, XC17256E/EL, XC1701, and XC1700L series support fast configuration

• Low-power CMOS floating-gate process

• XC1700E series are available in 5V and 3.3V versions

• XC1700L series are available in 3.3V only

• Available in compact plastic packages: 8-pin SOIC, 8-pin VOIC, 8-pin PDIP, 20-pin SOIC, 20-pin PLCC, 44-pin PLCC or 44-pin VQFP

• Programming support by leading programmer manufacturers

• Design support using the Xilinx Alliance and Foundation™ software packages

• Guaranteed 20 year life data retention

• Lead-free (Pb-free) packaging available
