You can contact me for the best price CY7C109B-15VXC Integrated Circuits IC SOJ32 128K x 8 Static RAM Hot sale original
Manufacturer Product Number
CY7C109B-15VXC
Description
CY7C109B-15VXC Integrated Circuits IC SOJ32 128K x 8 Static RAM Hot sale original
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

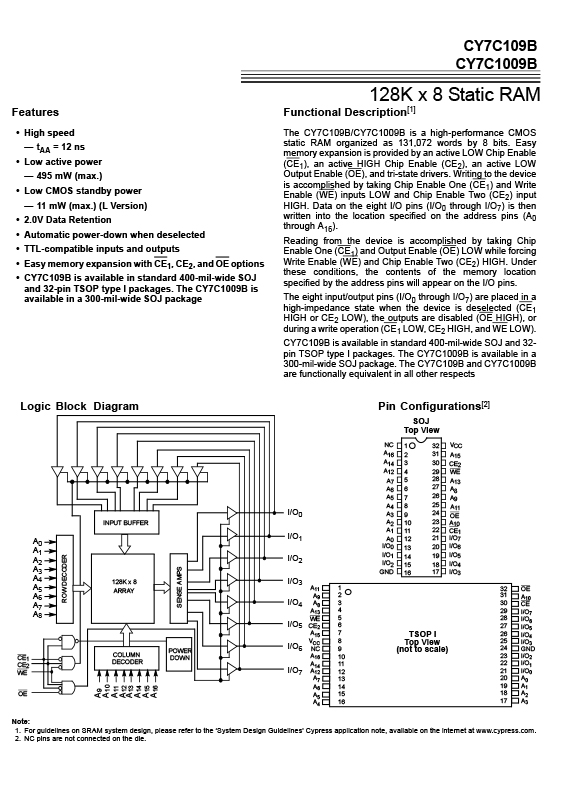

| Functional Description[1] The CY7C109B/CY7C1009B is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable (OE), and tri-state drivers. Writing to the device is accomplished by taking Chip Enable One (CE1) and Write Enable (WE) inputs LOW and Chip Enable Two (CE2) input HIGH. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A16). Features • High speed — tAA = 12 ns • Low active power — 495 mW (max.) • Low CMOS standby power — 11 mW (max.) (L Version) • 2.0V Data Retention • Automatic power-down when deselected • TTL-compatible inputs and outputs • Easy memory expansion with CE1, CE2, and OE options • CY7C109B is available in standard 400-mil-wide SOJ and 32-pin TSOP type I packages. The CY7C1009B is available in a 300-mil-wide SOJ package |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- CY7C109B-15VXC |
| Ihs Manufacturer | Original |
| Part Package Code | SOJ |
| Package Description | 0.400 INCH, LEAD FREE, SOJ-32 |
| Pin Count | 32 |
| Access Time-Max | 15 ns |
| I/O Type | COMMON |
| Length | 20.955 mm |
| Memory Density | 1048576 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Number of Words | 131072 words |
| Number of Words Code | 128000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Organization | 128KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOJ |
| Package Equivalence Code | SOJ32,.44 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.7592 mm |
| Standby Current-Max | 0.01 A |
| Standby Voltage-Min | 4.5 V |
| Supply Current-Max | 0.08 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Width | 10.16 mm |

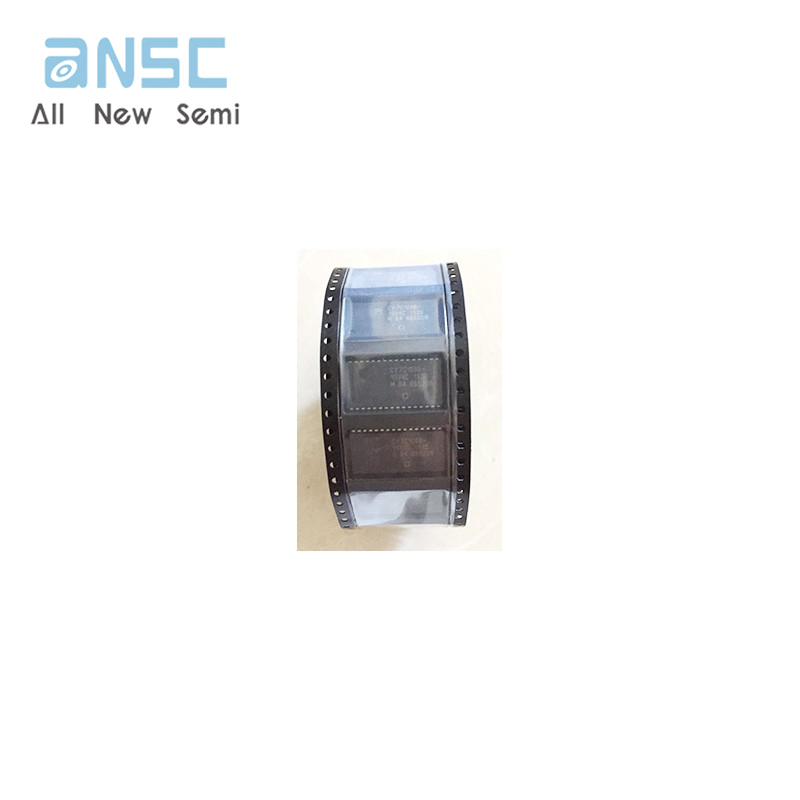

Product Photos

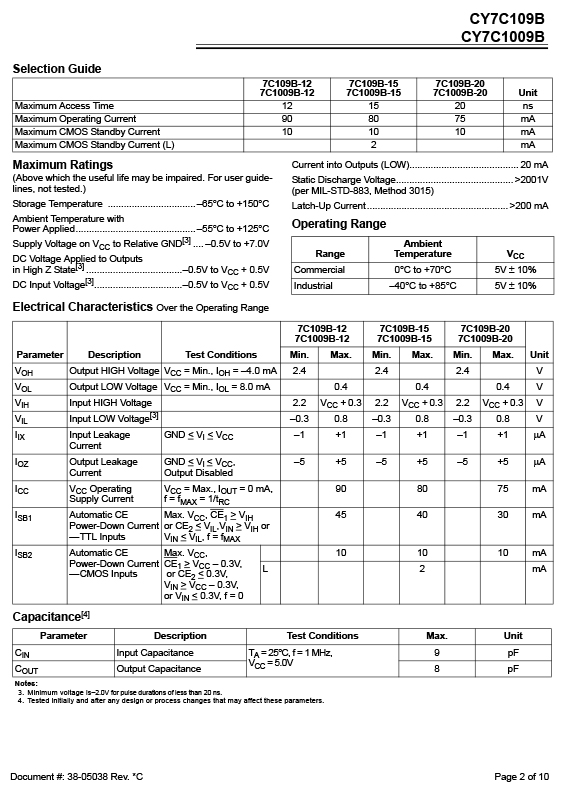

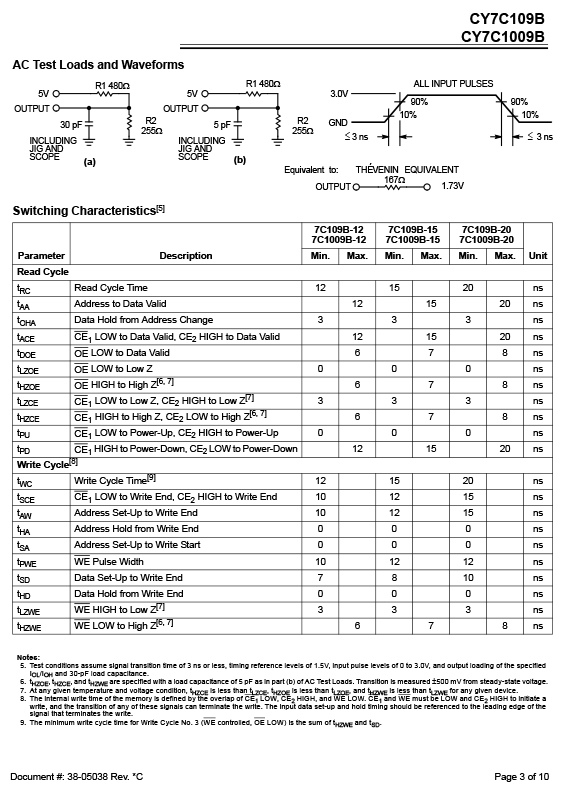

Product datasheet
For more information, please download
