Hot-selling and scarce 24AA02T-I/OT EEPROM Memory IC 2Kbit I2C 400 kHz 900 ns SOT-23-5 spot stock

Product Descriptions

The Microchip Technology Inc.24XX02(1)is a 2-Kbit Electrically  Erasable  Programmable  Read-Only Memory (EEPROM)device.It is organized as one block of 256 x 8-bit memory with a Two-Wire serial interface. Its low-voltage design permits operation down to 1.7V,with standby and active currents of only1 µA and 1 mA,respectively.The 24XX02 also has a page write capability for up to 8 bytes of data.

Product Features

• Single-Supply with Operation Down to 1.7V for 24AA02 and 24FC02 Devices,2.5V for 24LC02B Devices

• Low-Power CMOS Technology:

- Read current 1 mA,maximum

- Standby current 1 µA,maximum (I-temp.)

• Two-Wire Serial Interface,I 2 C Compatible

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz,400 kHz and 1 MHz Compatibility

• Page Write Time:5 ms,Maximum

• Self-Timed Erase/Write Cycle

• 8-Byte Page Write Buffer

• Hardware Write-Protect

• ESD Protection >4,000V

• More than 4 Million Erase/Write Cycles (FC devices)

• More than 1 Million Erase/Write Cycles (AA and LC devices)

• Data Retention >200 Years

• Factory Programming Available

• RoHS Compliant

• Temperature Ranges:

- Industrial (I):-40°C to +85°C

- Extended (E):-40°C to +125°C

•AEC-Q100 Automotive Qualified

Product Specification

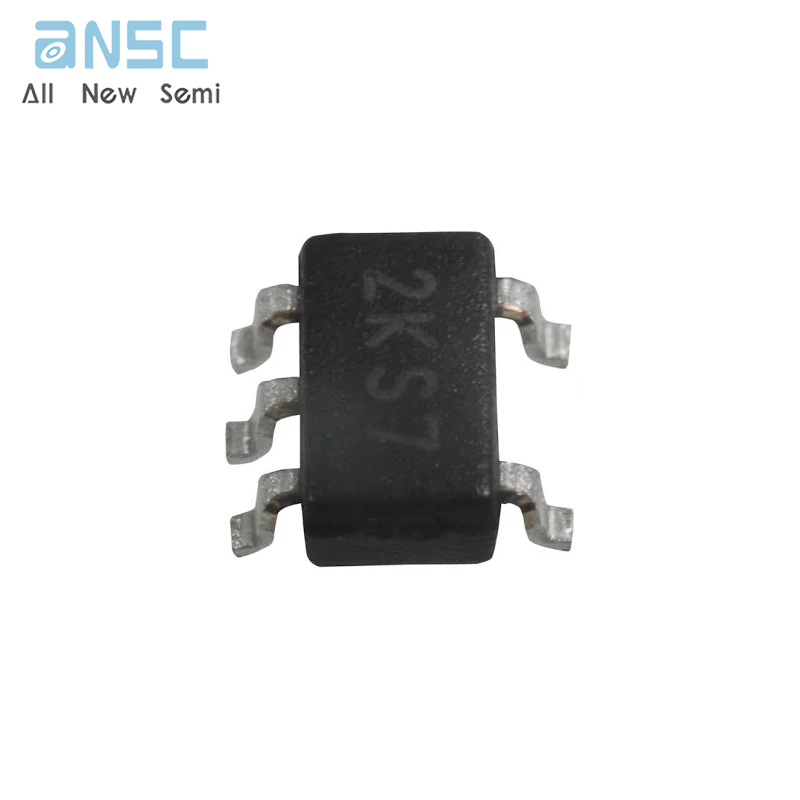

Product Photos

For more product information, please download the PDF
