Hot-selling and scarce M93S56-WMN6P 4Kbit,2Kbit and 1Kbit 16-bit wide MICROWIRE Serial Access EEPROM SOP8 spot stock
Manufacturer Product Number
M93S56-WMN6P
Description
M93S56-WMN6P 4Kbit,2Kbit and 1Kbit 16-bit wide MICROWIRE Serial Access EEPROM SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
■ Industry Standard MICROWIRE Bus
■ Single Supply Voltage:
– 4.5 to 5.5V for M93Sx6
– 2.5 to 5.5V for M93Sx6-W
– 1.8 to 5.5V for M93Sx6-R
■ Single Organization: by Word (x16)
■ Programming Instructions that work on: Word or Entire Memory
■ Self-timed Programming Cycle with Auto Erase
■ User Defined Write Protected Area
■ Page Write Mode (4 words)
■ Ready/Busy Signal During Programming
■ Speed:
– 1MHz Clock Rate, 10ms Write Time (Current product, identified by process identification letter F or M)
– 2MHz Clock Rate, 5ms Write Time (New Product, identified by process identification letter W or G)
■ Sequential Read Operation
■ Enhanced ESD/Latch-Up Behavior
■ More than 1 Million Erase/Write Cycles
■ More than 40 Year Data Retention
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-M93S56-WMN6P |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 2Kbit |
| Memory Organization | 128 x 16 |
| Memory Interface | SPI |
| Clock Frequency | 2 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | M93S56 |

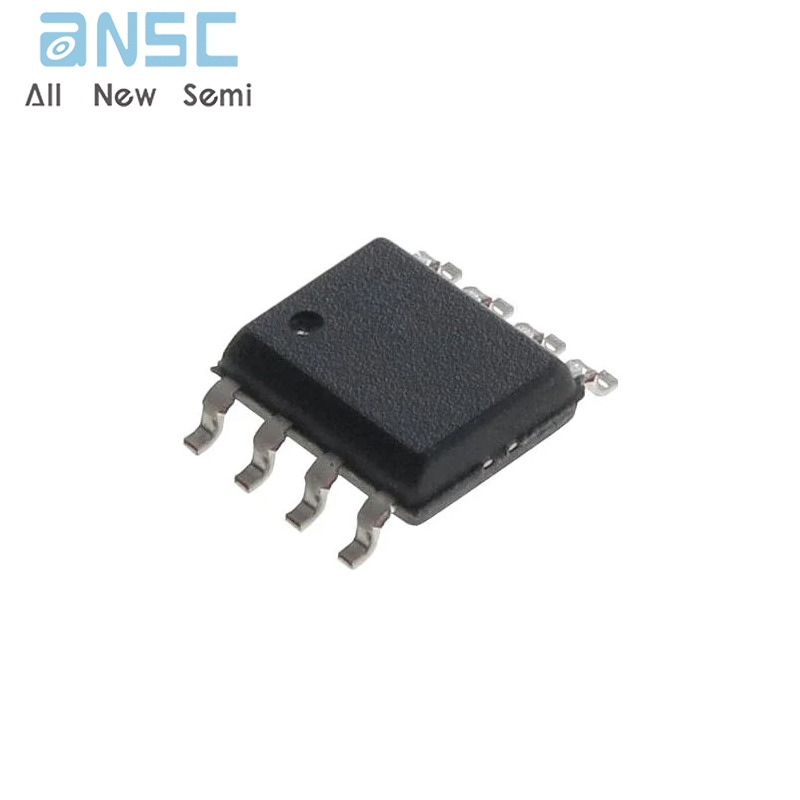

Product Photos
For more product information, please download the PDF
