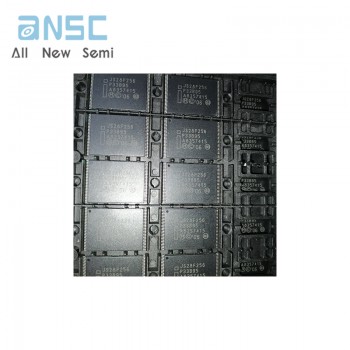

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot selling One stop electronic component supply JS28F256P33B95 FLASH - NOR Memory IC 256Mbit Parallel 40 MHz 95 ns 56-TSOP
Manufacturer Product Number
JS28F256P33B95
Description
IC FLASH 256MBIT PAR 56TSOP
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Benefits and Features
• High-performance read, program, and erase
– 106ns initial read access
– 108 MHz with zero wait-state synchronous burst reads: 7ns clock-to-data output
– 133 MHz with zero wait-state synchronous burst reads: 6ns clock-to-data output
– 8-, 16-, and continuous-word synchronous-burst reads
– Programmable WAIT configuration
– Customer-configurable output driver impedance
– Buffered programming: 2.0 μs/word (TYP), 512Mb
– Block erase: 0.9s per block (TYP)
– 20μs (TYP) program/erase suspend
• Architecture
– 16-bit wide data bus
– Multilevel cell technology
– Symmetrically-blocked array architecture
– 256KB erase blocks
– 1Gb device: Eight 128Mb partitions
– 512Mb device: Eight 64Mb partitions
– 256Mb device: Eight 32Mb partitions
– Status register for partition/device status
– Blank check feature
• Quality and reliability
– Automotive temperature: –40°C to +105°C (Grade 2 AEC-Q100)
– Minimum 100,000 ERASE cycles per block
– More than 20 years data retention
– 65nm process technology
• Power
– Core voltage: 1.7– 2.0V
– I/O voltage: 1.7–2.0V
– Standby current: 60μA (TYP) for 512Mb
– Automatic power savings mode
– 16-word synchronous-burst read current: 23mA (TYP) @ 108 MHz; 24mA (TYP) @ 133 MHz
• Software
– Micron® Flash data integrator (FDI) optimized
– Basic command set (BCS) and extended command set (ECS) compatible
– Common Flash interface (CFI) capable
• Security
– One-time programmable (OTP) space 64 unique factory device identifier bits 2112 user-programmable OTP bits
– Absolute write protection: VPP = GND
– Power-transition erase/program lockout
– Individual zero latency block locking
– Individual block lock-down
• Density and packaging
– 256Mb, 512Mb, and 1Gb
– Address-data multiplexed interface
– 64-Ball TBGA
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-JS28F256P33B95 |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Series | StrataFlash™ |
| Package | Tray |
| Product Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 256Mbit |
| Memory Organization | 16M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 40 MHz |
| Write Cycle Time - Word, Page | 95ns |
| Access Time | 95 ns |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.724", 18.40mm Width) |
| Supplier Device Package | 56-TSOP |
| Base Product Number | JS28F256P33 |
