Hot-selling and scarce AM29LV017D-70EC 16 Megabit CMOS 3.0 Volt-only Uniform Sector Flash Memory TSOP40 spot stock

Product Descriptions

The Am29LV017D is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes. The device is offered in 48-ball FBGA and 40-pin TSOP packages. The byte-wide (x8) data appears on DQ7–DQ0 . All read, program,and erase operations are accomplished using only a single power supply. The device can also be programmed in standard EPROM programmers.

Product Features

■  Single power supply operation

— 2.7 to 3.6 volt read and write operations for battery-powered applications

■  Manufactured on 0.23 µm process technology

— Compatible with and replaces Am29LV017B device

■  High performance

— Access times as fast as 70 ns

■  Ultra low power consumption (typical values at 5MHz)

— 200 nA Automatic Sleep mode current

— 200 nA standby mode current

— 9 mA read current

—  15 mA program/erase current

■  Flexible sector architecture

— Thirty-two 64 Kbyte sectors

— Supports full chip erase

— Sector Protection features:

A hardware method of locking a sector to prevent any program or erase operations within that sector

Sectors can be locked in-system or via programming equipment

Temporary Sector Unprotect feature allows code changes in previously locked sectors

■  Unlock Bypass Program Command

— Reduces overall programming time when issuing multiple program command sequences

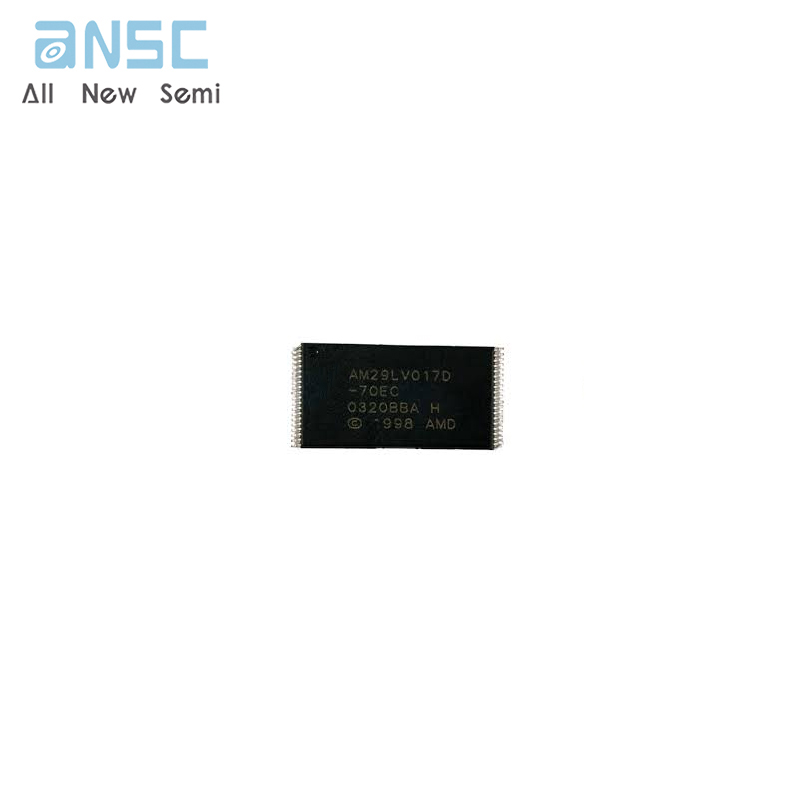

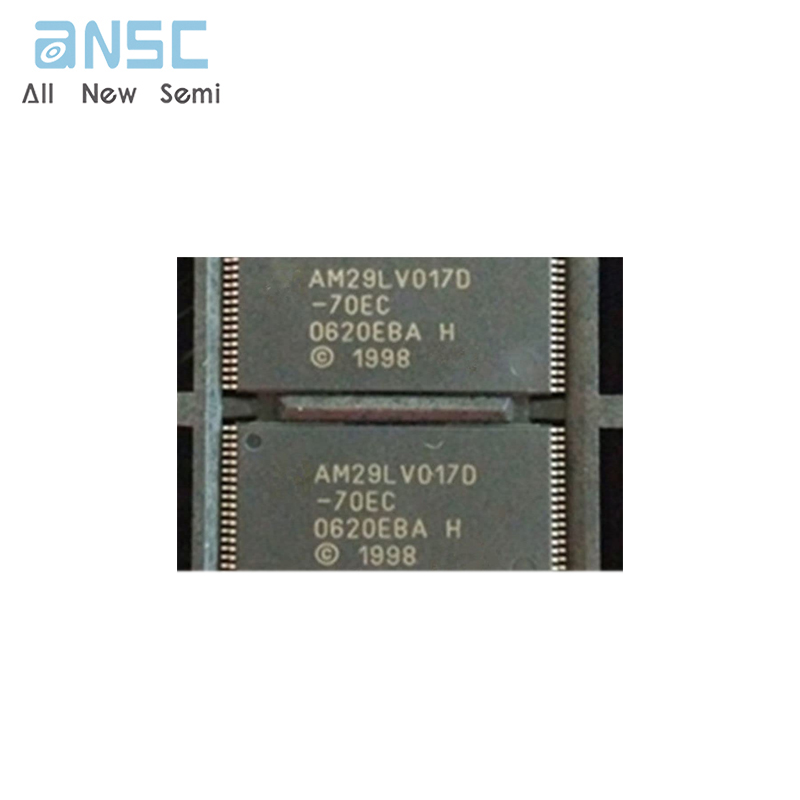

Product Photos

For more product information, please download the PDF
