Hot-selling and scarce K4T51163QJ-BCE7 512Mb J-die DDR2 SDRAM IC BGA spot stock

Manufacturer Product Number
K4T51163QJ-BCE7
Description

K4T51163QJ-BCE7 512Mb J-die DDR2 SDRAM IC BGA spot stock

Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Descriptions

The 512Mb DDR2 SDRAM is organized as a 8Mbit x16 I/Os,16Mbit x8 I/Os,  32Mbit x4 I/Os 4banks device. This synchronous device achieves high  speed double-data-rate transfer rates of up to 1066Mb/sec/pin (DDR2- 1066) for general applications.

The chip is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency, write latency = read latency  -1, Off-Chip Driver(OCD) impedance adjustment and On Die Termination. All of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the crosspoint of differential clocks (CK rising and CK falling). All I/Os are synchronized with a  pair of bidirectional strobes (DQS and DQS) in a source synchronous fashion. The address bus is used to convey row, column, and bank address  information in a RAS/CAS multiplexing style. For example, 512Mb(x8)  device receive 14/10/2 addressing.

The 512Mb DDR2 device operates with a single 1.8V ± 0.1V power supply  and 1.8V ± 0.1V VDDQ.

The 512Mb DDR2 device is available in 60ball FBGAs(x4/x8) and in 84ball  FBGAs(x16)

Product Features

• JEDEC standard VDD = 1.8V ± 0.1V Power Supply

• VDDQ = 1.8V ± 0.1V

• 333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/sec/pin and 533MHz fCK for 1066Mb/sec/pin

• 4 Banks

• Posted CAS

• Programmable CAS Latency: 3, 4, 5, 6

• Programmable Additive Latency: 0, 1 , 2 , 3, 4 , 5

• Write Latency(WL) = Read Latency(RL) -1

• Burst Length: 4 , 8(Interleave/Nibble sequential)

• Programmable Sequential / Interleave Burst Mode

• Bi-directional Differential Data-Strobe (Single-ended data-strobe is an optional feature)

• Off-Chip Driver(OCD) Impedance Adjustment

• On Die Termination

• Special Function Support

-50ohm ODT

-High Temperature Self-Refresh rate enable

• Average Refresh Period for commecial temp.: 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95 °C,

• All of products are Lead-Free, Halogen-Free, and RoHS compliant

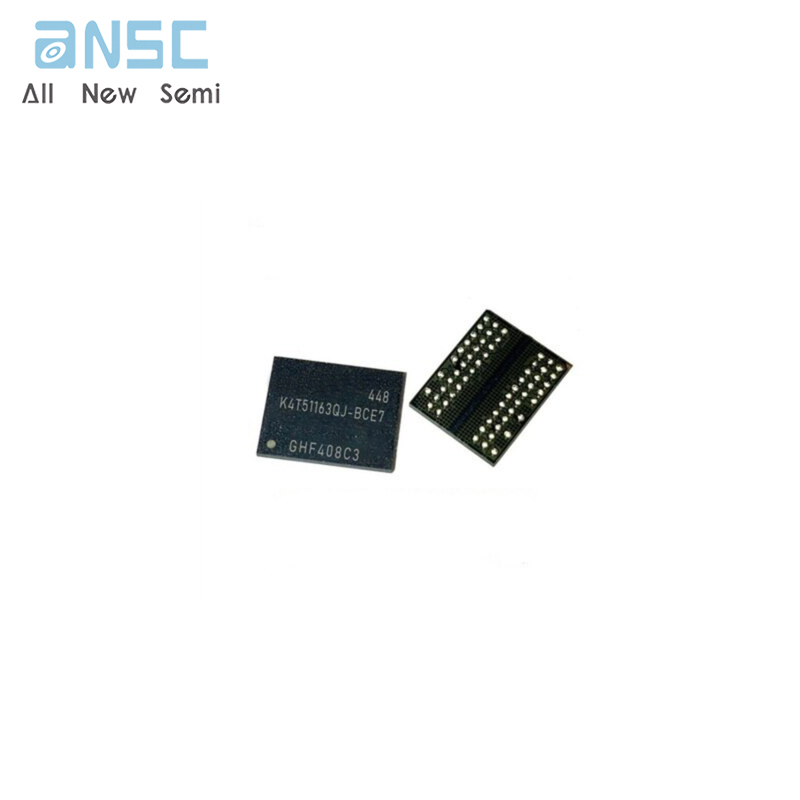

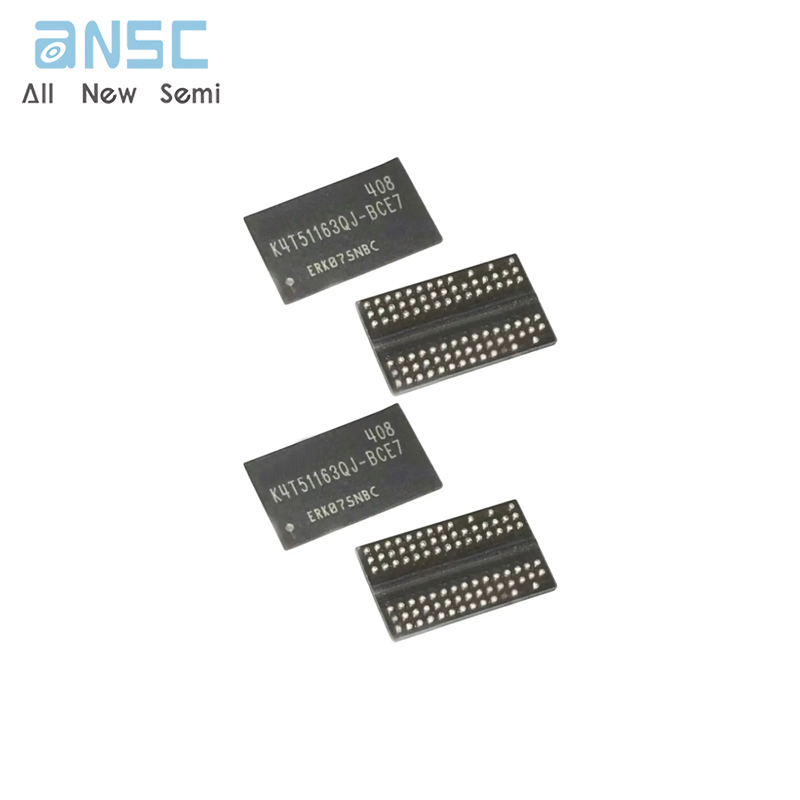

Product Photos



For more product information, please download the PDF
