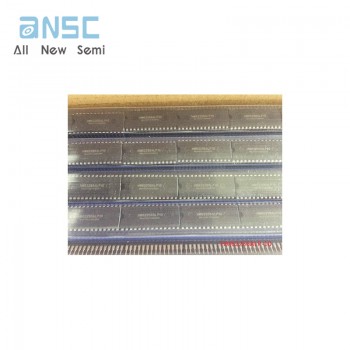

Hot sale Original HM62256ALP-10 IC Standard SRAM 32KX8 100ns CMOS PDIP28 0.600 INCH PLASTIC DIP-28
Manufacturer
Manufacturer Product Number
HM62256ALP-10
Description
HM62256ALP-10 IC Standard SRAM 32KX8 100ns CMOS PDIP28 0.600 INCH PLASTIC DIP-28
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
32,768-word ×8-bit High Speed CMOS Static RAM The HM62256A is a CMOS static RAM organized 32-kword ×8-bit. It realizes higher performance and low power consumption by employing 0.8 µm Hi-CMOS process technology. The device, packaged in a 8 ×14 mm TSOP with thickness of 1.2 mm, 450-mil SOP (foot print pitch width), 600-mil plastic DIP, or 300-mil plastic DIP, is available for high density mounting. TSOP package is suitable for cards, and reverse type TSOP is also provided. It offers low power standby power dissipation; therefore, it is suitable for battery back up system. Features • High speed: Fast Access time 85/100/120/150 ns (max) • Low Power Standby: 5 µW (typ) (L/L-SL version) Operation: 40 mW (typ) (f = 1 MHz) • Single 5 V supply • Completely static memory No clock or timing strobe required • Equal access and cycle times • Common data input and output: Three state output • Directly TTL compatible: All inputs and outputs • Capability of battery back up operation |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-HM62256ALP-10 |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | 0.600 INCH, PLASTIC, DIP-28 |
| Pin Count | 28 |
| Access Time-Max | 100 ns |
| I/O Type | COMMON |
| JESD-30 Code | R-PDIP-T28 |
| JESD-609 Code | e0 |
| Length | 35.6 mm |
| Memory Density | 262144 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 28 |
| Number of Words | 32768 words |
| Number of Words Code | 32000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Organization | 32KX8 |
| Output Characteristics | 3-STATE |
| Output Enable | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.7 mm |
| Standby Current-Max | 0.00001 A |
| Standby Voltage-Min | 2 V |
| Supply Current-Max | 0.07 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
