Hot sale original electronics IC IDT82V2108PX Telecommunication Circuits Framer, CMOS, PQFP128, PLASTIC, QFP-128
Manufacturer
Manufacturer Product Number
IDT82V2108PX
Description
IC IDT82V2108PX Telecommunication Circuits Framer, CMOS, PQFP128, PLASTIC, QFP-128
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The IDT82V2044 is a single chip, 4-channel T1/E1 short haul PCM transceiver with a reference clock of 1.544 MHz (T1) or 2.048 MHz (E1). The IDT82V2044 contains 4 transmitters and 4 receivers. FEATURES ♦ Fully integrated quad T1/E1 short haul line interface which supports 100 Ω T1 twisted pair, 120 Ω E1 twisted pair and 75 Ω E1 coaxial applications ♦ Selectable Single Rail mode or Dual Rail mode and AMI or B8ZS/HDB3 encoder/decoder ♦ Built-in transmit pre-equalization meets G.703 & T1.102 ♦ Selectable transmit/receive jitter attenuator meets ETSI CTR12/ 13, ITU G.736, G.742, G.823 and AT&T Pub 62411 specifications ♦ SONET/SDH optimized jitter attenuator meets ITU G.783 mapping jitter specification ♦ Digital/Analog LOS detector meets ITU G.775, ETS 300 233 and T1.231 ♦ ITU G.772 non-intrusive monitoring for in-service testing for any one of channel 1 to channel 3 ♦ Low impedance transmit drivers with high-Z ♦ Selectable hardware and parallel/serial host interface ♦ Local, Remote and Inband Loopback test functions ♦ Hitless Protection Switching (HPS) for 1 + 1 protection without relays ♦ JTAG boundary scan for board test ♦ 3.3 V supply with 5 V tolerant I/O ♦ Low power consumption ♦ Operating temperature range: -40°C to +85°C ♦ Available in 144-pin Thin Quad Flat Pack (TQFP) and 160-pin Plastic Ball Grid Array (PBGA) packages Green package options available |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- IDT82V2108PX |
| Ihs Manufacturer | Original |
| Part Package Code | QFP |
| Package Description | PLASTIC, QFP-128 |
| Pin Count | 128 |
| Length | 20 mm |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 128 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | FQFP |
| Package Equivalence Code | QFP128,.67X.93,20 |
| Package Shape | RECTANGULAR |
| Package Style | FLATPACK, FINE PITCH |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.4 mm |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Telecom IC Type | FRAMER |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Width | 14 mm |

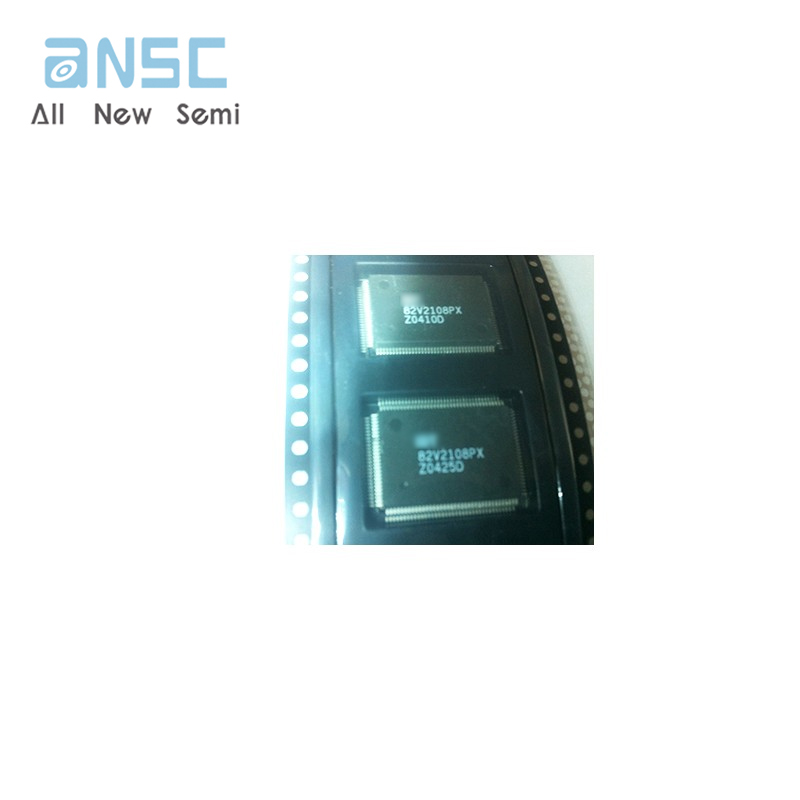

Actual image of the product

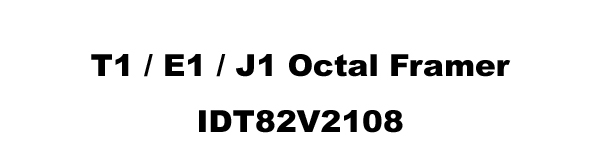

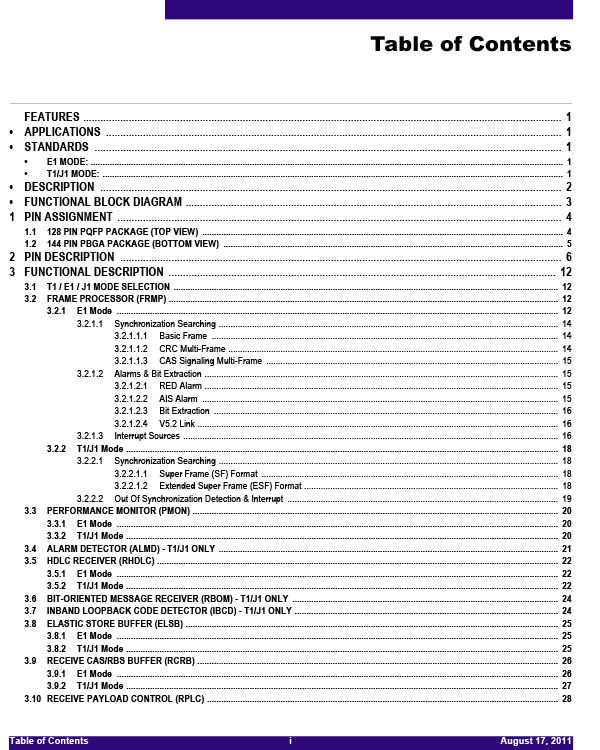

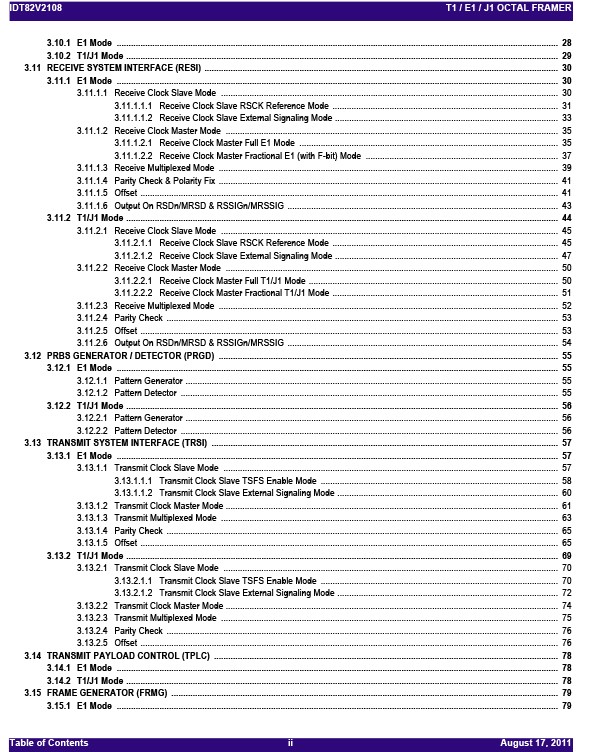

Product datasheet
For more information, please download
