Hot sale Original ML7815A Power Circuits Fixed Positive Standard Regulator 15VBIPolar PSFM3 TO-220 3 PIN

Manufacturer
Original
Manufacturer Product Number
ML7815A
Description

ML7815A Power Circuits Fixed Positive Standard Regulator 15VBIPolar PSFM3 TO-220 3 PIN

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Voltage Regulators, these devices can be used with external components to obtain adjustable output voltages and currents.

* Parts of FBE are satisfied with requirements of directive 2002/95/EC on RoHS.

Product Description

Type# Description
ANSC PART# ANSC- ML7815A
Ihs Manufacturer Original
Package Description TO-220, SIP3,.1TB
Adjustability FIXED
Dropout Voltage1-Nom 3.25 V
Input Voltage Absolute-Max 35 V
Input Voltage-Max 30 V
Input Voltage-Min 17.5 V
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Line Regulation-Max 0.30%
Load Regulation-Max 0.30%
Number of Functions ​1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 150 °C
Operating Temperature TJ-Min -30 °C
Output Current1-Max 1 A
Output Voltage1-Max 15.6 V
Output Voltage1-Min 14.4 V
Output Voltage1-Nom 15 V
Package Body Material PLASTIC/EPOXY
Package Code TO-220
Package Equivalence Code SIP3,.1TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Surface Mount NO
Technology BIPOLAR
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Voltage Tolerance-Max 5%

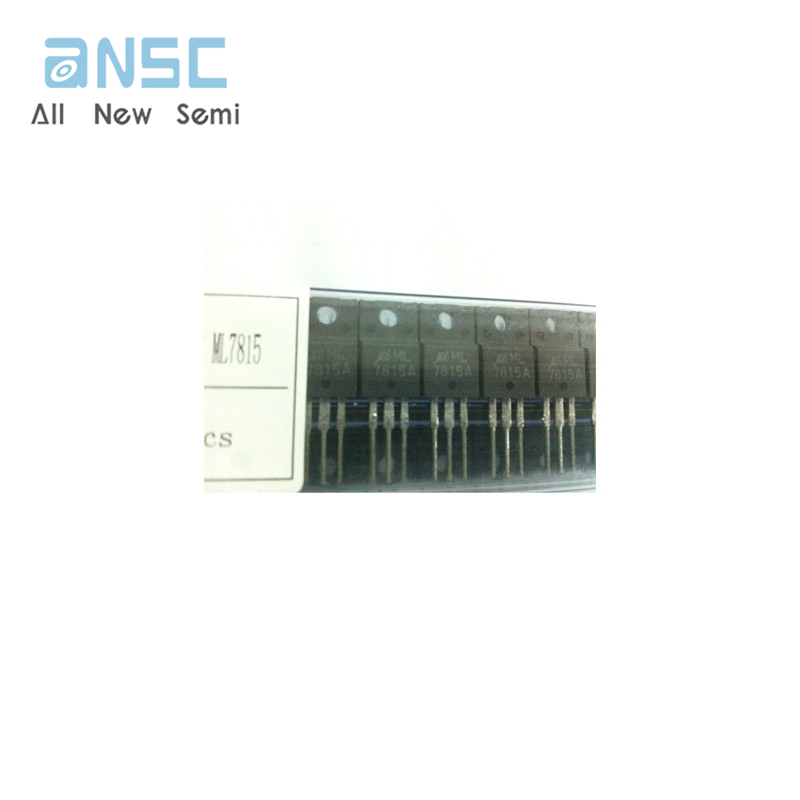

Actual image of the product

   ML7815A
