Product Descriptions

The RK805 is a complete power supply solution for Portable systems. The highly integrated device includes four buck DC-DC converters, three high performance ldos, I2C interface, programmable power sequencing and an RTC.

The RK805 improves performance, reduces component count and size, and therefore provides lower cost solution compared to conventional portable designs. The ultra fast 2MHz current mode DC/DC architecture optimizes the transient performance and is compatible with tiny low

cost ceramic inductors and capacitors. All DC/DC channels include integrated MOSFETS.

Internal soft-start and compensation circuits minimize external components count. Most outputs can be programmed through the I2C interface

The RK805 integrates internal RC oscillator for low cost application which without RTC function.

Product Features

•  Input voltage range: 2.7V to 5.5V

•  2MHz Switching Frequency for bucks

•  Current mode architecture for best transient performance

•  Internal compensation and soft start

•  I2C Programmable output levels and power sequencing

•  High efficiency architecture

•  Integrated Vout Discharge Circuit for BUCK and LDO

•  Power:

• CH1: Synchronous Buck regulator, 2.5A max

• CH2: Synchronous Buck regulator, 2.5A max

• CH3: Synchronous Buck regulator, 1.5A max

• CH4: Synchronous Buck regulator, 1.5A max

• CH5,CH6: Linear regulators, 300mA max

• CH7: Low noise and high PSRR linear regulator,100mA max

•  Auxiliary: Flexible Power Sequence control

•  Package: 4mmx4mm QFN32 (pitch 0.4mm)

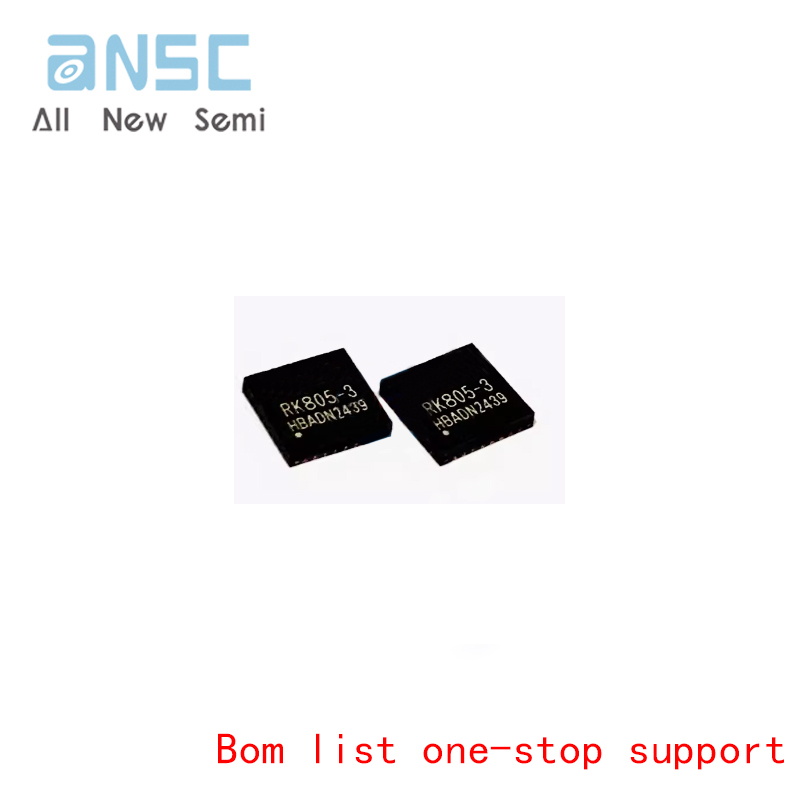

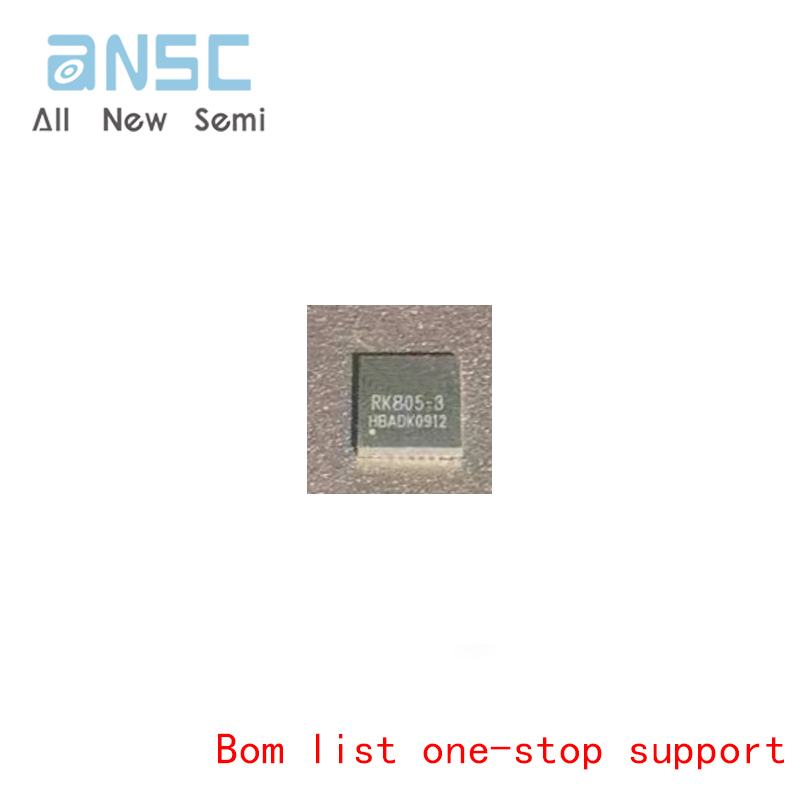

Actual product photos

Product Data Manual：

​For more product information, please download the PDF
