Hot sale Original MAX3232EUE IC Line Transceiver 1 Func 2 Driver 2 Rcvr CMOS PDSO16 4.40 MM 0.65 MM PITCH MO-153AC TSSOP-16

Manufacturer
Original
Manufacturer Product Number
MAX3232EUE
Description

Original MAX3232EUE IC Line Transceiver 1 Func 2 Driver 2 Rcvr CMOS PDSO16 4.40 MM 0.65 MM PITCH MO-153AC TSSOP-16

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

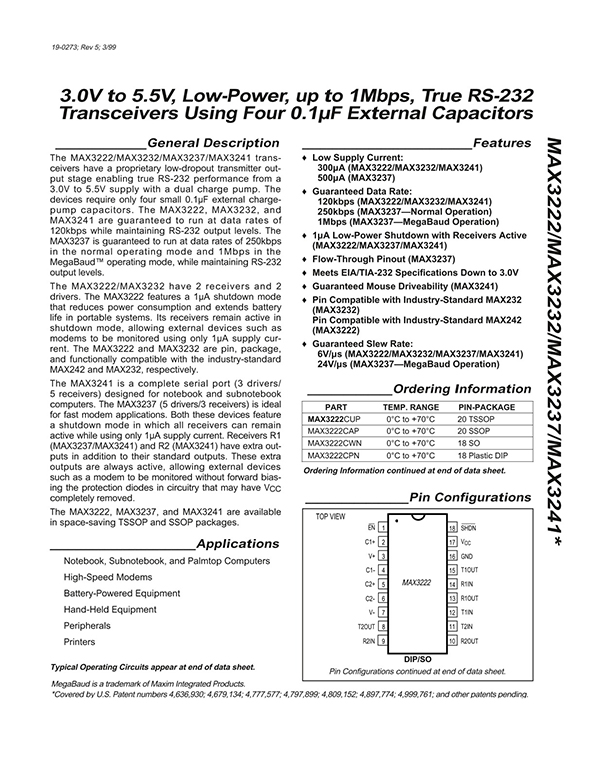

General Description
The MAX3222/MAX3232/MAX3237/MAX3241 transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1µF external charge pump capacitors. The MAX3222, MAX3232, and MAX3241 are guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3237 is guaranteed to run at data rates of 250kbps in the normal operating mode and 1Mbps in the MegaBaud™ operating mode, while maintaining RS-232 output levels.
Features
♦ Low Supply Current:
300µA (MAX3222/MAX3232/MAX3241)
500µA (MAX3237)
♦ Guaranteed Data Rate:
120kbps (MAX3222/MAX3232/MAX3241)
250kbps (MAX3237—Normal Operation)
1Mbps (MAX3237—MegaBaud Operation)
♦ 1µA Low-Power Shutdown with Receivers Active
(MAX3222/MAX3237/MAX3241)
♦ Flow-Through Pinout (MAX3237)
♦ Meets EIA/TIA-232 Specifications Down to 3.0V
♦ Guaranteed Mouse Driveability (MAX3241)
♦ Pin Compatible with Industry-Standard MAX232 (MAX3232)
Pin Compatible with Industry-Standard MAX242 (MAX3222)
♦ Guaranteed Slew Rate:
6V/µs (MAX3222/MAX3232/MAX3237/MAX3241)
24V/µs (MAX3237—MegaBaud Operation)
Applications
Notebook, Subnotebook, and Palmtop Computers
High-Speed Modems
Battery-Powered Equipment
Hand-Held Equipment
Peripherals
Printers

Product Description

Type# Description
ANSC PART# ANSC- MAX3232EUE
Part# MAX3232EUE
Type： Integrated Circuits
Manufactor Original
DC new
Part Status Active
Product packaging TSSOP

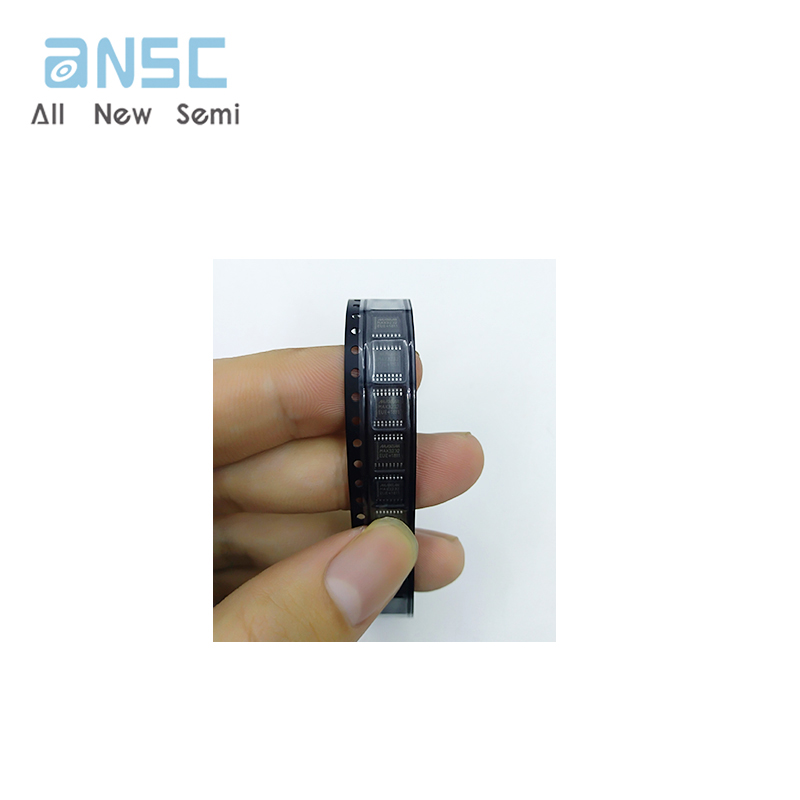

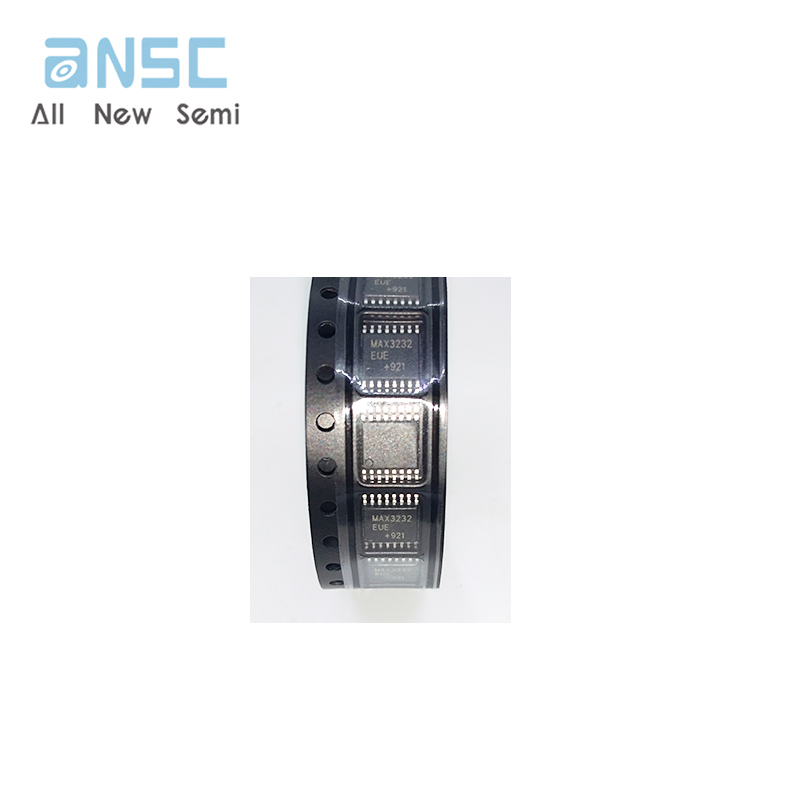

Product Photos

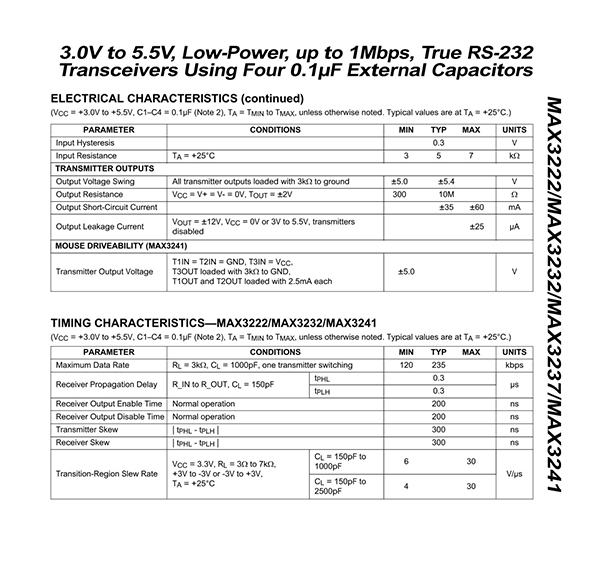

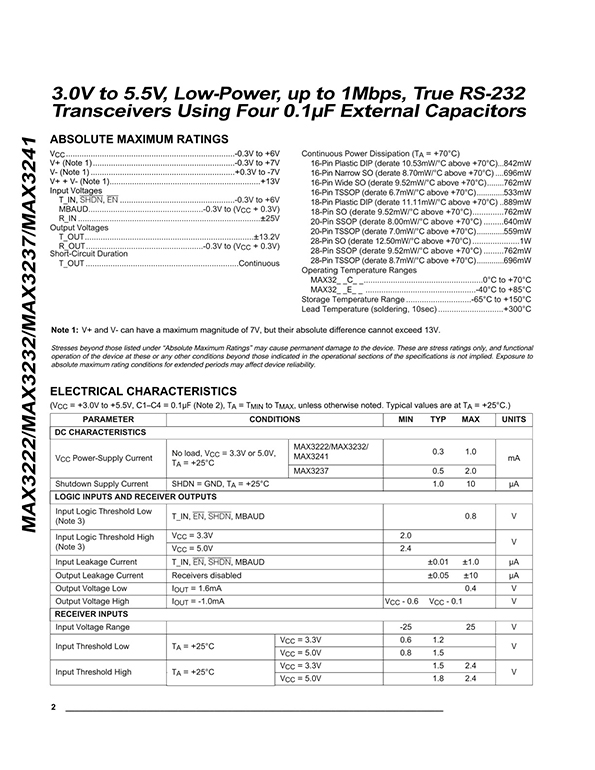

Product datasheet

For more information, please download






Payment&Transportation

详情8

Official Certificate&Certificate

2

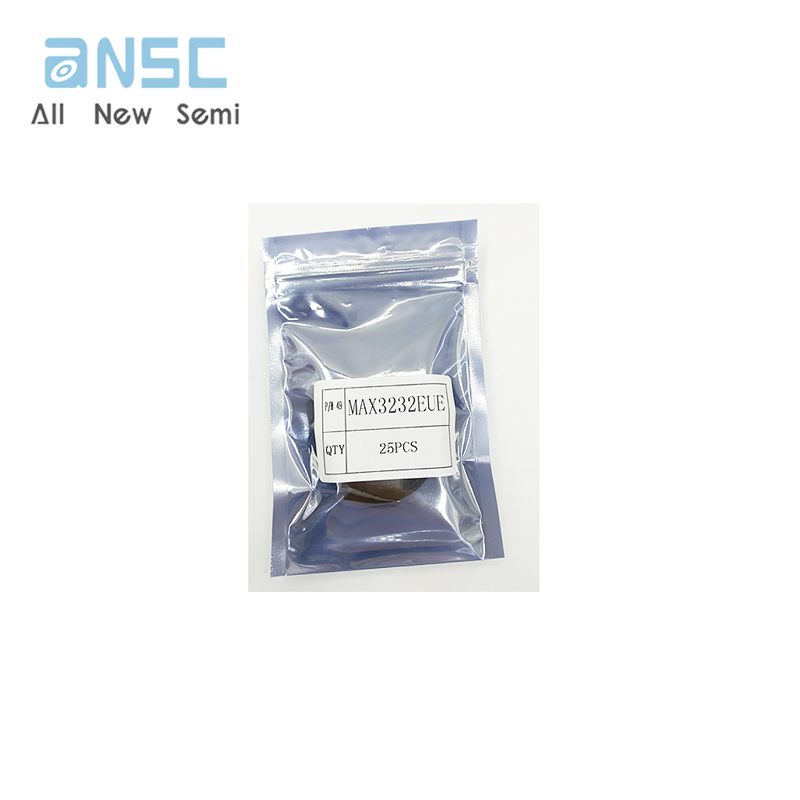

Standard packaging
