Recommended Hot Products A80960HD50 32-Bit High-Performance Superscalar Processor Quality Online Assurance

Manufacturer
Manufacturer Product Number
A80960HD50
Description

A80960HD50 32-Bit High-Performance Superscalar Processor

Datasheet

Product Descriptions

■ 32-Bit Parallel Architecture

—Load/Store Architecture

—Sixteen 32-Bit Global Registers

—Sixteen 32-Bit Local Registers

—1.28 Gbyte Internal Bandwidth (80 MHz)

—On-Chip Register Cache

■ Processor Core Clock

—80960HA is 1x Bus Clock

—80960HD is 2x Bus Clock

—80960HT is 3x Bus Clock

■ Binary Compatible with Other 80960 Processors

■ Issue Up To 150 Million Instructions per Second

■ High-Performance On-Chip Storage

—16 Kbyte Four-Way Set-Associative Instruction Cache

—8 Kbyte Four-Way Set-Associative Data Cache

—2 Kbyte General Purpose RAM

—Separate 128-Bit Internal Paths For Instructions/Data

■ 3.3 V Supply Voltage

—5 V Tolerant Inputs

—TTL Compatible Outputs

■ Guarded Memory Unit

—Provides Memory Protection

—User/Supervisor Read/Write/Execute

■ 32-Bit Demultiplexed Burst Bus

—Per-Byte Parity Generation/Checking

—Address Pipelining Option

—Fully Programmable Wait State Generator

—Supports 8-, 16- or 32-Bit Bus Widths

—160 Mbyte/s External Bandwidth (40 MHz)

■ High-Speed Interrupt Controller

—Up to 240 External Interrupts

—31 Fully Programmable Priorities

—Separate, Non-maskable Interrupt Pin

■ Dual On-Chip 32-Bit Timers

—Auto Reload Capability and One-Shot

—CLKIN Prescaling, ÷1, 2, 4 or 8

—JTAG Support - IEEE 1149.1 Compliant

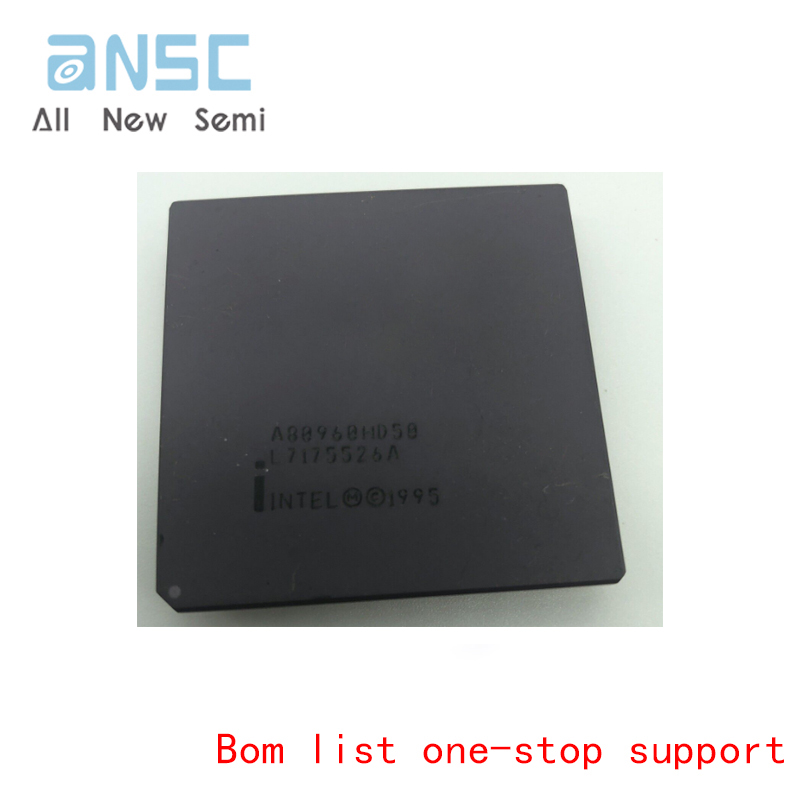

Actual product photos

A80960HD50

Product Data Manual:

搜狗高速浏览器截图20240905112701

搜狗高速浏览器截图20240905112705

搜狗高速浏览器截图20240905112712

​For more product information, please download the PDF
