Recommended Hot Products A80960JD66 3.3 V EMBEDDED 32-BIT MICROPROCESSOR Quality Online Assurance

Product Descriptions

■ Pin/Code Compatible with all 80960Jx  Processors

■ High-Performance Embedded Architecture

— One Instruction/Clock Execution

— Core Clock Rate is 2x the Bus Clock

— Load/Store Programming Model

— Sixteen 32-Bit Global Registers

— Sixteen 32-Bit Local Registers (8 sets)

— Nine Addressing Modes

— User/Supervisor Protection Model

■ Two-Way Set Associative Instruction Cache

— 80960JD - 4 Kbyte

— Programmable Cache Locking  Mechanism

■ Direct Mapped Data Cache

— 80960JD - 2 Kbyte

— Write Through Operation

■ On-Chip Stack Frame Cache

— Seven Register Sets Can Be Saved

— Automatic Allocation on Call/Return

— 0-7 Frames Reserved for High-Priority  Interrupts

■ On-Chip Data RAM

— 1 Kbyte Critical Variable Storage

— Single-Cycle Access

■ 3.3 V Supply Voltage

— 5 V Tolerant Inputs

— TTL Compatible Outputs

■ High Bandwidth Burst Bus

— 32-Bit Multiplexed Address/Data

— Programmable Memory Configuration

— Selectable 8-, 16-, 32-Bit Bus Widths

— Supports Unaligned Accesses

— Big or Little Endian Byte Ordering

■ High-Speed Interrupt Controller

— 31 Programmable Priorities

— Eight Maskable Pins plus NMI

— Up to 240 Vectors in Expanded Mode

■ Two On-Chip Timers

— Independent 32-Bit Counting

 — Clock Prescaling by 1, 2, 4 or 8

— lnternal Interrupt Sources

■ Halt Mode for Low Power

■ IEEE 1149.1 (JTAG) Boundary Scan  Compatibility

■ Packages — 132-Lead Pin Grid Array (PGA) — 132-Lead Plastic Quad Flat Pack (PQFP)

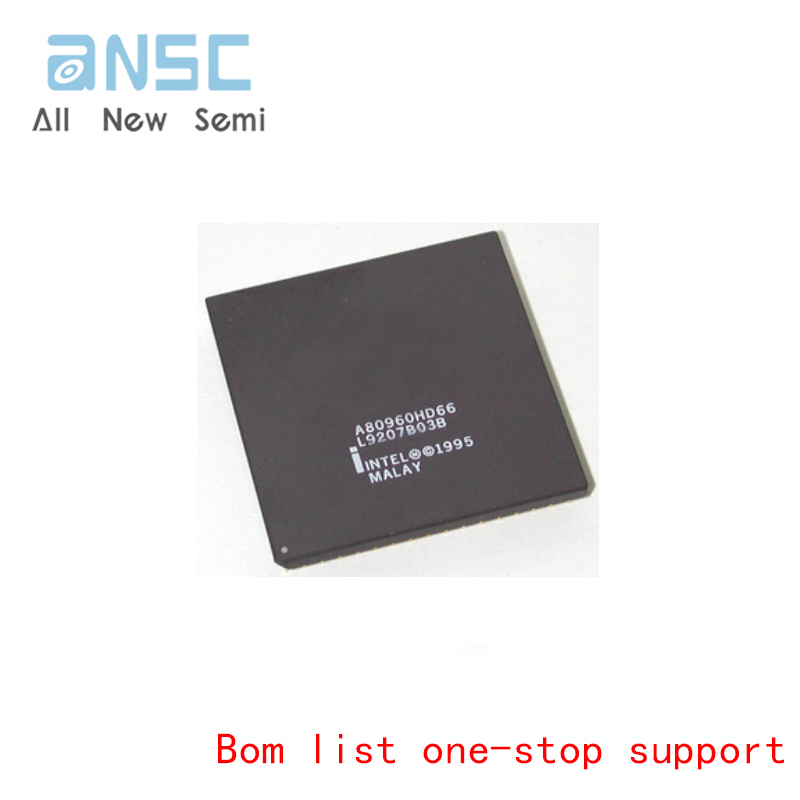

Actual product photos
