Hot sale Original AD5360BCPZ IC DAC 16 Bit Digital to Analog Converters (DAC) 16 D/A Converters External String DAC 56-VFQFN
Manufacturer Product Number
AD5360BCPZ
Description
Original AD5360BCPZ IC DAC 16 Bit Digital to Analog Converters (DAC) 16 D/A Converters Voltage - Buffered SPI, DSP External String DAC 56-VFQFN Exposed Pad, CSP
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description The AD5360BCPZ is a 16-bit, dual-supply, voltage-output digital-to-analog converter (DAC). This high-performance DAC is designed for a wide range of applications, including data acquisition, test and measurement, and industrial control systems. With its compact 56-VFQFN exposed pad package and surface-mount technology, the AD5360BCPZ is ideal for space-constrained designs. Product Features · 16-bit resolution with ±4 LSB (max) INL and ±1 LSB (max) DNL · Dual-supply voltage operation: 9V (nominal) with a maximum of 16.5V · SPI and DSP data interfaces for easy integration · Operating temperature range: -40°C to 85°C · High-speed sampling rate: 540 ksps · Low power dissipation: 130mW (typical) · Compact package: 8mm x 8mm x 0.83mm Product Applications · Data acquisition systems · Test and measurement equipment · Industrial control systems · Medical devices · Aerospace and defense applications |
Product Description
| Type |
Description |
| ANSC PART# | ANSC -AD5360BCPZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Number of Bits | 16 |
| Number of D/A Converters | 16 |
| Settling Time | 30µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 8V ~ 16.5V, -4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±4 (Max), ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
| Mounting Type | Surface Mount |
| Base Product Number | AD5360 |

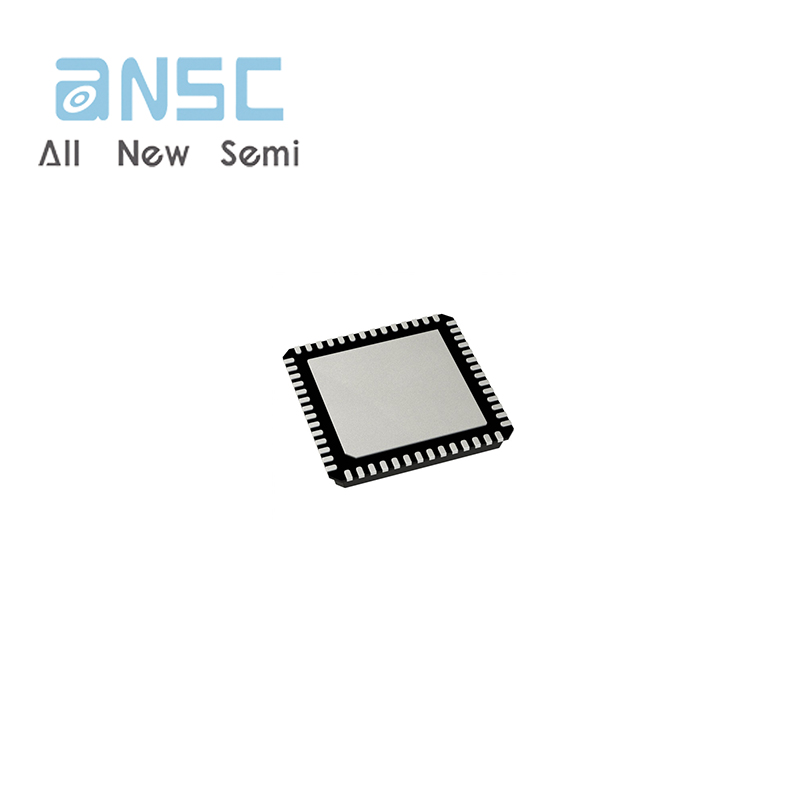

Product Photos

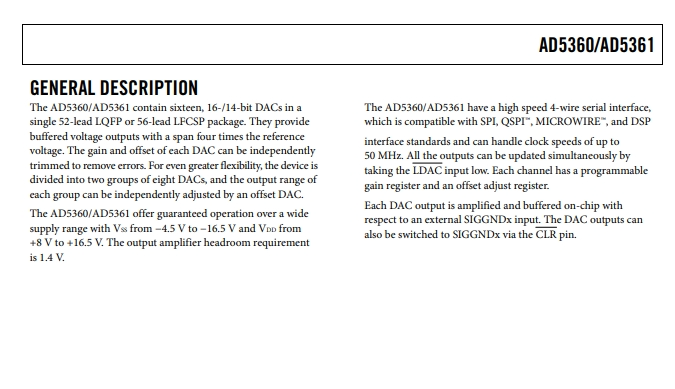

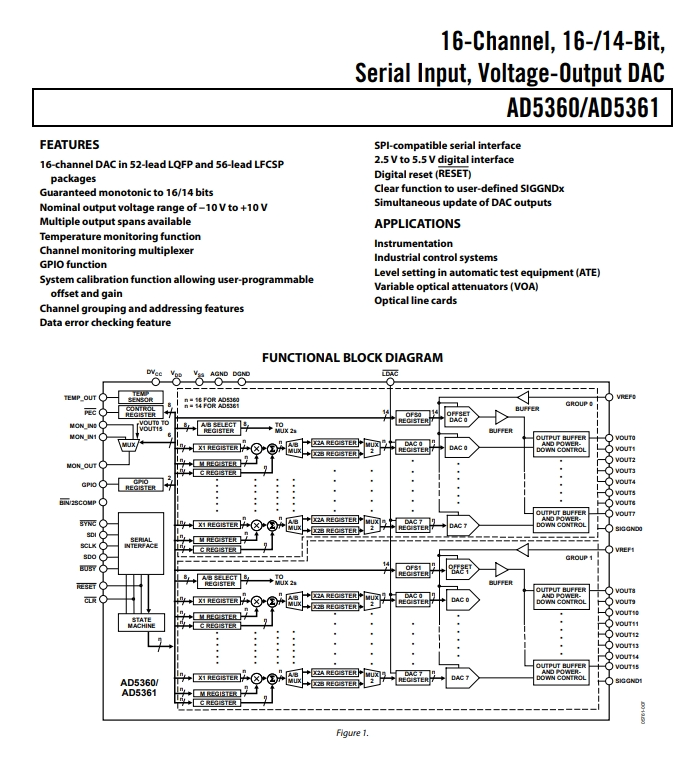

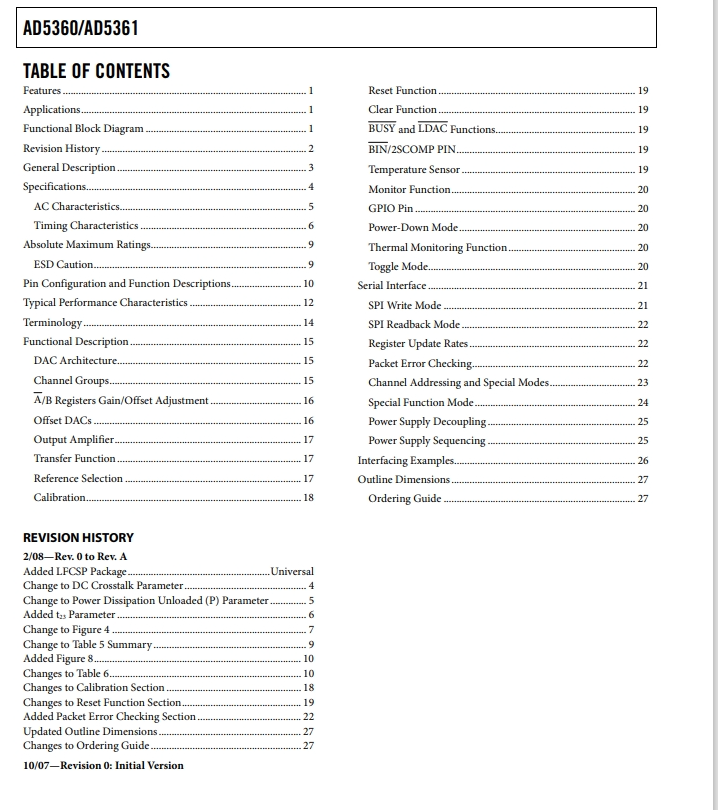

Product datasheet
For more information, please download
