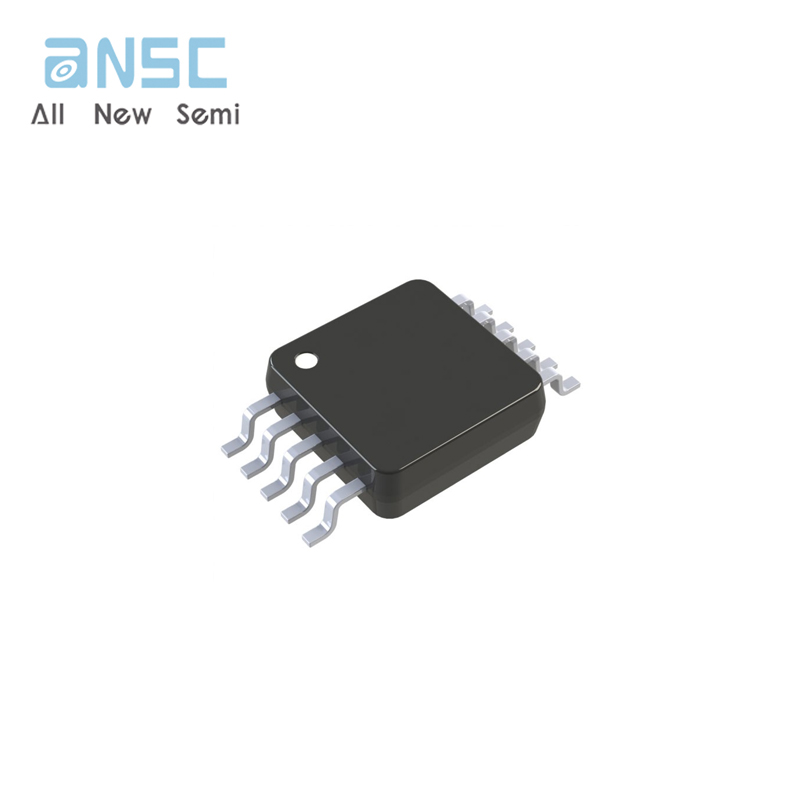

Hot sale Original ADG704BRM Interface IC SWITCH SP4T X 1 4OHM 10MSOP 1 Circuit IC Switch 4:1 4Ohm 10-MSOP
Manufacturer Product Number
ADG704BRM
Description
Original ADG704BRM Interface IC SWITCH SP4T X 1 4OHM 10MSOP 1 Circuit IC Switch 4:1 4Ohm 10-MSOP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

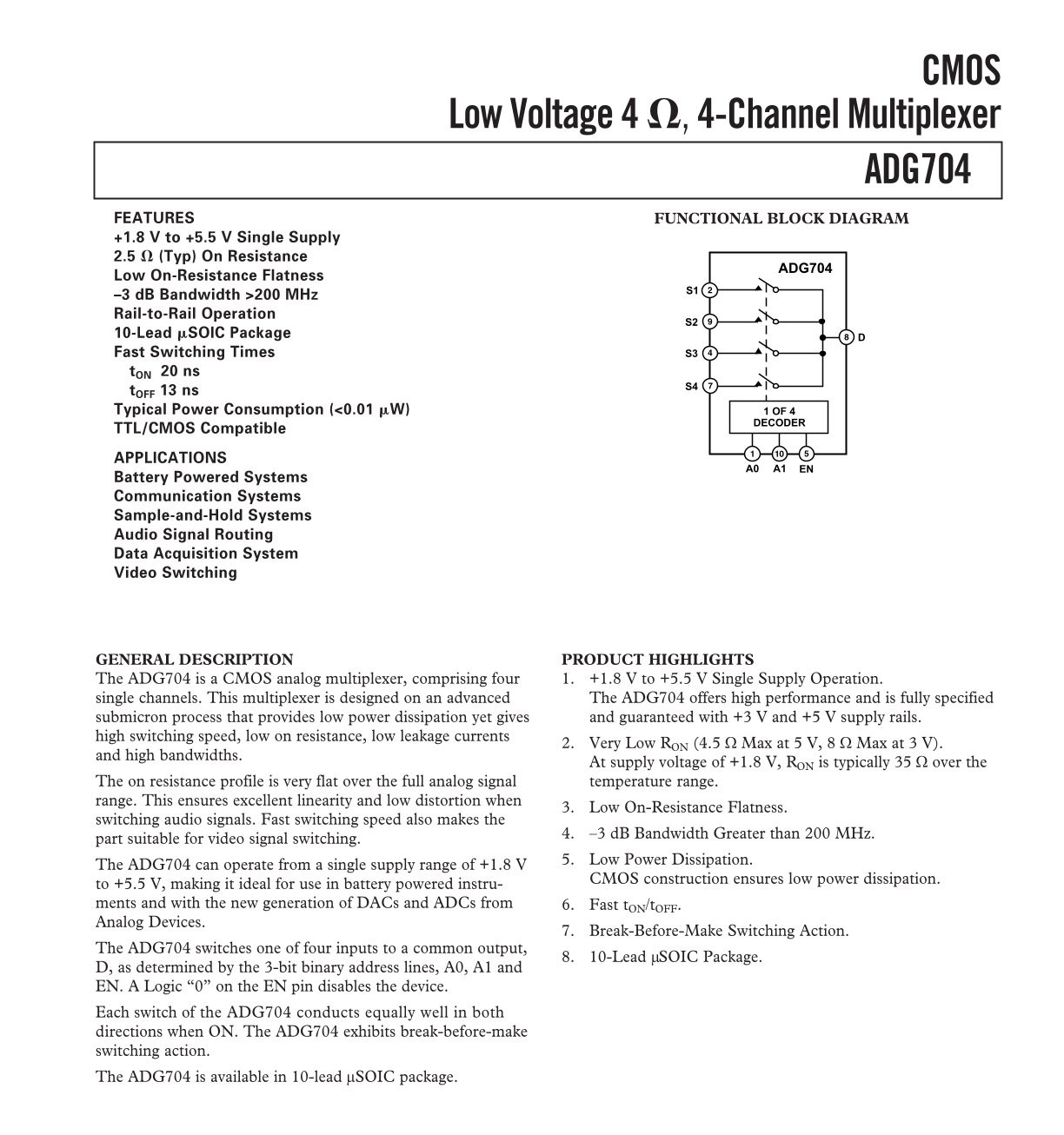

| GENERAL DESCRIPTION The ADG704 is a CMOS analog multiplexer, comprising four single channels. This multiplexer is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidths. The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching. PRODUCT HIGHLIGHTS 1. +1.8 V to +5.5 V Single Supply Operation. The ADG704 offers high performance and is fully specified and guaranteed with +3 V and +5 V supply rails. 2. Very Low RON (4.5 Ω Max at 5 V, 8 Ω Max at 3 V). At supply voltage of +1.8 V, RON is typically 35 Ω over the temperature range. 3. Low On-Resistance Flatness. 4. –3 dB Bandwidth Greater than 200 MHz. 5. Low Power Dissipation. CMOS construction ensures low power dissipation. 6. Fast tON/tOFF. 7. Break-Before-Make Switching Action. 8. 10-Lead µSOIC Package. FEATURES +1.8 V to +5.5 V Single Supply 2.5 V (Typ) On Resistance Low On-Resistance Flatness –3 dB Bandwidth >200 MHz Rail-to-Rail Operation 10-Lead mSOIC Package Fast Switching Times tON 20 ns tOFF 13 ns Typical Power Consumption (<0.01 mW) TTL/CMOS Compatible APPLICATIONS Battery Powered Systems Communication Systems Sample-and-Hold Systems Audio Signal Routing Data Acquisition System Video Switching |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG704BRM |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 6ns (Typ) |
| -3db Bandwidth | 200MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 37pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -82dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | ADG704 |
Product Photos

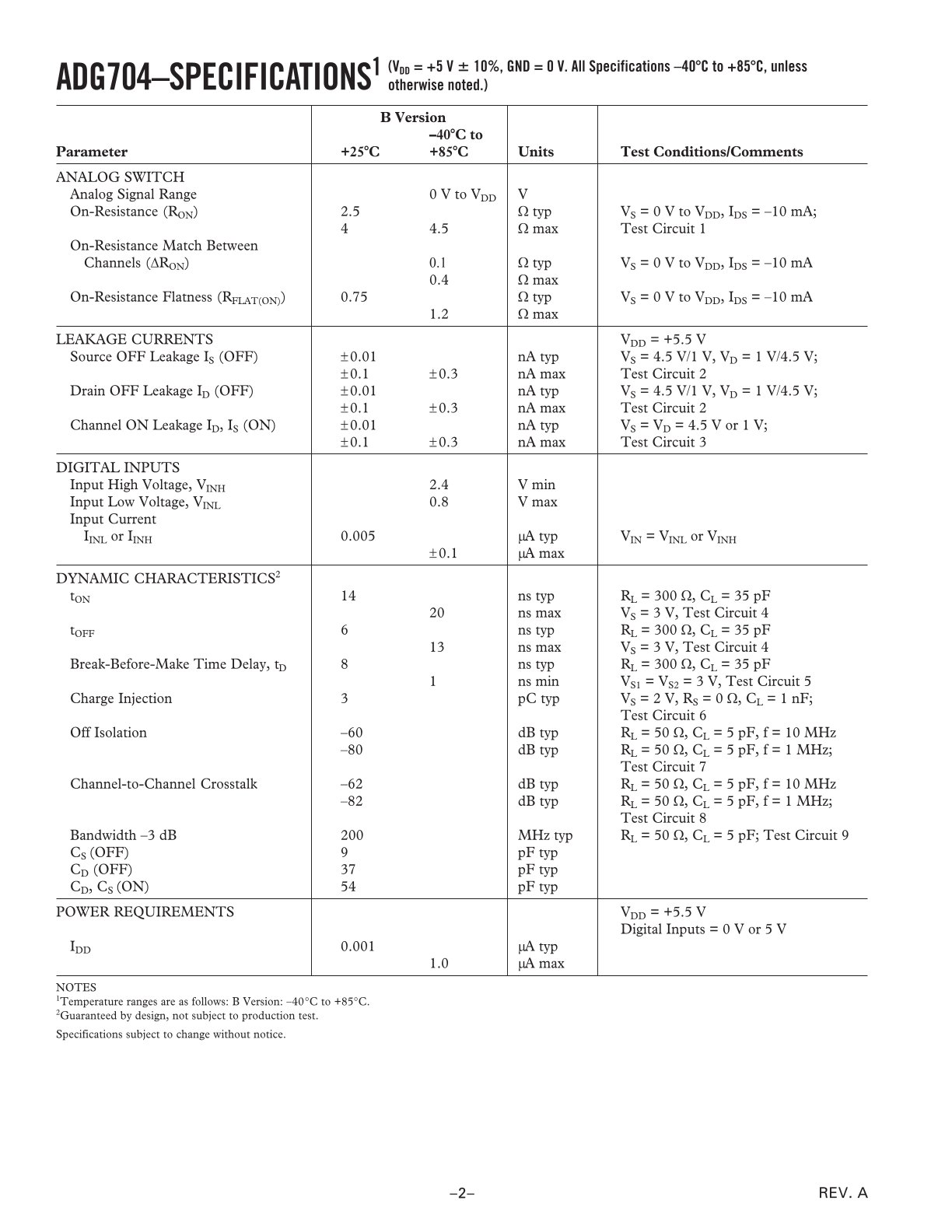

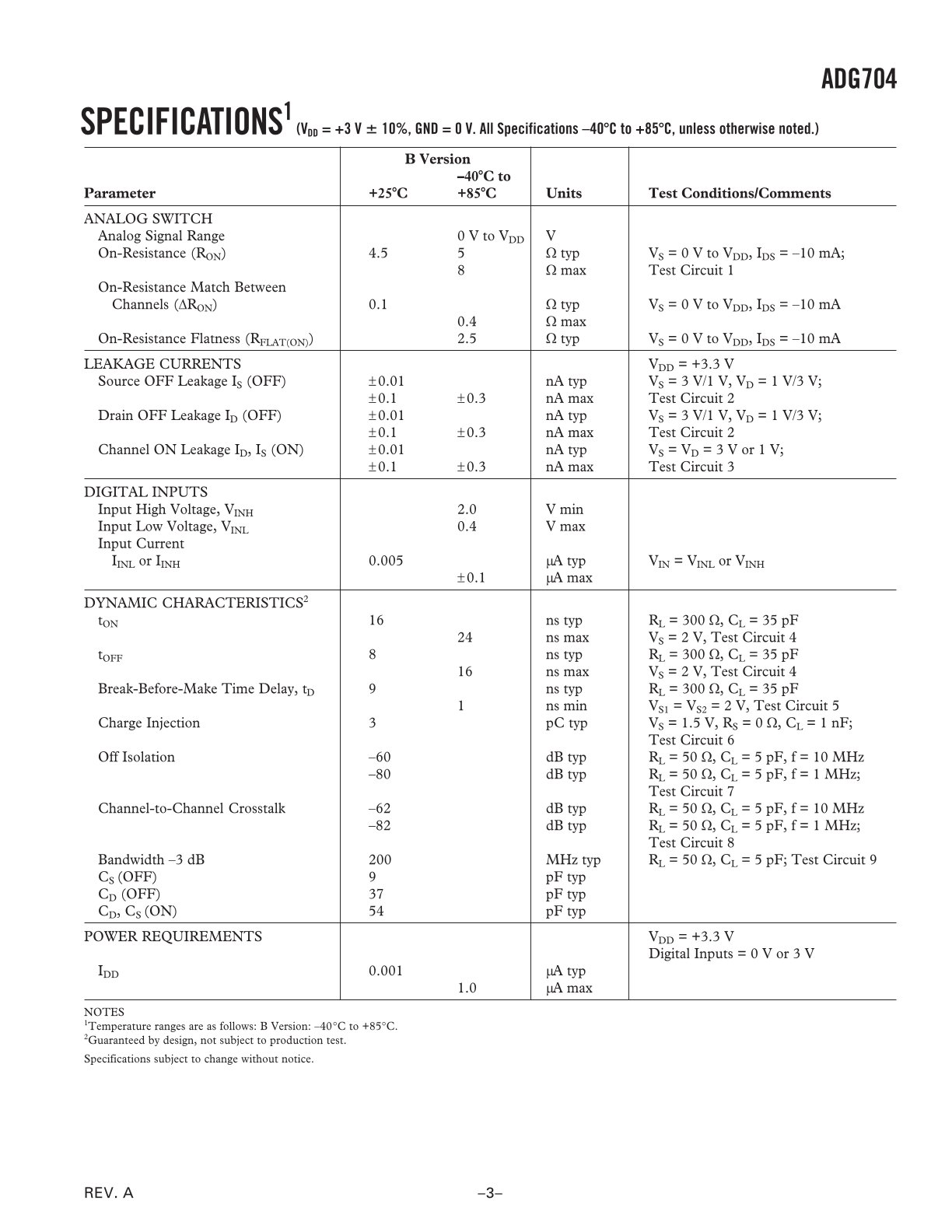

Product datasheet
