Hot sale original LTC1853IFW IC ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, PDSO48
Manufacturer Product Number
LTC1853IFW
Description
LTC1853IFW IC ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, PDSO48
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

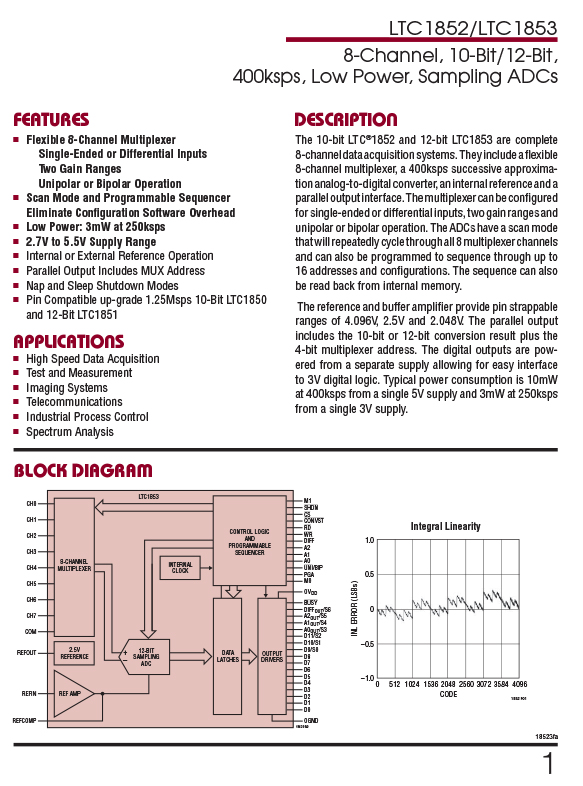

| DESCRIPTION The 10-bit LTC®1852 and 12-bit LTC1853 are complete 8-channel data acquisition systems. They include a flexible 8-channel multiplexer, a 400ksps successive approximation analog-to-digital converter, an internal reference and a parallel output interface. The multiplexer can be configured for single-ended or differential inputs, two gain ranges and unipolar or bipolar operation. The ADCs have a scan mode that will repeatedly cycle through all 8 multiplexer channels and can also be programmed to sequence through up to 16 addresses and configurations. The sequence can also be read back from internal memory. FEATURES ■ Flexible 8-Channel Multiplexer Single-Ended or Differential Inputs Two Gain Ranges Unipolar or Bipolar Operation ■ Scan Mode and Programmable Sequencer Eliminate Confi guration Software Overhead ■ Low Power: 3mW at 250ksps ■ 2.7V to 5.5V Supply Range ■ Internal or External Reference Operation ■ Parallel Output Includes MUX Address ■ Nap and Sleep Shutdown Modes ■ Pin Compatible up-grade 1.25Msps 10-Bit LTC1850 and 12-Bit LTC1851 APPLICATIONS ■ High Speed Data Acquisition ■ Test and Measurement ■ Imaging Systems ■ Telecommunications ■ Industrial Process Control ■ Spectrum Analysis |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LTC1853IFW |
| Manufacturer | Original |
| Package Description | PLASTIC, TSSOP-48 |
| Analog Input Voltage-Max | 2.048 V |
| Analog Input Voltage-Min | -2.048 V |
| Conversion Time-Max | 3 µs |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION |
| Length | 12.5 mm |
| Linearity Error-Max (EL) | 0.02% |
| Moisture Sensitivity Level | 1 |
| Number of Analog In Channels | 8 |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 48 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY |
| Output Format | PARALLEL, WORD |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Qualification Status | Not Qualified |
| Sample Rate | 0.4 MHz |
| Sample and Hold / Track and Hold | SAMPLE |
| Seated Height-Max | 1.2 mm |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | DUAL |
| Width | 6.1 mm |

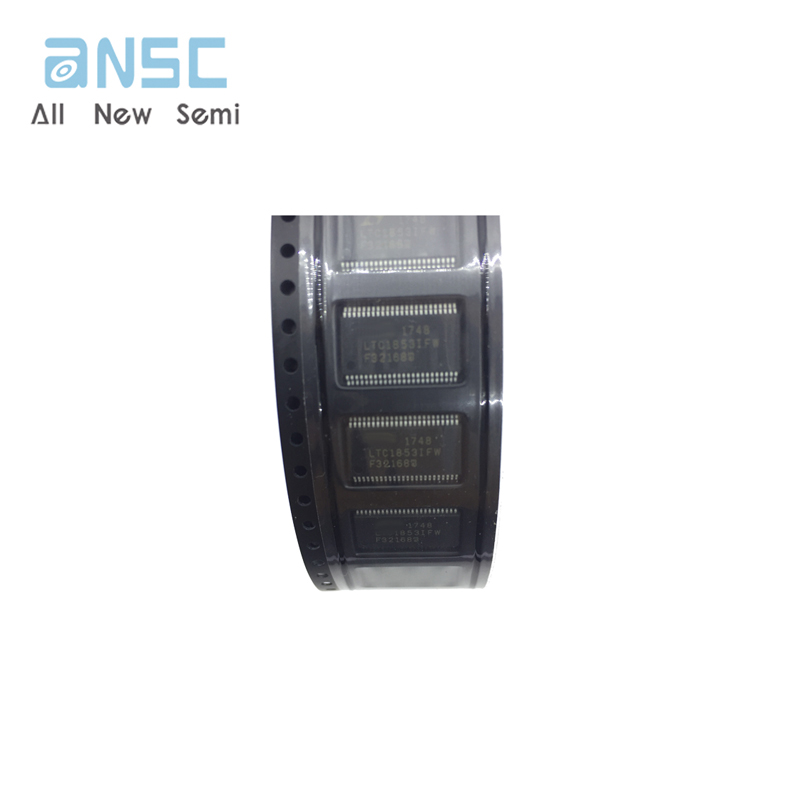

Product Photos

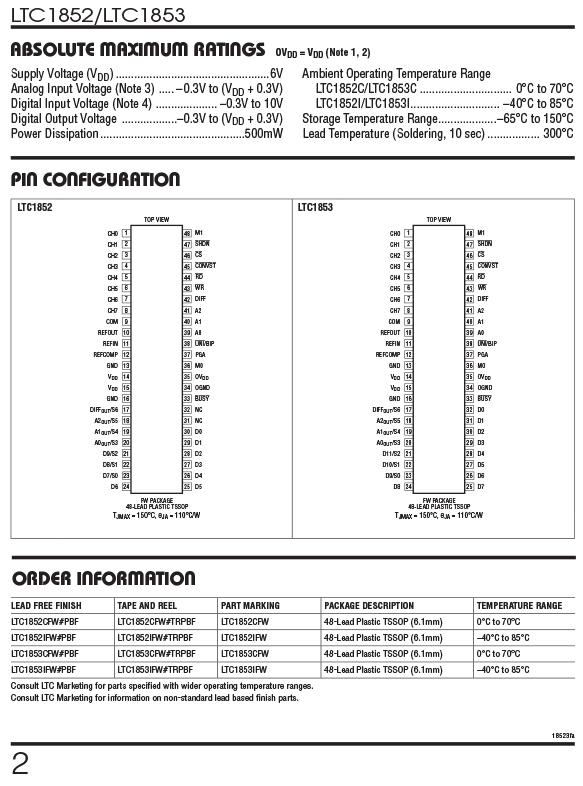

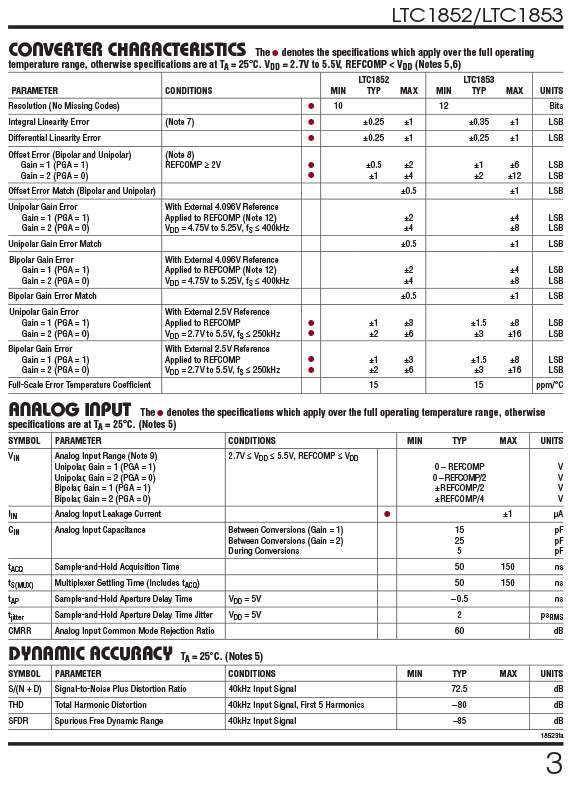

Product datasheet
For more information, please download
