Hot sale Original ATF16V8BQL-25PC IC PLD 8CELL LOW PWR 25NS 20DIP 16V8 Programmable Logic Device (PLD) IC 8 Macrocells 20-PDIP

Product Details

The ATF16V8B is a high-performance CMOS (electricallyerasable) programmable logic device (PLD) that utilizes Atmel’s proven electrically-erasable Flash memory technology. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges.

Several low-power options allow selection of the best solution for various types of power-limited applications. Each of these options significantly reduces total system power and enhances system reliability.

Product Features

Industry-standard Architecture

   – Emulates Many 20-pin PALs®

   – Low-cost Easy-to-use Software Tools

 High-speed Electrically-erasable Programmable Logic Devices

   – 10 ns Maximum Pin-to-pin Delay

 Several Power Saving Options

 CMOS and TTL Compatible Inputs and Outputs

   – Input and I/O Pull-up Resistors

 Advanced Flash Technology

   – Reprogrammable

   – 100% Tested

 High-reliability CMOS Process

   – 20 Year Data Retention

   – 100 Erase/Write Cycles

   – 2,000V ESD Protection

   – 200 mA Latchup Immunity

 Commercial, and Industrial Temperature Ranges

 Dual-in-line and Surface Mount Packages in Standard Pinouts

 PCI-compliant

 Green Package Options (Pb/Halide-free/RoHS Compliant) Available

 Product Attributes

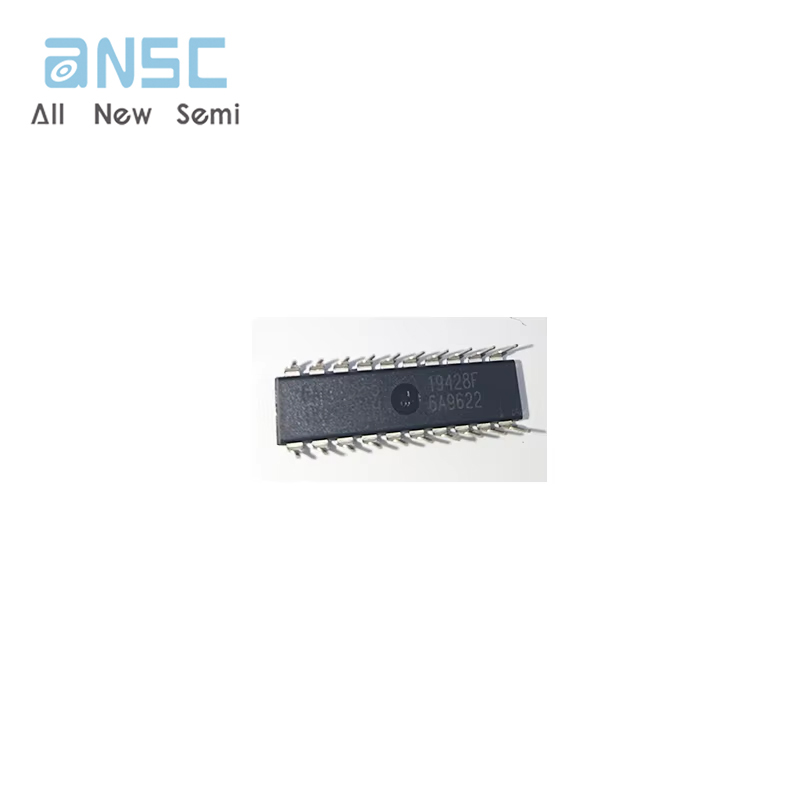

  Actual image of the product

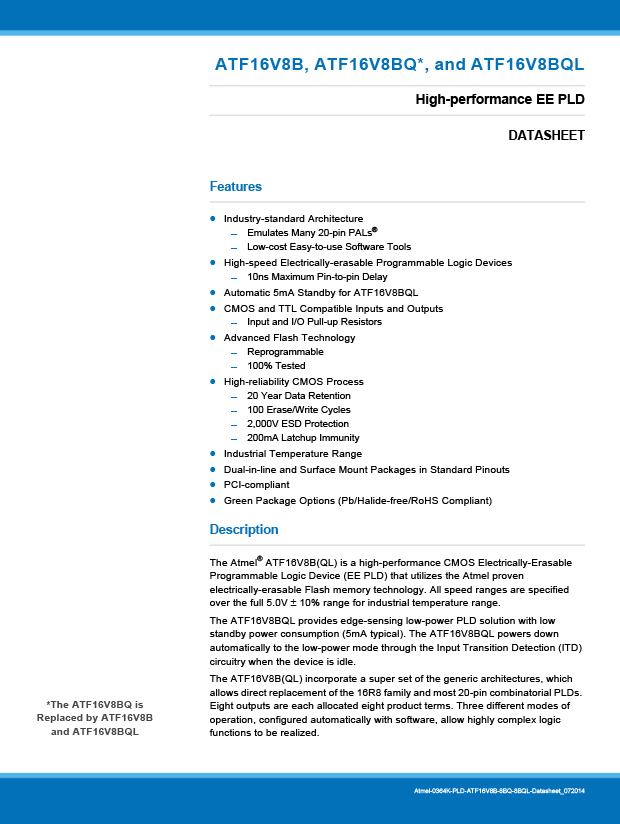

Product datasheet

For more information, please download
