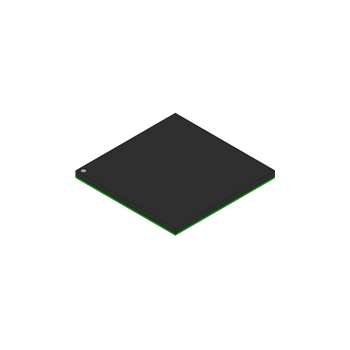

Hot selling MPC855TZQ80D4 Microprocessor IC MPC85xx 1 Core, 32-Bit 80MHz 357-PBGA

Product Descriptions

The MPC860 power quad integrated communications controller (PowerQUICC™) is a versatile one-chip integrated microprocessor and peripheral combination designed for a variety of controller applications. It particularly excels in communications and networking systems. The PowerQUICC unit is referred to as the MPC860 in this hardware specification.

The MPC860 implements Power Architecture™ technology and contains a superset of Freescale’s MC68360 quad integrated communications controller (QUICC), referred to here as the QUICC, RISC communications proccessor module (CPM). The CPU on the MPC860 is a 32-bit core built on Power Architecture technology that incorporates memory management units (MMUs) and instruction and data caches.. The CPM from the MC68360 QUICC has been enhanced by the addition of the inter-integrated  controller (I2C) channel. The memory controller has been enhanced, enabling the MPC860 to support any type of memory, including high-performance memories and new types of DRAMs. A PCMCIA socket controller supports up to two sockets. A real-time clock has also been integrated.

Product Features

The following list summarizes the key MPC860 features:

• Embedded single-issue, 32-bit core (implementing the Power Architecture technology) with thirty-two 32-bit general-purpose registers (GPRs)

— The core performs branch prediction with conditional prefetch without conditional execution.

— 4- or 8-Kbyte data cache and 4- or 16-Kbyte instruction cache (see Table 1)

– 16-Kbyte instruction caches are four-way, set-associative with 256 sets; 4-Kbyte instruction caches are two-way, set-associative with 128 sets.

– 8-Kbyte data caches are two-way, set-associative with 256 sets; 4-Kbyte data caches are two-way, set-associative with 128 sets.

– Cache coherency for both instruction and data caches is maintained on 128-bit (4-word) cache blocks.

– Caches are physically addressed, implement a least recently used (LRU) replacement algorithm, and are lockable on a cache block basis.

— MMUs with 32-entry TLB, fully-associative instruction, and data TLBs

— MMUs support multiple page sizes of 4-, 16-, and 512-Kbytes, and 8-Mbytes; 16 virtual address spaces and 16 protection groups

— Advanced on-chip-emulation debug mode

• Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits)

• 32 address lines

• Operates at up to 80 MHz

• Memory controller (eight banks)

— Contains complete dynamic RAM (DRAM) controller

— Each bank can be a chip select or RAS to support a DRAM bank.

— Up to 15 wait states programmable per memory bank

— Glueless interface to DRAM, SIMMS, SRAM, EPROM, Flash EPROM, and other memory devices

— DRAM controller programmable to support most size and speed memory interfaces

— Four CAS lines, four WE lines, and one OE line

— Boot chip-select available at reset (options for 8-, 16-, or 32-bit memory)

— Variable block sizes (32 Kbytes to 256 Mbytes)

— Selectable write protection

— On-chip bus arbitration logic

• General-purpose timers

— Four 16-bit timers or two 32-bit timers

— Gate mode can enable/disable counting

— Interrupt can be masked on reference match and event capture.
