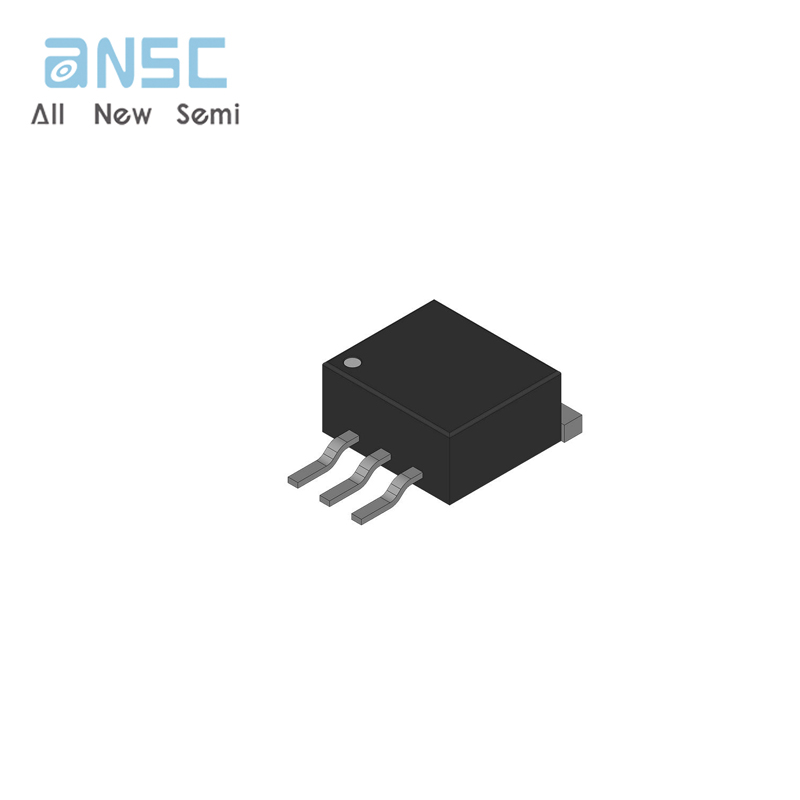

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original FAN1112D 1A 1.2V Low Dropout Linear Regulator
Manufacturer Product Number
FAN1112D
Description
FAN1112D 1A 1.2V Low Dropout Linear Regulator
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Overview FAN1112 is a 1.2V low-dropout three-terminal regulator with an output current capability of 1A. The device is optimized for low-voltage applications where transient response and minimum input voltage are critical. The current limit is fine-tuned to ensure a specified output current and a controlled short-circuit current. The on-chip thermal limit function prevents excessive junction temperatures due to a combination of overload and ambient temperature. Unlike PNP-type regulators, where up to 10% of the output current is wasted as quiescent current, FAN1112 quiescent current flows into the load, increasing efficiency. FAN1112 regulators are available in industry-standard SOT-223 and TO-252 (DPAK) power packages. |
| Product Features Low pressure differential Load adjustment rate: 0.05% typical Fine-tune the current limit On-chip heat limitation Standard SOT-223 and TO-252 packages Fixed 1.2V at three ends |
| Applications: Switching power supply rear regulator Low voltage processor power supply |
Product Description
| Properties | Parameter values |
| PART# | FAN1112D |
| Product catalogue | Linear Voltage Regulators (LDOs) |
| Output type | Fixed |
| Operating voltage | 18V |
| Output voltage | 1.2V |
| Output current | 1A |
| Power Ripple Rejection Ratio (PSRR) | 72dB@(120Hz) |
| Differential pressure | 1.2V@(1A) |
| Quiescent Current (Iq) | 4mA |
| Noise | 0.003%Vout |
| Characteristics | overcurrent protection; Overheating protection |
| Operating temperature | 0℃~+125℃@(Tj) |
| Output polarity | Positive electrode |
| Number of output channels | 1 |
Actual image of the product
