Hot sale Original AD5696RBCPZ-RL7 IC DAC 16 Bit Digital to Analog Converters (DAC) 4 D/A Converters String DAC 16-WFQFN
Manufacturer
Manufacturer Product Number
AD5696RBCPZ-RL7
Description
Original AD5696RBCPZ-RL7 IC DAC 16 Bit Digital to Analog Converters (DAC) 4 D/A Converters Voltage - Buffered I2C External, Internal String DAC 16-WFQFN Exposed Pad, CSP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The AD5696RBCPZ-RL7 is a 16-bit, 4-channel, nanoDAC+? digital-to-analog converter (DAC) . This surface-mount device is designed for high-performance data acquisition applications, offering a conversion rate of 25 Msps and a signal-to-noise ratio (SNR) of 90 dB.
Product Features
· 16-bit resolution with ±1 LSB INL and DNL
· 4-channel configuration for simultaneous conversion
· I2C interface for easy integration with microcontrollers
· External and internal reference options
· Unipolar output with a maximum output voltage of 5V
· Low power consumption of 7.2mW
· Operating temperature range of -40°C to 105°C
Product Applications
· Primary applications:
· High-speed data acquisition systems
· Precision measurement and testing equipment
· Industrial control systems
· Secondary applications:
· Audio and video processing
· Medical devices
· Aerospace and defense systems
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD5696RBCPZ-RL7 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | nanoDAC+® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Programmable | Not Verified |
| Number of Bits | 16 |
| Number of D/A Converters | 4 |
| Settling Time | 8µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Mounting Type | Surface Mount |
| Base Product Number | AD5696 |

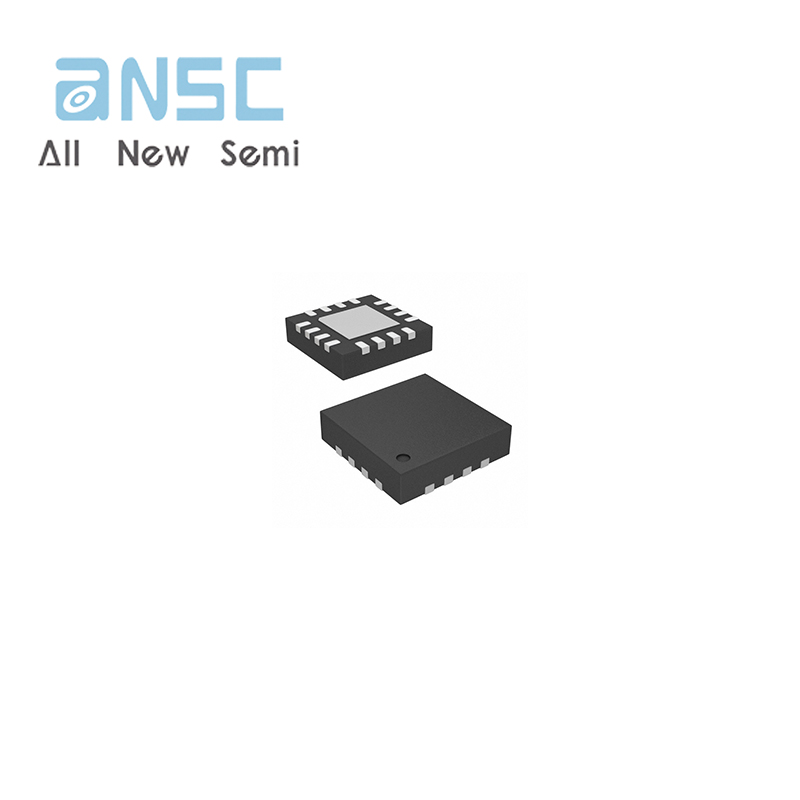

Product Photos

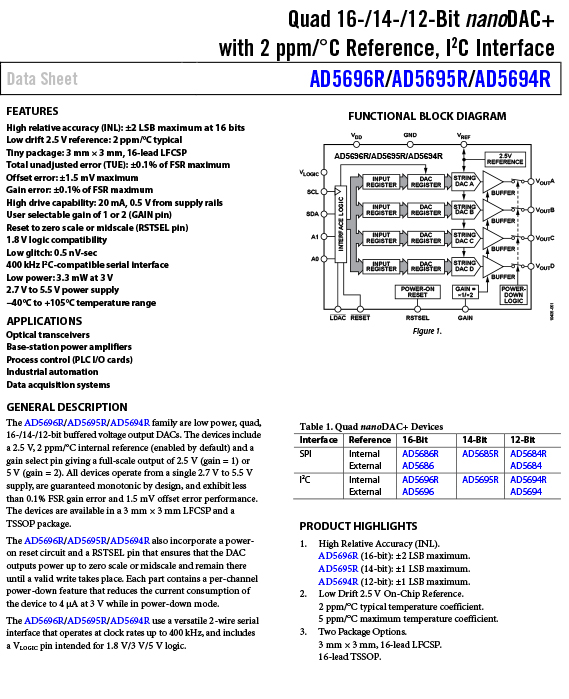

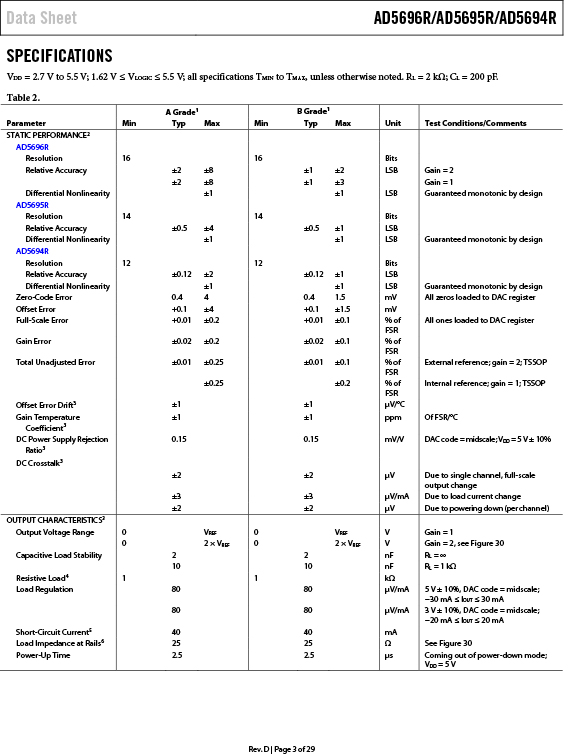

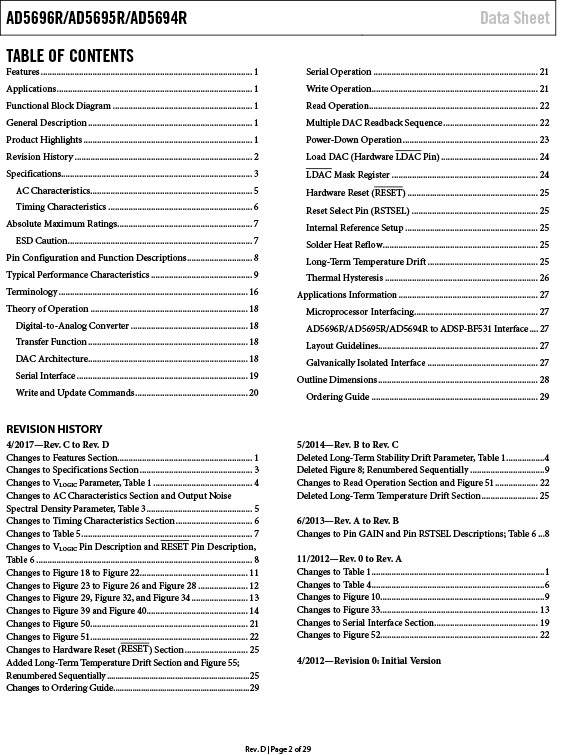

Product datasheet
For more information, please download
