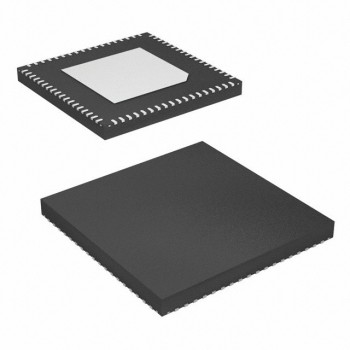

Original ADAU1450WBCPZ-R IC AUDIO PROCESSOR 72LFCSP Embedded DSP (Digital Signal Processors) Surface Mount 72-LFCSP-VQ (10x10)

Product Features

Qualified for automotive applications

Fully programmable audio DSP for enhanced sound processing

Features SigmaStudio, a proprietary graphical programming

tool for the development of custom signal flows

Up to 294.912 MHz, 32-bit SigmaDSP core at 1.2 V

Upto 6144 SIMDinstructions per sample at 48 kHz

Up to 40 kWords of parameter/data RAM

Up to 800 ms digital audio delay pool at 48 kHz

Audio input/output and routing

4 serial input ports, 4 serial output ports

48-channel, 32-bit digital input/output up to a sample rate of 192 kHz

Flexible configuration for TDM, I2S, left and right justified formats, and PCM

Up to 8 stereo ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR

Stereo S/PDIF input and output (not on the ADAU1450)

Four PDM microphone input channels

Multichannel, byte addressable, TDM serial ports

Clock oscillator for generating master clock from crystal

Integer PLL and flexible clock generators

Integrated die temperature sensor

​

Product Applications

Automotive audio processing

Head units

Navigation systems

Rear seat entertainment systems

DSP amplifiers (sound system amplifiers)

Commercial and professional audio processing

Consumer audio processing

Specifications
