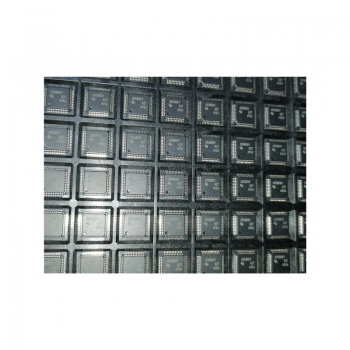

Professional supply Integrated circuit IC ADS809Y 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 48-HTQFP

Product Descriptions

The ADS809 is a high-dynamic range, 12-bit, 80MHz, pipelined Analog-to-Digital Converter (ADC). It includes a high-bandwidth linear track-and-hold that has a low jitter of only 0.5ps rms, leading to excellent Signal-to-Noise Ratio (SNR) performance. The clock input can accept a low-level differential sine wave or square wave signal down to 0.5Vp-p, further improving the SNR performance. It also accepts a single-ended

clock signal and has flexible threshold levels.

The ADS809 has a 2Vp-p differential input range (1Vp-p • 2 inputs) for optimum signal-to-noise ratio. The differential operation gives the lowest even-order harmonic components. A lower input voltage of 1.5Vp-p or 1Vp-p can also be selected using the internal references, further optimizing Spurious-Free Dynamic Range (SFDR). Alternatively, a singleended input range can be used by tying the IN input to the common-mode voltage if desired.

The ADS809 also provides an over-range flag that indicates when the input signal has exceeded the converter’s full-scale range. This flag can also be used to reduce the gain of the front-end signal conditioning circuitry. It also employs digital error-correction techniques to provide excellent differential linearity for demanding imaging applications. The ADS809 is available in a small TQFP-48 PowerPAD™ thermallyenhanced package.

Product Features

● DYNAMIC RANGE:

SNR: 65dB at 10MHz fIN

SFDR: 68dB at 10MHz fIN

● PREMIUM TRACK-AND-HOLD:

Low Jitter: 0.5ps rms

Differential or Single-Ended Inputs

Selectable Full-Scale Input Range

● FLEXIBLE CLOCKING:

Differential or Single-Ended

Accepts Sine or Square Wave Clocking

Down to 0.5Vp-p

Variable Threshold Level

Product Applications

● BASESTATION WIDEBAND RADIOS:

CDMA, GSM, TDMA, 3G, AMPS, and NMT

● TEST INSTRUMENTATION

● CCD IMAGING
