Hot sale original TLMS1100-GS08 LED RED SMD Red 633nm LED Indication - Discrete 2.1V 0603(1608 Metric)

Manufacturer Product Number

TLMS1100-GS08

Description

TLMS1100-GS08 LED RED SMD Red 633nm LED Indication - Discrete 2.1V 0603(1608 Metric)

Package Condition

Tape & Reel (TR)Cut Tape (CT)

Datasheet

TLMS1100-GS08

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

DESCRIPTION

The new 0603 LED series have been designed in the smallest SMD package.

This innovative 0603 LED technology opens the way to

• smaller products of higher performance

• more design in flexibility

• enhanced applications

The 0603 LED is an obvious solution for small-scale, high

power products that are expected to work reliability in an

arduous environment.

FEATURES

• Smallest SMD package 0603 with exceptional brightness 1.6 mm x 0.8 mm x 0.6 mm (L x W x H)

• High reliability lead frame based

• Temperature range -40 °C to +100 °C

• Footprint compatible to 0603 chipled

• Wavelength 570 nm (green), 561 nm (pure green), 589 nm (yellow), 606 nm (orange),633 nm (red)

• AllnGaP and GaN technology

• Viewing angle: extremely wide 160°

• Grouping parameter: luminous intensity, wavelength

• Available in 8 mm tape

• Compatible to IR reflow soldering

• Preconditioning according to JEDEC® level 2

• AEC-Q101 qualified

Product Description

Type#	Description
ANSC PART#	ANSC- TLMS1100-GS08
Category	Optoelectronics
Category	LED Indication - Discrete
Mfr	/
Series	-
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	/
Part Status	/
Color	Red
Configuration	Standard
Lens Color	-
Lens Transparency	-
Millicandela Rating	63mcd
Lens Style	Rectangle with Flat Top
Lens Size	1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ)	2.1V
Current - Test	20mA
Viewing Angle	160°
Mounting Type	Surface Mount
Wavelength - Dominant	633nm
Wavelength - Peak	645nm
Features	-
Grade	Automotive
Qualification	AEC-Q101
Package / Case	0603 (1608 Metric)
Supplier Device Package	603
Size / Dimension	1.60mm L x 0.80mm W
Height (Max)	0.65mm
Base Product Number	TLMS1100

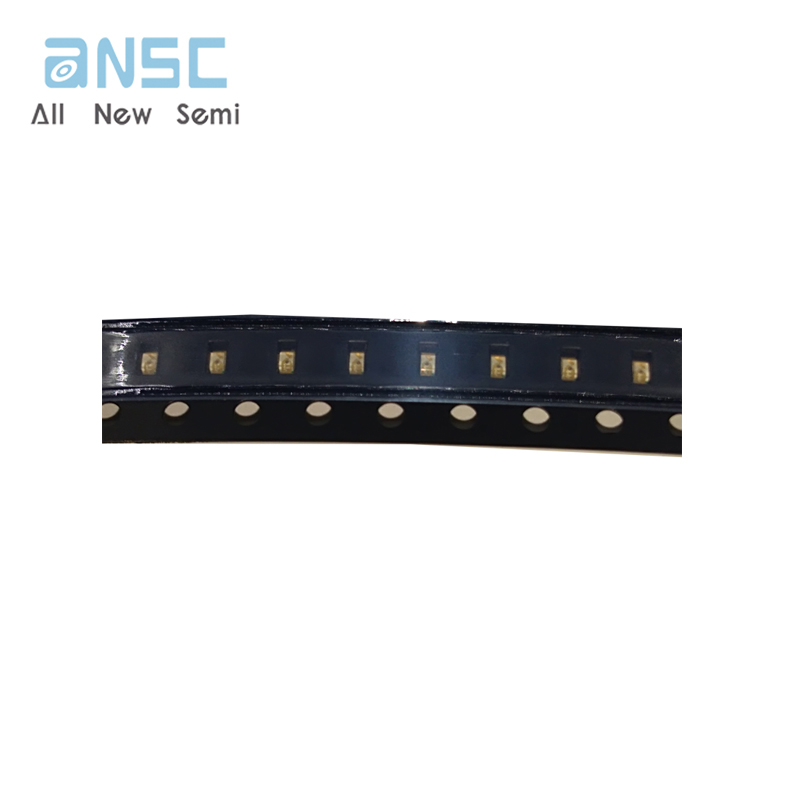

Actual image of the product

TLMS1100-GS08

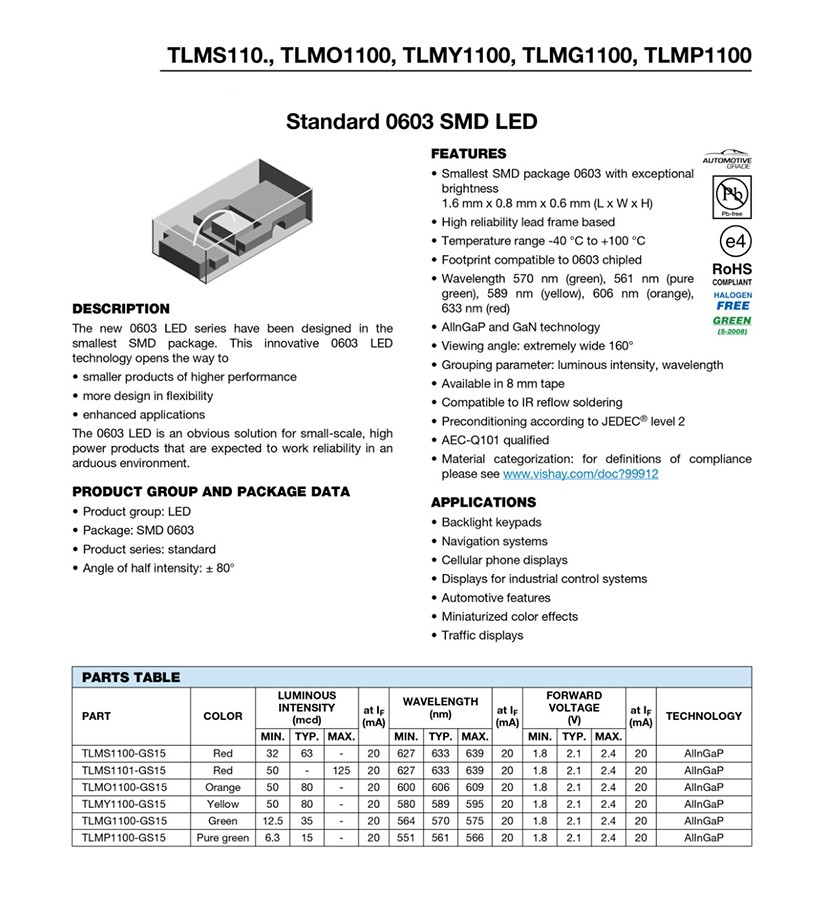

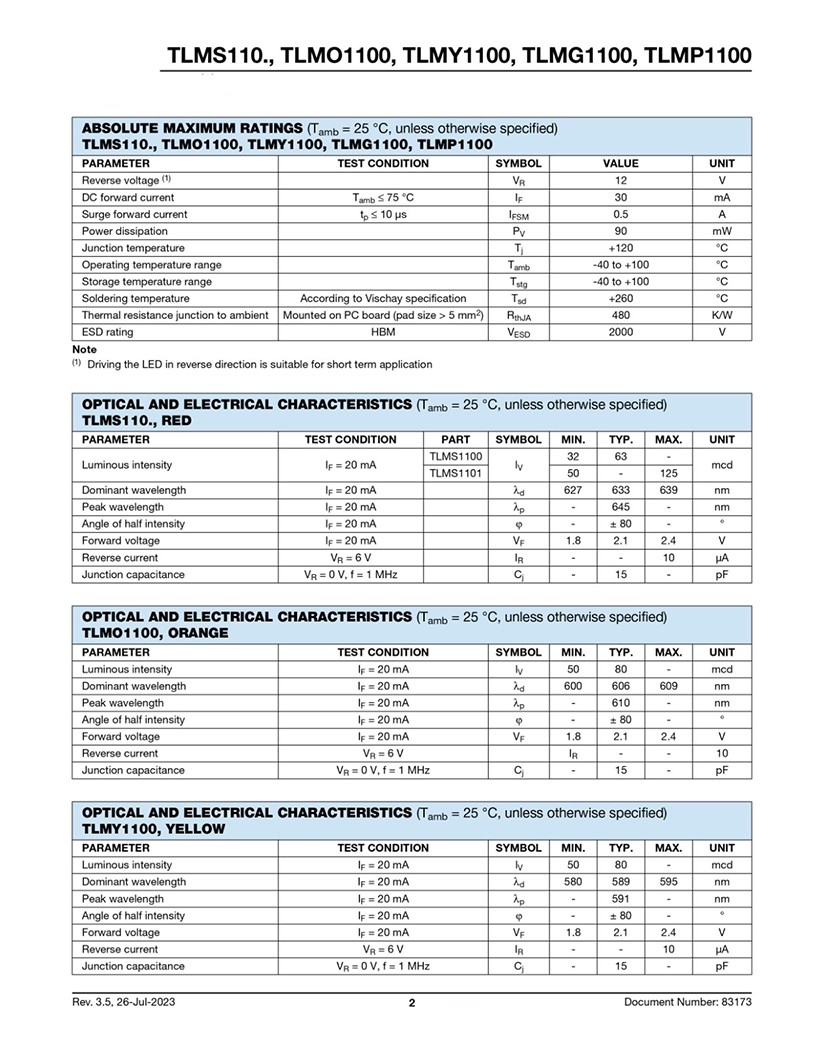

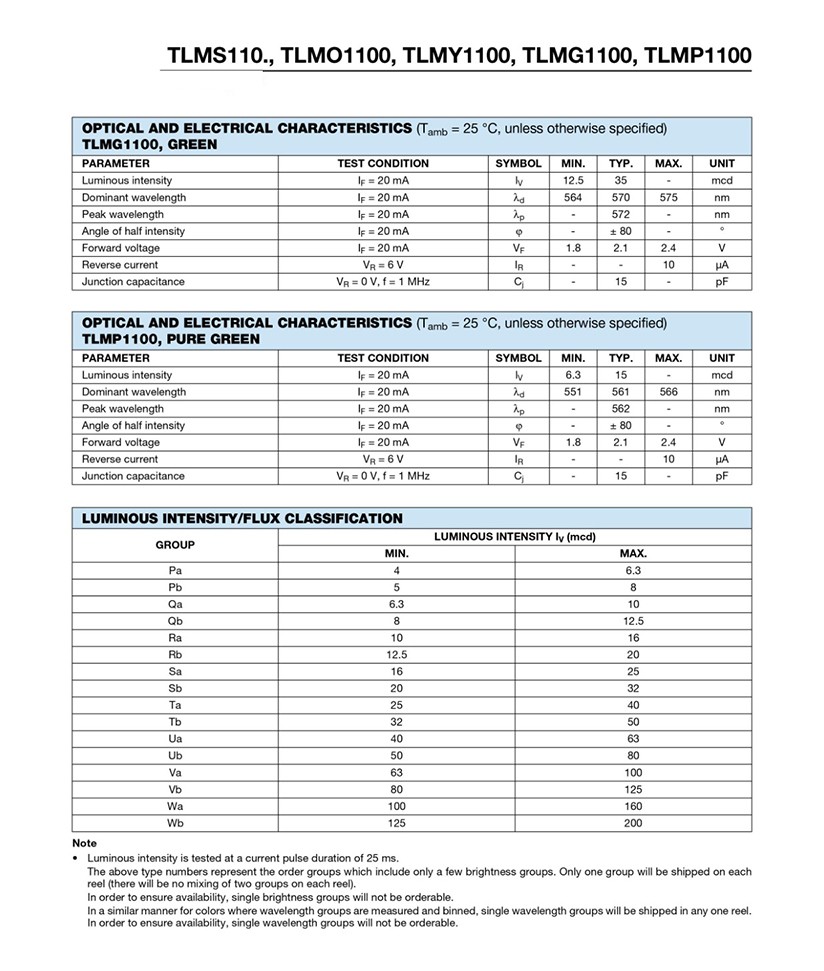

Product datasheet

For more information, please download
