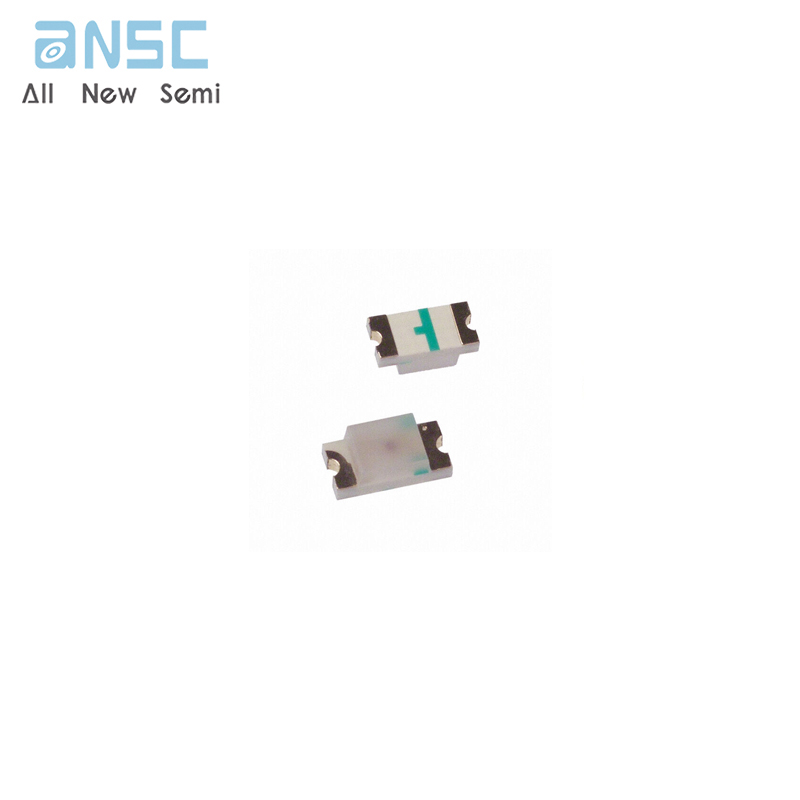

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce HSMD-C150 Orange 604nm LED Indication - Discrete 2.2V 1206 spot stock
Manufacturer Product Number
HSMD-C150
Description
HSMD-C150 Orange 604nm LED Indication - Discrete 2.2V 1206 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The HSMx-C150 has the industry-standard 3.2 mm ×1.6 mm footprint,which is excellent for all-around use .TheHSMx-C170 has the widely used 2.0 mm × 1.25 mmfootprint with a 0.8-mm profile . The HSMx-C177 has thewidely used 2.0 mm × 1.25 mm footprint with a 0.4-mmprofile . The HSMx-C19x series has the industry-standard1.6 mm × 0.8 mm footprint with a varying profile to suitdesigners needs:the HSMx-C190 has a 0.8-mm profile,theHSMx-C191 has a low profile of 0.6 mm, and theHSMx-C197 has an ultra-low profile of 0 .4 mm . This familywith its thin profile and wide viewing angle makes this LEDexceptional for backlighting applications .
Product Features
Small size
Industry-standard footprint
Compatible with IR solder
Diffused optics
Operating temperature range of –40°C to +85°C
Right angle and reverse mount package available
Various colors available
Available in 8-mm tape on 7-in . (178-mm) diameter reels
Product Applications
Keypad backlighting
Push-button backlighting
LCD backlighting
Symbol backlighting
Front-panel indicator
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HSMD-C150 |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Color | Orange |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 8mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 604nm |
| Wavelength - Peak | 605nm |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm |
| Base Product Number | HSMD-C150 |
Product Photos
For more product information, please download the PDF
