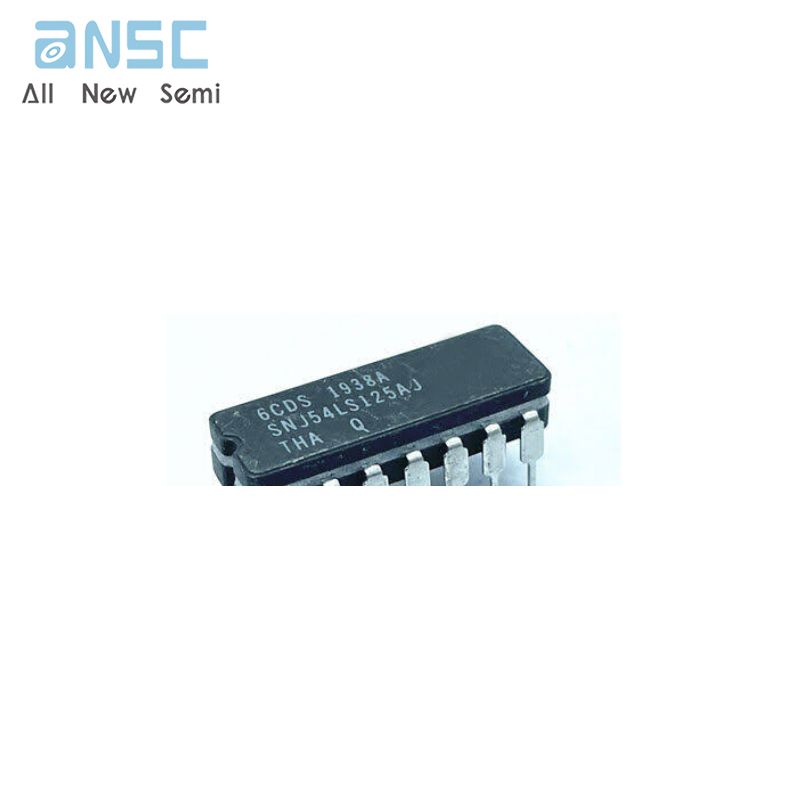

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SNJ54LS125AJ QUADRUPLE BUS BUFFERS WITH 3-STATE OUTPUTS DIP14 spot stock
Manufacturer Product Number
SNJ54LS125AJ
Description
SNJ54LS125AJ QUADRUPLE BUS BUFFERS WITH 3-STATE OUTPUTS DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These bus buffers feature three-state outputsthat, when enabled, have the low impedancecharacteristics of a TTL output with additionaldrive capability at high logic levels to permitdriving heavily loaded bus lines without externalpullup resistors . When disabled, both outputtransistors are turned off, presenting ahigh-impedance state to the bus so the output willact neither as a significant load nor as a driver.The’125 and’LS125A devices’ outputs are disabledwhen G is high . The’126 and’LS126A devices’outputs are disabled when G is low .
Product Features
Quad Bus Buffers
3-State Outputs
Separate Control for Each Channel
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SNJ54LS125AJ |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Active |
| Base Product Number | 54LS125 |

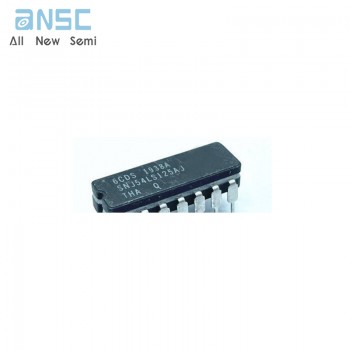

Product Photos
For more product information, please download the PDF
