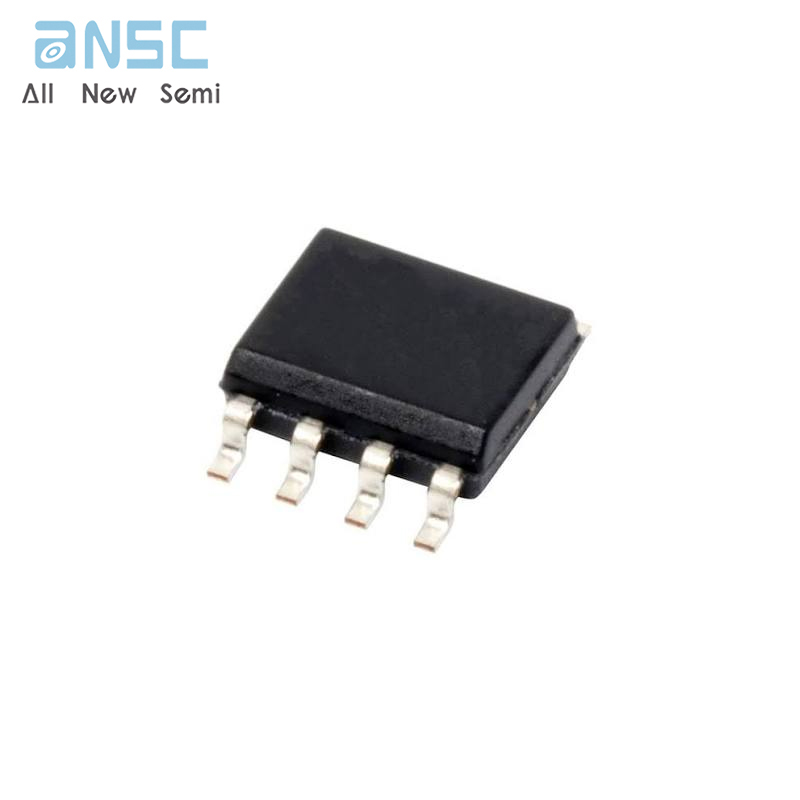

Hot-selling and scarce LTC1263CS8 12V, 60mA Flash Memory Programming Supply SOP8 spot stock
Manufacturer Product Number
LTC1263CS8
Description
LTC1263CS8 12V, 60mA Flash Memory Programming Supply SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LTC ®1263 is a regulated 12V, 60mA output DC/DC converter. It provides the 12V ±5% output necessary to program double byte-wide flash memories. The output provides 60mA from input voltages as low as 4.75V without using any inductors.Only four external capacitors are required to complete an extremely small, surface mountable circuit.The output can be momentarily shorted to ground without damaging the part.
The active high TTL compatible Shutdown pin can be directly connected to a microprocessor. In the shutdown mode, the supply current typically drops to 0.5µA.
The LTC1263 is available in an 8-pin SO package.
Product Features
■ Guaranteed 60mA Output
■ Regulated 12V ±5% Output Voltage
■ No Inductors
■ Supply Voltage Range: 4.75V to 5.5V
■ ICC 0.5µA Typ in Shutdown
■ Low Power: ICC = 300µA
■ 8-Pin SO Package
■ Same Pinout as LTC1262 and MAX662
Product Applications
■ 12V Flash Memory Programming Supplies
■ Compact 12V Op Amp Supplies
■ Battery-Powered Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LTC1263CS8 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Discontinued at DigiKey |
| Applications | Converter, Programming Supply |
| Voltage - Input | 4.75V ~ 5.5V |
| Number of Outputs | 1 |
| Voltage - Output | 12V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | LTC1263 |
Product Photos
For more product information, please download the PDF
