Hot sale Original ATSAMD21E18A-MU IC MCU Functional Safety (FuSa) Microcontroller IC 32Bit Single-Core 48MHz 256KB FLASH 32-VQFN
Manufacturer Product Number
ATSAMD21E18A-MU
Description
ATSAMD21E18A-MU IC MCU 32BIT 256KB FLASH 32QFN ARM® Cortex®-M0+ SAM D21E, Functional Safety (FuSa) Microcontroller IC 32-Bit Single-Core 48MHz 256KB (256K x 8) FLASH 32-VQFN (5x5)
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| ATSAM3U4/2/1 Description Atmels SAM3U series is a member of a family of Flash microcontrollers based on the high performance 32-bit ARM Cortex-M3 RISC processor. It operates at a maximum speed of 96 MHz and features up to 256 Kbytes of Flash and up to 52 Kbytes of SRAM. The peripheral set includes a High Speed USB Device port with embedded transceiver, a High Speed MCI for SDIO/SD/MMC, an External Bus Interface with NAND Flash controller, up to 4xUSARTs (SAM3U1C/2C/4C have 3), up to 2xTWIs (SAM3U1C/2C/4C have 1), up to 5xSPIs SAM3U1C/2C/4C have 4), as well as 4xPWM timers, 3xgeneral purpose 16-bit timers, an RTC, a 12-bit ADC and a 10-bit ADC. Features • Core – ARM® Cortex®-M3 revision 2.0 running at up to 96 MHz – Memory Protection Unit (MPU) – Thumb®-2 instruction set • Memories – From 64 to 256 Kbytes embedded Flash, 128-bit wide access, memory accelerator, dual bank – From 16 to 48 Kbytes embedded SRAM with dual banks – 16 Kbytes ROM with embedded bootloader routines (UART, USB) and IAP routines – Static Memory Controller (SMC): SRAM, NOR, NAND support. NAND Flash controller with 4 Kbytes RAM buffer and ECC • System – Embedded voltage regulator for single supply operation – POR, BOD and Watchdog for safe reset – Quartz or resonator oscillators: 3 to 20 MHz main and optional low power 32.768 kHz for RTC or device clock. – High precision 8/12 MHz factory trimmed internal RC oscillator with 4 MHz Default Frequency for fast device startup – Slow Clock Internal RC oscillator as permanent clock for device clock in low power mode – One PLL for device clock and one dedicated PLL for USB 2.0 High Speed Device – Up to 17 peripheral DMA (PDC) channels and 4-channel central DMA • Low Power Modes – Sleep and Backup modes, down to 2.5 µA in Backup mode – Backup domain: VDDBU pin, RTC, 32 backup registers – Ultra low power RTC: 0.6 µA • Peripherals – USB 2.0 Device: 480 Mbps, 4-kbyte FIFO, up to 7 bidirectional Endpoints, dedicated DMA – Up to 4 USARTs (ISO7816, IrDA®, Flow Control, SPI, Manchester support) and one UART – Up to 2 TWI (I2C compatible), 1 SPI, 1 SSC (I2S), 1 HSMCI (SDIO/SD/MMC) – 3-Channel 16-bit Timer/Counter (TC) for capture, compare and PWM – 4-channel 16-bit PWM (PWMC) – 32-bit Real Time Timer (RTT) and RTC with calendar and alarm features – 8-channel 12-bit 1MSPS ADC with differential input mode and programmable gain stage, 8-channel 10-bit ADC • I/O – Up to 96 I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and on-die Series Resistor Termination – Three 32-bit Parallel Input/Outputs (PIO) • Packages – 100-lead LQFP, 14 x 14 mm, pitch 0.5 mm – 100-ball TFBGA, 9 x 9 mm, pitch 0.8 mm – 144-lead LQFP, 20 x 20 mm, pitch 0.5 mm – 144-ball LFBGA, 10 x 10 mm, pitch 0.8 mm |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ATSAMD21E18A-MU |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Original |
| Series | SAM D21E, Functional Safety (FuSa) |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 10x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| Base Product Number | ATSAMD21 |

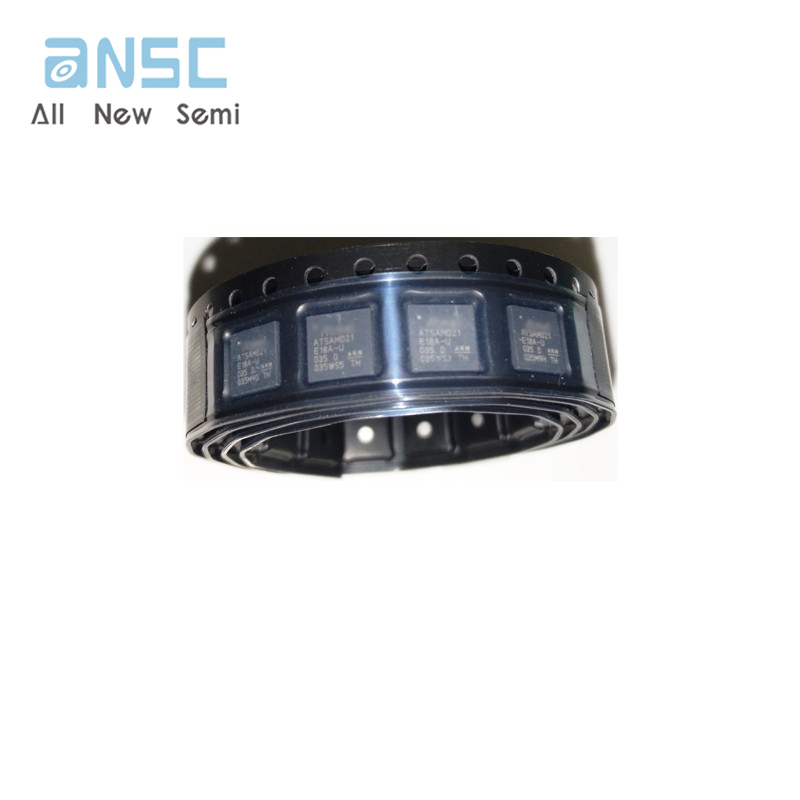

Product Photos

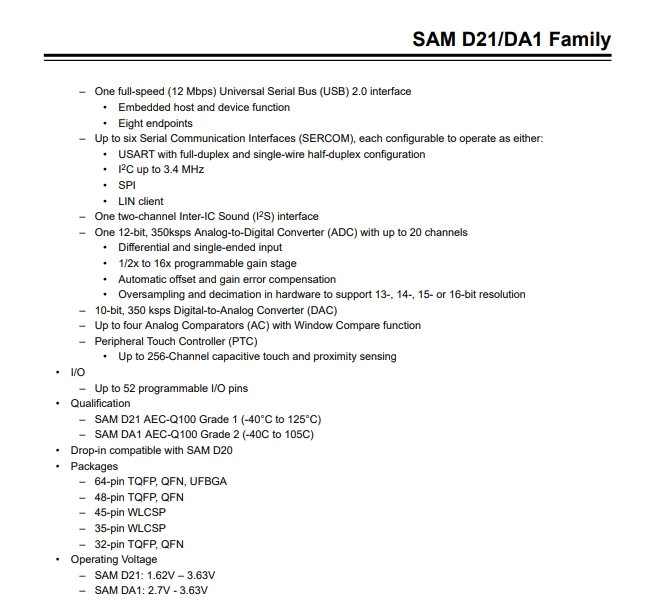

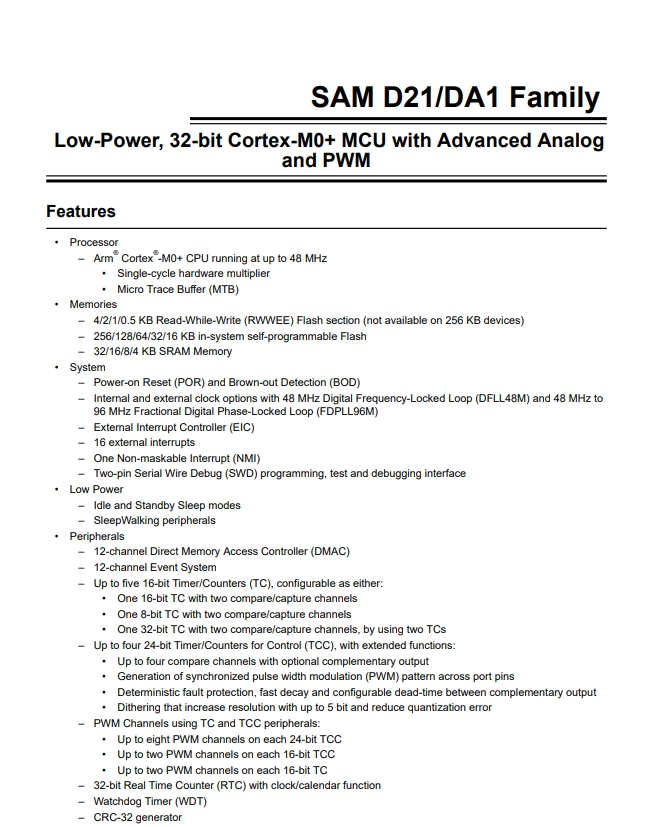

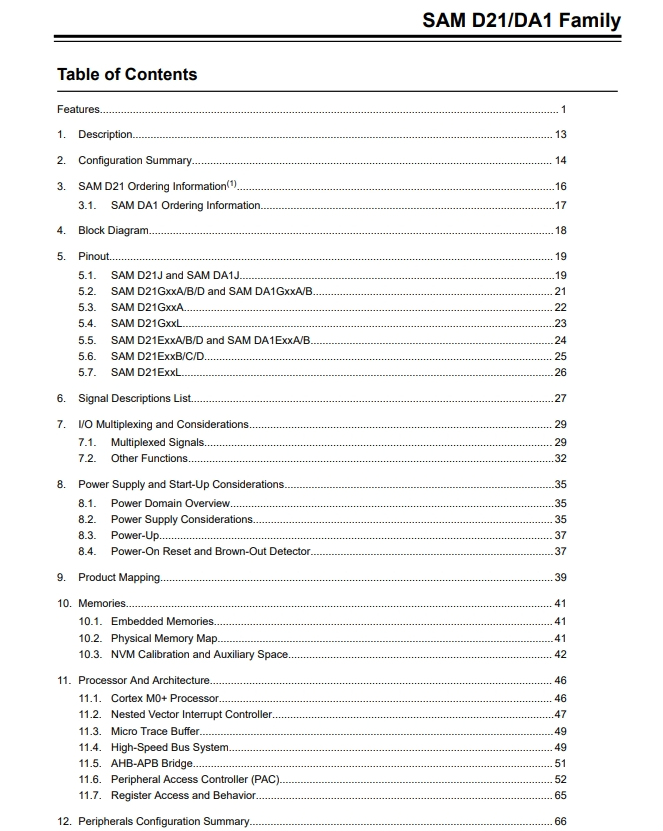

Product datasheet
For more information, please download
