ICS8305AGILFT LOW SKEW, 1-TO-4, MULTIPLEXED DIFFERENTIAL/LVCMOS-TO-LVCMOS/LVTTL FANOUT BUFFER TSSOP spot stock

Product Descriptions

The ICS8305I is a low skew, 1-to-4, Differential/ LVCMOS-to-LVCMOS/LVTTL Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from  ICS. The

ICS8305I has selectable clock inputs that accept either differential or single ended input levels.The clock enable is internally synchronized to eliminate runt pulses on the outputs during asynchronous assertion/deassertion of the clock enable pin.Outputs are forced LOW when the clock is disabled.A separate output enable pin controls whether the outputs are in the active or high impedance state.

Guaranteed output and part-to-part skew characteristics make the ICS8305I ideal for those applications demanding well defined performance and repeatability.

Product Features

• 4 LVCMOS/LVTTL outputs

• Selectable differential or LVCMOS/LVTTL clock inputs

• CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL

• LVCMOS_CLK supports the following input types:LVCMOS, LVTTL

•  Maximum output frequency: 350MHz

•  Output skew: 40ps (maximum)

•   Part-to-part skew: 700ps (maximum)

•  Additive phase jitter, RMS: 0.04ps (typical)

•  3.3V core,3.3V,2.5V or 1.8V output operating supply

•  -40°C to 85°C ambient operating temperature

•  Lead-Free package fully RoHS compliant

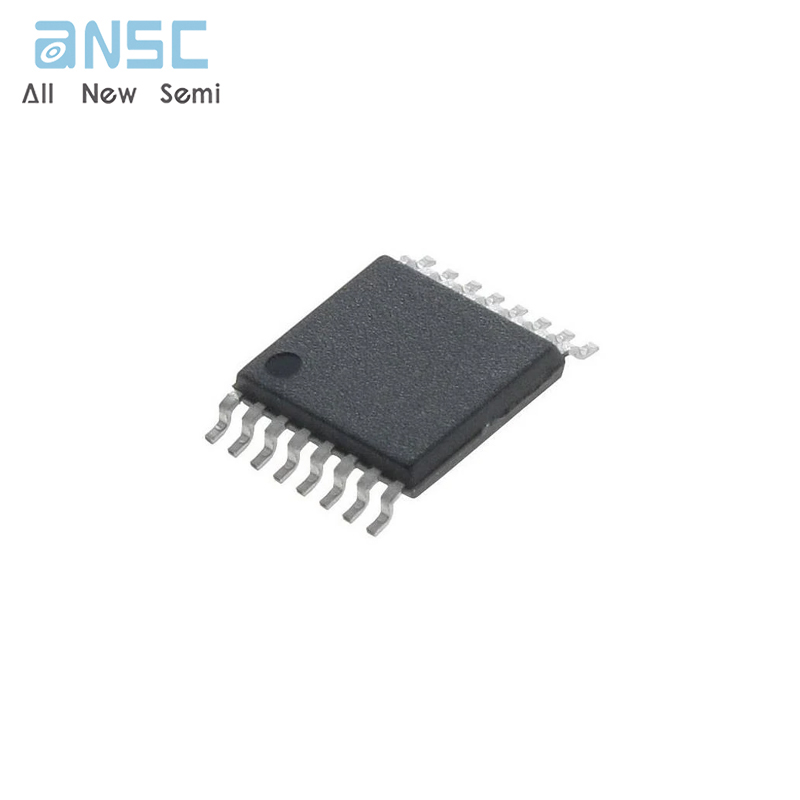

Product Photos

For more product information, please download the PDF
